Xtreme Power Conversion

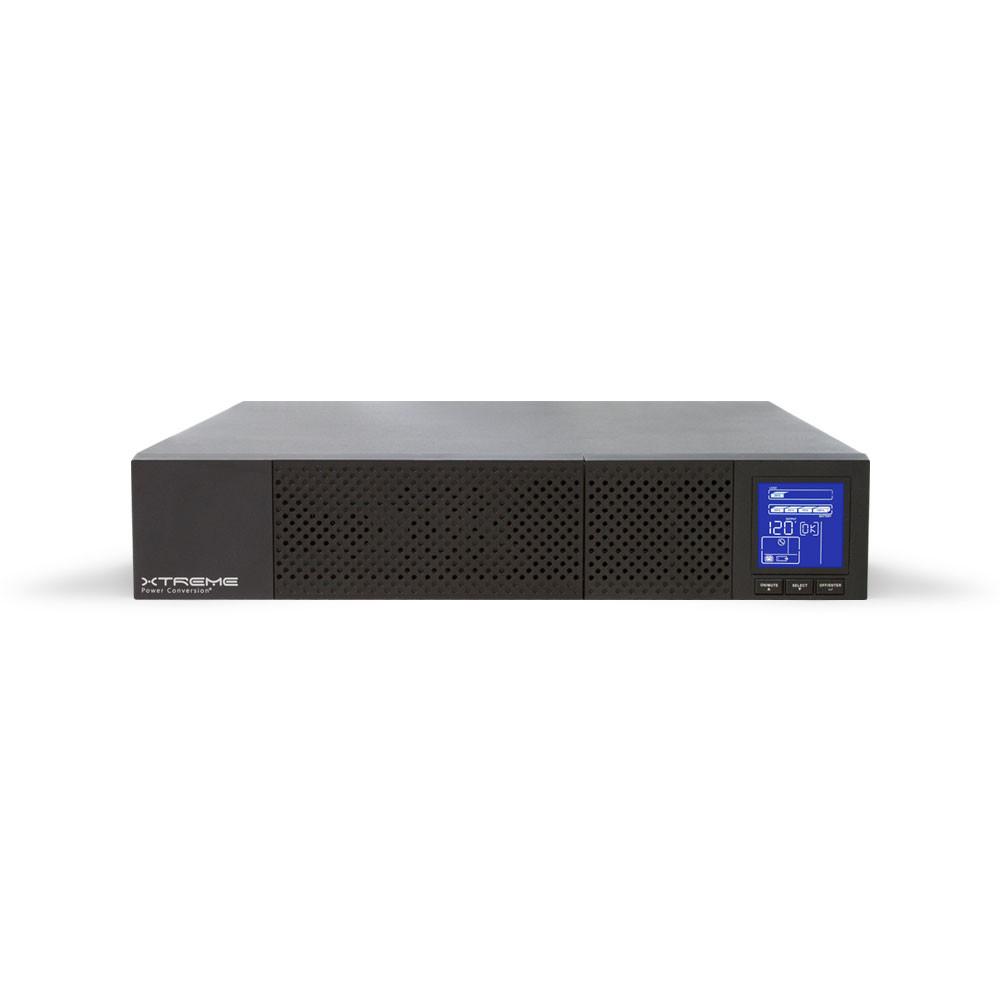

Xtreme Power Conversion P91 Series P91-3000 VA/2700W 120V 2U UPS
Xtreme Power Conversion P91 Series P91-3000 VA/2700W 120V 2U UPS
Regular price
$ 2,299.00 USD
Regular price
$ 2,300.00 USD
Sale price
$ 2,299.00 USD
Unit price
/
per
Couldn't load pickup availability
Xtreme P90 Series P91-3000 VA/2700W 120V 2U L5-30P / (1) L5-30R (4) 5-15/20R UPS
Deliver clean, continuous power to IT equipment
during power disturbances
Protect your equipment from blackouts, brownouts, sags, surges, and noise interference with the Xtreme Power P91, a true online UPS that delivers continuous high-quality AC power to servers and network equipment with no break when transferring to battery. Available in both tower and rack-mount form factors, the P90 offers the lowest total cost of ownership by cutting energy costs and lowering heat output.
The features and benefits include:
- 0.9 output power factor delivers more real wattage to high density loads
- Small footprint with a slim 2U design
- ECO mode allows for 98% efficient operation and lower energy consumption
- Smart LCD display enables the monitoring of UPS vitals
- Frequency converter allows the P90 to be programmed to convert from 50 to 60Hz or 60Hz to 50Hz
- Multiple communications capability is available through RS-232, USB and Web/SNMP
- Hot swappable batteries for easy battery replacement without interruption to the load
- Maximizes uptime for critical loads and equipment by shedding less critical loads
- The optional XBDM bypass module enables the P91 to be replaced or serviced without interruption of power to attached loads
- Scalable up to four battery packs for extended runtimes
- $50,000 load protection policy protects against the damage of connected equipment
| MODEL NUMBER | P91-1000 | P91-1500 | P91-2000 | P91-3000 | P91g-3000 | |
|---|---|---|---|---|---|---|
| INPUT | Capacity | 1000VA (900W) | 1500VA (1350W) | 2000VA (1800W) | 3000VA (2700W) | 3000VA (2700W) |
| Voltage range | 50–150VAC* | 110–300VAC* | ||||
| Frequency | 50/60Hz auto sensing | |||||
| Surge protection | > 800 J | |||||
| OUTPUT | Voltage | 120VAC nominal (100/110/115 selectable)** | 208/220/230/240VAC*** | |||
| Waveform | Pure sine wave, zero transfer time | |||||
| Frequency | 50/60Hz ± 0.5Hz | |||||
| THD (full load) | < 2% | |||||
| Efficiency | 98% ECO mode, 90% online mode | |||||
| Crest factor | 5:1 | |||||
| Overload capacity | ≤ 130% for 2 min; ≤ 200% for 10 sec; >200% for 1 sec | |||||
| BATTERY | Battery type | Sealed, maintenance-free lead acid | ||||
| Battery quantity and size | (2) 12V 9AH | (3) 12V 9AH | (4) 12V 9AH | (6) 12V 9AH | ||
| Typical recharge | < 4 hours to 90% with 1A charger current | |||||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 14.9 x 3.5 in | 17.2 x 18.9 x 3.5 in | 17.2 x 25.8 x 3.5 in | ||
| Weight | 29.1 lbs | 41.7 lbs | 47.4 lbs | 65.7 lbs | ||
| Line cord | 6 ft, 5–15P | 6 ft, 5–15P | 6 ft, 5–20P | 6 ft, L5–30P | 8 ft, C19 to L6-20P | |
| Receptacles | (8) NEMA 5–15R | (8) NEMA 5–15/20R | (1) NEMA L5–30R + (4) NEMA 5–15/20R | (1) IEC C19 + (6) IEC C13 | ||
| OPTIONAL BATTERY PACKS | Model number | N/A | P90-BP48 | P90-BP72 | ||
| Dimensions (W x D x H) | N/A | 17.2 x 18.9 x 3.5 in | 17.2 x 23.6 x 3.5 in | |||
| Weight | N/A | 74.6 lbs | 104.4 lbs | |||
| Battery quantity and size | N/A | (8) 12V 9AH / 48V | (12) 12V 9AH / 72V | |||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | ||||
| Audible noise | < 45dBA | |||||
| Altitude | 11,500 ft above sea level | |||||
| APPROVALS | UL, cUL, RoHS | CE, RoHS | ||||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | |||||
| COMMUNICATIONS INTERFACE | RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | |||||
| INCLUDED IN BOX | Software CD, horizontal brackets, tower pedestals, user manual | |||||
| AVAILABLE OPTIONS | 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket | |||||
