FGC UPS Systems

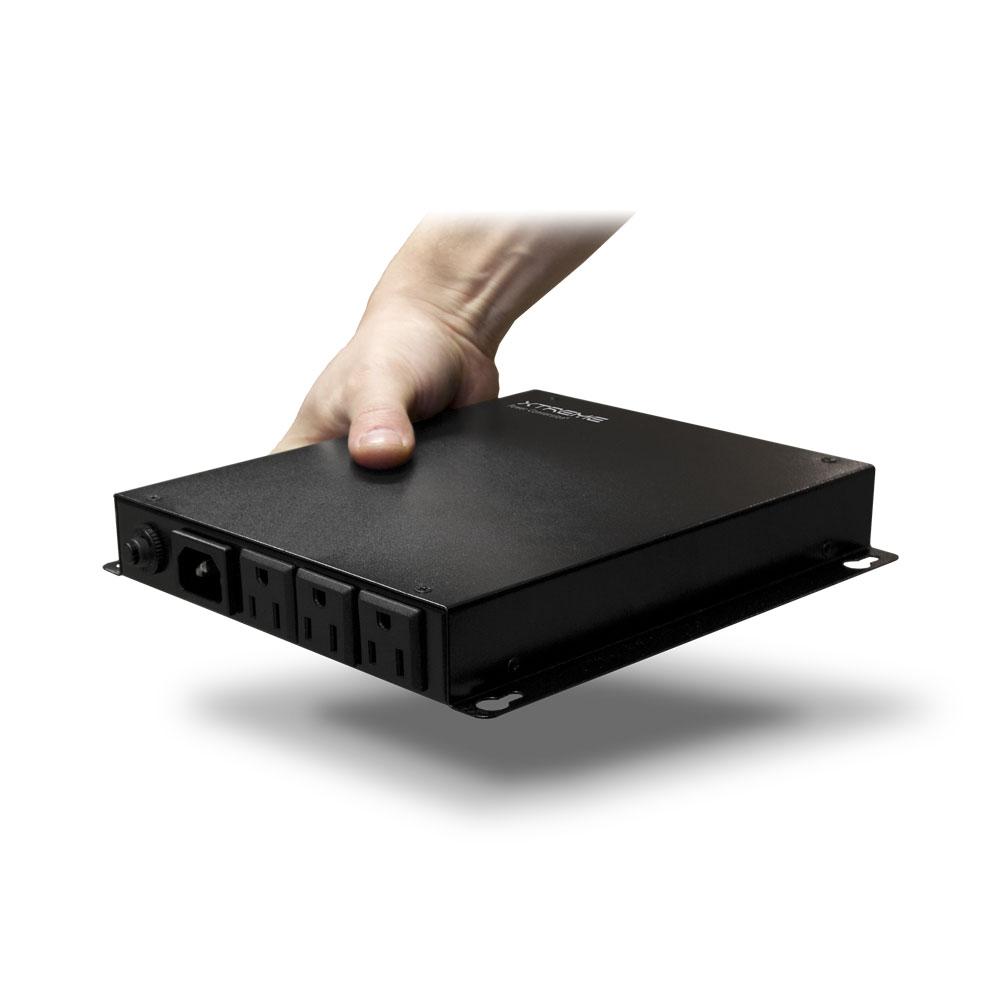

Xtreme J60i-350 90000472 350VA / 200W 230V Lithium Ion UPS Back UP

Xtreme J60i-350 90000472 350VA / 200W 230V Lithium Ion UPS Back UP

$ 373.15 USD
$ 510.00 USD $ 373.15 USD
Sale Sold out
Xtreme J60i-350 90000472 350VA / 200W 120V Lithium Ion UPS Back UP
C-14 in, 3ft (3) C-13R out.

Xtreme J60 advanced design combines the benefits of lithium powered UPS and advanced surge suppression technology. Slim form factor (just 1.25”), wall mounting, and easy access receptacles make J60 ideal for mounting behind thin display screens in used in hotels, restaurants, hospitals, campuses, airports and other commercial areas.

While J60’s compact design is appealing to the digital signage industry, it is also excellent for providing protection to kiosks, gaming machines, computers, point-of-sale equipment, and small printers.

Product Snapshot

  • Slim and light weight (1.25” and 3.4 lbs) the J60 mounts easily behind flat panel displays
  • Power outage protection – up to 20 minutes with 60W load
  • UL-1778, cTUVus, FCC, and RoHS (J60 only)
  • Primary applications: digital signage, kiosks, gaming machines, and Point of Sale (POS)
  • 3 years electronics, 3 years battery warranty (USA and Canada)
MODEL NUMBER J60-350 J60i-350
CAPACITY Power rating 350VA (200W)
INPUT Voltage 120VAC 230VAC
Frequency 50/60Hz
OUTPUT Voltage 120VAC 230VAC
Waveform (normal) Sine wave
Waveform (battery) Simulated sine wave
Frequency 50/60Hz
Surge suppression 300 joules
BATTERY Battery type Lithium Iron Phosphate (LiFePo4)
Battery quantity and size (8) 18650 cells, LiFePo4
Battery runtime (est) 6 min at 100% load; 14 min at 50% load
PHYSICAL Dimensions (W x D x H) 6.9 x 8.5 x 1.25 in
Weight 3.4 lbs
Line cord C13 to 5–15P C14 inlet
Receptacles (3) 5–15R (2) IEC C17
ENVIRONMENT Temperature 32–104°F (0–40°C)
Humidity 0–90%
Altitude 11,500 ft above sea level
APPROVALS UL-1778, cTUVus, FCC, and RoHS (J60 only)
WARRANTY 3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE USB
AVAILABLE OPTIONS Optional line cord with offset right angle 5–15P 18 in or 6ft
View full details
