Xtreme Power Conversion

Xtreme J60-600 90000776 600VA / 360W 120V Lithium Ion UPS Back UP

Xtreme J60-600 90000776 600VA / 360W 120V Lithium Ion UPS Back UP

$ 599.99 USD
$ 749.00 USD $ 599.99 USD
Sale Sold out
Xtreme J60-350 90000465 350VA / 200W 120V Lithium Ion UPS Back UP
5-15P in, 3ft (3) 5-15R out.

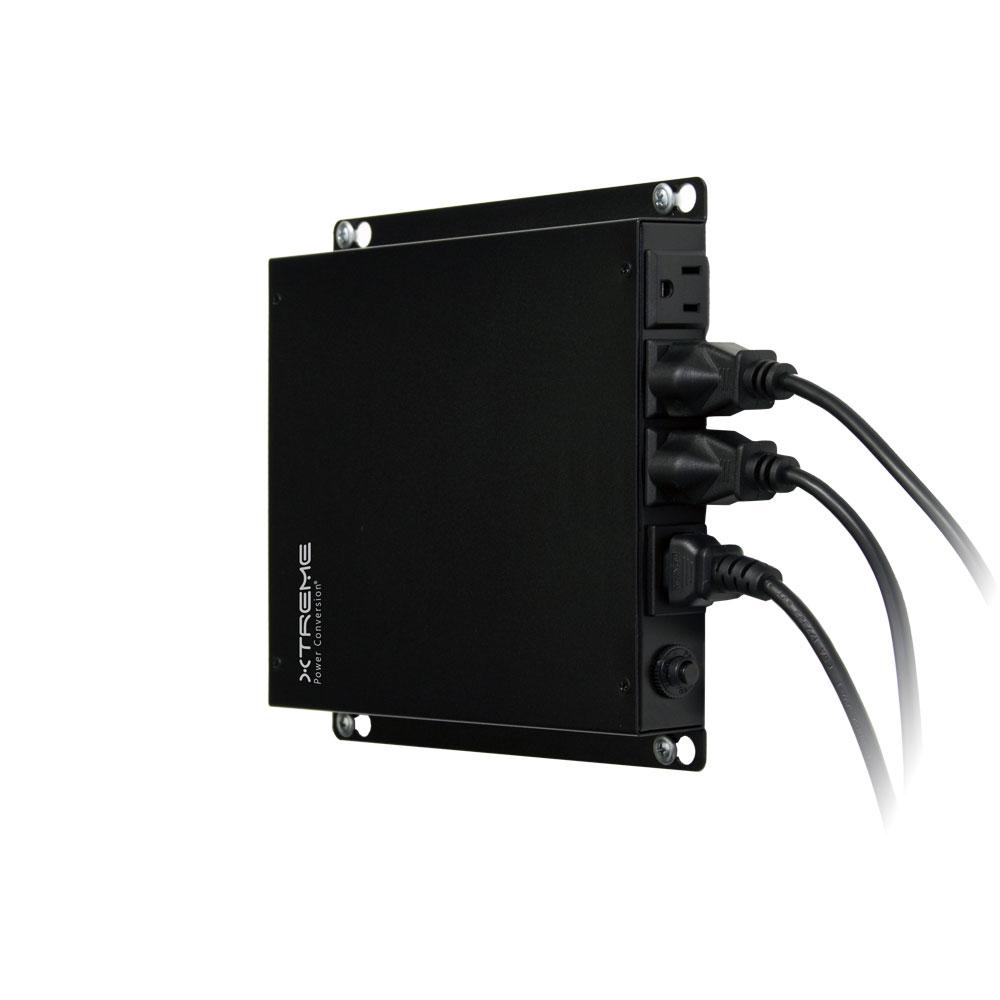

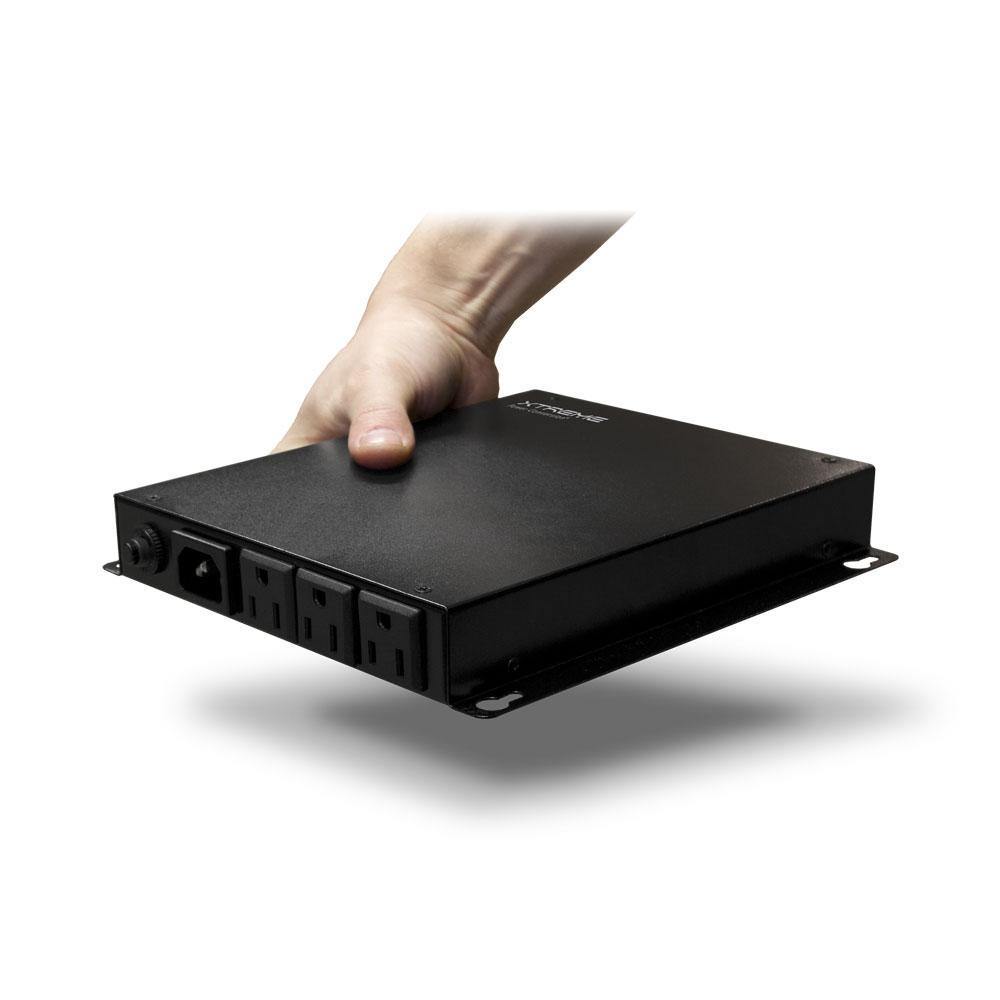

Slim and light weight (1.25” and 3.4 lbs) the J60 mounts easily behind flat panel displays
  • Power outage protection from 6 minutes to hours
  • Lithium batteries provide high temperature performance with long term reliability
  • UL-1778, cTUVus, FCC, CE, RoHS, TAA compliant (120V)
    CE, RoHS, TAA compliant (230V)
  • Brackets allow easy mounting to wall, ceiling or any flat surface
  • Primary applications: digital signage, kiosks, gaming machines, and Point of Sale (POS)
  • 5 years electronics, 5 years battery warranty (USA and Canada)
MODEL NUMBER J60-350 J60i-350 J60-600 J60i-600
CAPACITY Power rating 350VA (200W) 600VA (360W)
INPUT Voltage 120VAC 230VAC 120VAC 230VAC
Frequency 50/60Hz
OUTPUT Voltage 120VAC 230VAC 120VAC 230VAC
Waveform (normal) Sine wave
Waveform (battery) Simulated sine wave
Frequency 50/60Hz
Surge suppression 300 joules
BATTERY Battery type Lithium Iron Phosphate (LiFePo4)
Battery quantity and size (8) LiFePO4 18650 cells, 2400mAh (16) LiFePO4 18650 cells, 4400mAh
Battery runtime (est) 6 min at 100% load; 14 min at 50% load
PHYSICAL Dimensions (W x D x H) 6.9 x 8.5 x 1.25 in* (175 x 216 x 32 mm)* 7.3 x 10.8 x 1.6 in (185 x 275 x 40 mm)
Weight 3.4 lbs (1.5 kg) 4.7 lbs (2.1 kg)
Line cord Detachable 5–15P to C13 C14 inlet Detachable 5–15P to C13 C14 inlet
Receptacles (3) 5–15R (2) IEC C13 (3) 5–15R (2) IEC C13
ENVIRONMENT Temperature 32–104°F (0–40°C)
Humidity 0–90%
Altitude 11,500 ft above sea level

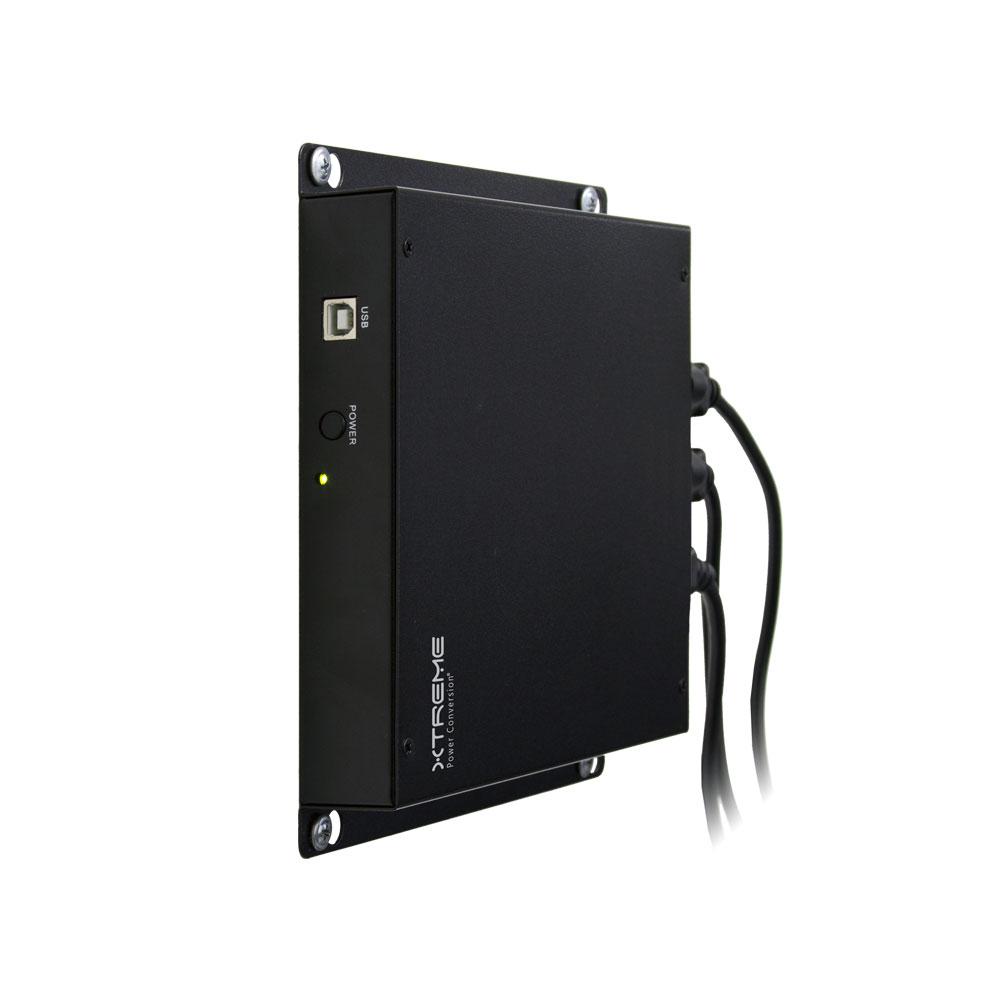

COMMUNICATIONS INTERFACE Standard communications USB Interface including cable and software RS-232 port provides communication and power for optional webcard
Web/SNMP card option N/A External Web/SNMP card providing UPS monitoring and receptacle On/Off control
Environmental monitoring device N/A Measures temperature and humidity (requires Web/SNMP card option)
APPROVALS UL-1778, cTUVus, FCC, RoHSCE, RoHS, TAA compliant (120V); CE, RoHS, TAA compliant (230V)
WARRANTY 5 years electronics, 5 years battery warranty (USA and Canada)**
AVAILABLE OPTIONS Web/SNMP card (600VA), Environmental Monitoring Device (600VA), power cord with offset/right angle 5-15P plug (120V units only)
INCLUDED IN BOX ViewPower CD, user manual, 5–15P to C13 line cord (120VAC units only)

*Wall mount brackets add 15mm to each side. **Warranty outside of USA & Canada is 3 years.
**Warranty outside of USA & Canada is 3 years.
