Toshiba

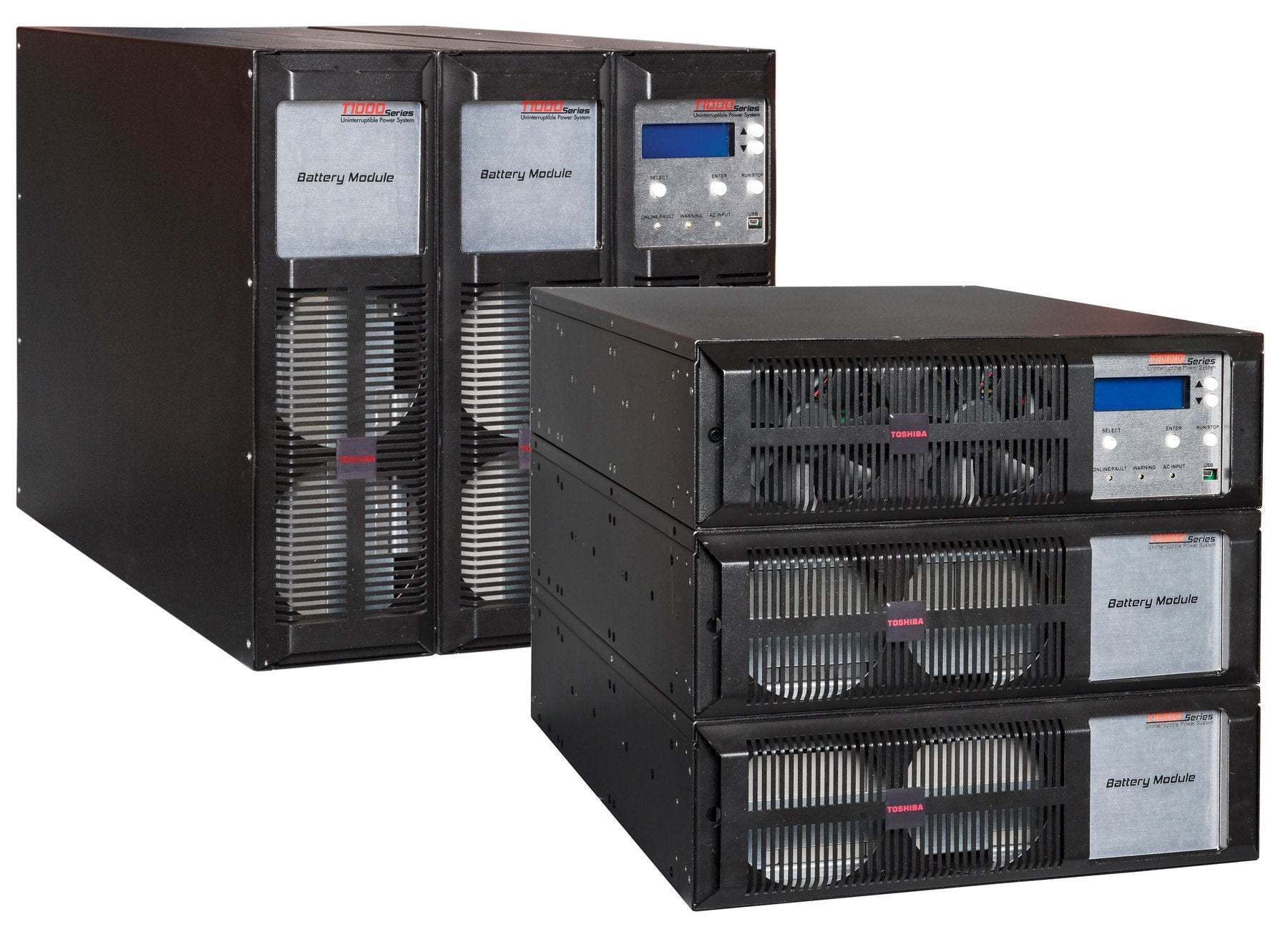

Toshiba T1000 6kVA 5400W 208/240V Hardwired In 9U Uninterruptible Power Supply

Toshiba T1000 6kVA 5400W 208/240V Hardwired In 9U Uninterruptible Power Supply

$ 7,999.00 USD
$ 7,999.00 USD
Sale Sold out
US 208/240Vin 208/240/120Vout System Hardwire Input with Output Receptacles (8) 5-20R
Rackmount System with Battery Module (9U)

Model Number: T1S3A6000GXAR9

The T1000 Series single-phase uninterruptible power system (UPS) is designed for IT and retail installations. Available in 6kVA, the T1000 supports a 0.9 power factor and high efficiency rate. The high efficiency rate reduces demand to the grid and heating of the environment. The UPS, battery, and transformer modules each occupy 3U rack space. The standard size reduces the total number of unique parts to increase manufacturing throughput and ease planning allocation of space.


Standard Features:

  • 0.9 Power Factor
  • Input Power Factor Greater than 0.97
  • Rack-mount, fixed, or on side rails
  • Rear access for easy connections
  • Modularized internal construction
  • Handles integrated into front bezel design
  • Front access USB port
  • Compatible with RemotEye 4 for monitoring and security
  • 5 Minute Battery Runtime
  • True-Online, Double Conversion UPS
  • Auto-Restart and Cold-Start Features
  • 216VDC Nominal Battery Line
  • All T1000 Series UPS Models meet the Requirements of the U.S.A. BAA (Buy American Act).




T1000 Series Specifications
  Size 6000VA
Tower US 208/240Vin 208/240Vout System Hardwire Input/Output T1S0A6000GXG
  US 230Vin 230Vout System Hardwire Input with Output Receptacles T1S1A6000FXF
  US 208/240Vin 208/240Vout System Hardwire Input with Output Receptacles T1S2A6000GXG
  US 208/240Vin 208/240/120Vout System Hardwire Input with Output Receptacles T1S3A6000GXA
  US 208/240Vin 208/240Vout System with Input Line Cord & Output Receptacles T1S4A6000GXG
  US 208/240Vin 208/240/120Vout System with Input Line Cord & Output Receptacles T1S5A6000GXA
Rackmount (6U-9U) US 208/240Vin 208/240Vout System Hardwire Input/Output (6U) T1S0A6000GXGR6
  US 230Vin 230Vout System Hardwire Input with Output Receptacles (6U) T1S1A6000FXFR6
  US 208/240Vin 208/240Vout System Hardwire Input with Output Receptacles (6U) T1S2A6000GXGR6
  US 208/240Vin 208/240/120Vout System Hardwire Input with Output Receptacles (9U) T1S3A6000GXAR9
  US 208/240Vin 208/240Vout System with Input Line Cord & Output Receptacles (6U) T1S4A6000GXGR6
  US 208/240Vin 208/240/120Vout System with Input Line Cord & Output Receptacles (9U) T1S5A6000GXAR6
Input Voltage 208/240V
  Capacity 6000VA
  Capacity 5400W
  Frequency 50 / 60 Hz auto sensing
  Power Factor Greater than 0.97
  Topology True on-line, Double conversion, Input PF correction
Output Voltage 200/208/220/230/240V (L-L) and Option with transformer for 120 V (L-N)
  Frequency 50 / 60 Hz auto sensing
  Wave Form Sine wave, zero transfer time
  Load Power Factor 0.9
  Efficiency AC/DC/AC Greater than 89%
  Rated Current 25A
  Rated Current (International) 25A
  Overload Capacity 125% for 1 min., 150% for 10 sec.
  Crest Factor 3.0 at full load
Battery DC Voltage (One Battery Module) 216 Vdc / 12V 9AH x 18
  Backup Time (One Battery Module) 5 min (full load @ 0.9pf)
  Type Valve-Regulated Lead Acid; Flame Retardant (9.0 Amp Hr)
Physical Interface Dry Contact & USB standard, RemotEye 4® and EMD option
  Dimensions Tower 2 Modules (W x D x H in) 10.44 x 24.38 x 16.73
  Weight Tower 2 Modules (lbs) 212
  Dimensions Tower 3 Modules (W x D x H in) 15.66 x 24.38 x 16.73
  Weight Tower 3 Modules (lbs) 212
  Dimensions Rackmount 6U (W x D x H in) 16.73 x 24.38 x 10.44
  Weight Rackmount 6U (lbs) 212
  Dimensions Rackmoung 9U (W x D x H in) 16.73 x 24.38 x 15.66
  Weight Rackmount 9U (lbs) 288
  Input Hardwired or Line Cord
  Output Hardwired or Receptacles
Environment Operating Temperature 0 - 40°C (32 - 104°F)
  Altitude 11500 ft (3500 m) above sea level
  Heat Rejection (BTU/Hour) @ 240 V 2513
Warranty   Three years on electronics
    Two years full replacement on battery
