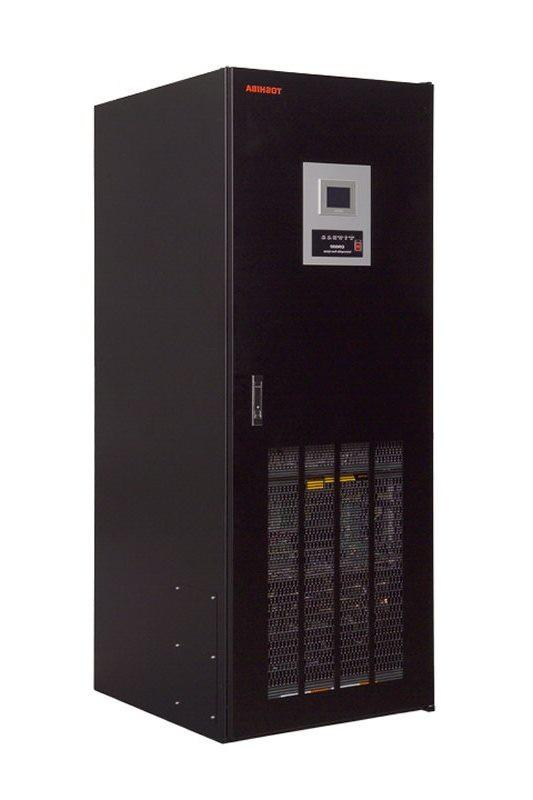

Toshiba G9000 480V 1000kVA 1000kW Uninterruptible Power Supply

Toshiba G9000 480V 1000kVA 1000kW Uninterruptible Power Supply

$ 311,999.00 USD
$ 311,999.00 USD
Sale Sold out
New Toshiba G9000 480V 1000kVA 1000kW Uninterruptible Power Supply  - Includes 3 Year Warranty with Startup.
Model Number: T90S3S01MS6XSN
.
The G9000 Series UPS is available in capacities of 100, 160, 225, 300, 500, 750, and 1000kVA and comes with an industry-leading three-year onsite warranty. It is designed for stand-alone or parallel use in up to eight-unit configurations without requiring the use of a special switchgear cabinet.

Using the new Toshiba IGBT technology in the rectifier/converter, DC/DC chopper, and the inverter sections of the UPS, the G9000's double-conversion topology provides an AC/DC/AC efficiencies of up to 97% at loads from 50% to 100%. Even at 20% loading, the efficiency remains greater than 94%. This is 10% to 20% better than current industry systems, making the G9000 excellent for N+1 parallel systems where loads are typically 30-40%.

G9000 Standard Specifications
MODEL NUMBER
T90S3S10KS6XSN
T90S3S16KS6XSN
T90S3S22KS6XSN
T90S3S30KS6XSN
T90S3S50KS6XSN
T90S3S75KS6XSN
T90S3S01MS6XSN
Capacity (KVA/KW)
100/90
160/144
225/202.5
300/300
500/500
750/750
1000/1000
Topology True On-Line, Double Conversion, Advanced Multi-Level IGBT Technology
INPUT
Voltage 480 V, Three-Phase, Three-Wire + Ground/Bypass Input; 480 V, Three-Phase, Three-Wire + Ground
Voltage Range 480 V, -20% to +15% (384 to 552 V Without Utilizing Battery)
Power Factor Greater than 0.99
Current THD < 3% at 100% Load (No Input Filter Required)
Frequency 60 Hz (±10%)
OUTPUT
Voltage 480 V, Three-Phase, Three-Wire + Ground
Frequency 60 Hz, ±0.01% (In Free-Running Mode)
Voltage Regulation ±1.0% (0.5% Typical)
Power Factor 0.9 Lagging 1.0 (Unity)
Voltage THD < 2% for Linear Load; < 5% for Non-Linear Load
Overload (Inverter) 125% for 2 Minutes; 150% for 60 Seconds 125% for 10 Minutes; 150% for 60 Seconds
Overload (Bypass) 1000% for One Cycle  500% for One Cycle
BATTERY
DC Link 480 VDC Nominal
ENVIRONMENT
Temperature Range 32° to 104°F (0° to 40°C)
Relative Humidity 5% to 95% Non-Condensing
Heat Rejection 13.5 kBTU/Hour 17.8 kBTU/Hour 25.1 kBTU/Hour 31.7 kBTU/Hour 52.8 kBTU/Hour 79.2 kBTU/Hour 112.8 kBTU/Hour
Efficiency (Full Load) 95.80% 96.50% 96.50% 97.00% 97.00% 97.00% 96.80%
Efficiency (20% Load) 92.50% 94.70% 94.90% 94.40% 94.80% 95.50% 95.50%
Altitude  7380 Feet Maximum Without Derating (2250 Meters) 6500 Ft. max
Audible Noise 70 DBA at 1 Meter 73 DBA at 1 Meter
DIMENSIONS
Dimensions (W x D x H) 27.6 x 32.8 x 80.6 in. 35.4 x 32.8 x 80.6 in. 51.2 x 32.7 x 80.7 in  70.9 x 32.7 x 80.7 in. 90.6 x 32.7 x 80.7 in. 118.2 x 35.5 x 80.7 in.
  700 x 832 x 2047 mm 900 x 832 x 2047 mm 1300 x 832 x 2050 mm 1800 x 832 x 2050 mm 2300 x 832 x 2050 mm 3003 x 902 x 2050 mm
Weight 855 lbs. 1160 lbs.  1230 lbs. 2260 lbs. 3360 lbs.  4250 lbs.  6613 lbs.
  388 kg 526 kg 558 kg 1025 kg 1525 kg 1928 kg 3000 kg
FEATURES
  Digital Signal Processor (DSP) Control, Fully Digital IGBT Converter & Inverter, High Efficiency Over Wide Load Range,
  Transformer-Less Design, N+1 & N+N (Up to Eight in Parallel) Capability, Dual-Input Feed, Electronic Battery Isolation,
  RS232 and Dry Contact Interface, Small Footprint, & Lightweight Design
STANDARDS
  UL 1778 and UL-C Listed, ISO9001, ISO14001, ANSI C62.41(IEEE 587), FCC Class A, Article 47, Part 15.B  UL 1778 and UL-C Listed, ISO9001, ISO14001, ANSI C62.41(IEEE 587), IEC 62040-2 Cat.3
WARRANTY
  Three Years Onsite (Optional Two-Year Extended Warranty); See Toshiba Warranty Policy for Full Details
SERVICE
  24-Hour, 365-Day Technical Support 1-877-867-8773
