Toshiba
Toshiba 1600XPi 6kVA 5.1kW 208/240V 6-50P In / (5) 5-20R (Duplex) Out UPS
Toshiba 1600XPi 6kVA 5.1kW 208/240V 6-50P In / (5) 5-20R (Duplex) Out UPS
Regular price
$ 8,000.00 USD
Regular price
Sale price
$ 8,000.00 USD
Unit price
/
per
Couldn't load pickup availability

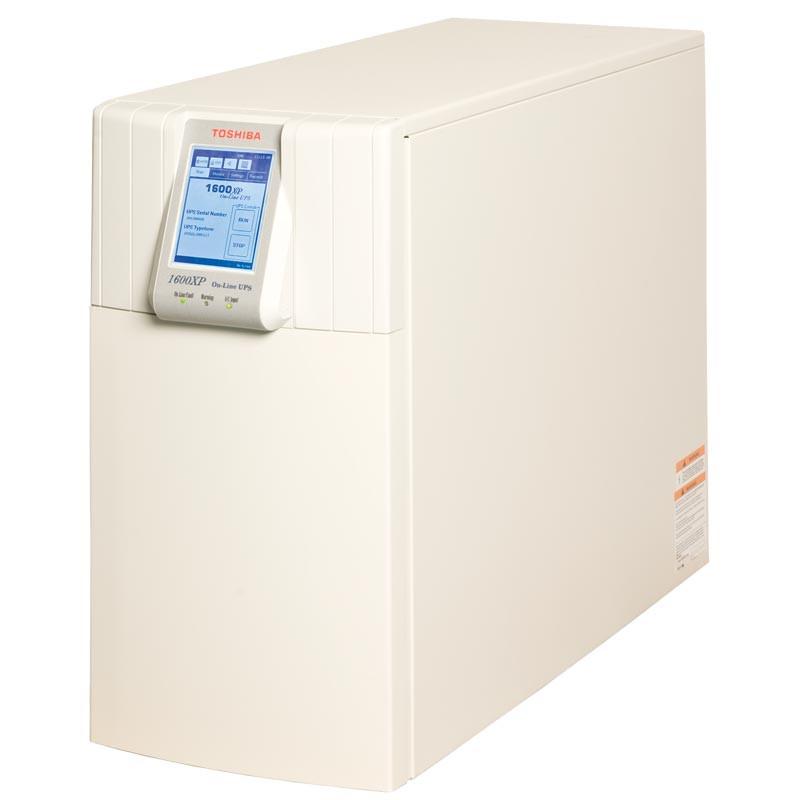

Toshiba 1600XPi 6kVA 5.1kW 208/240V Uninterruptible Power Supply Tower UPS w/3-Year Electronics Warranty.
6-50P In / (5) 5-20R (Duplex) Out
Model Number: H3BG2L060C61TPB5

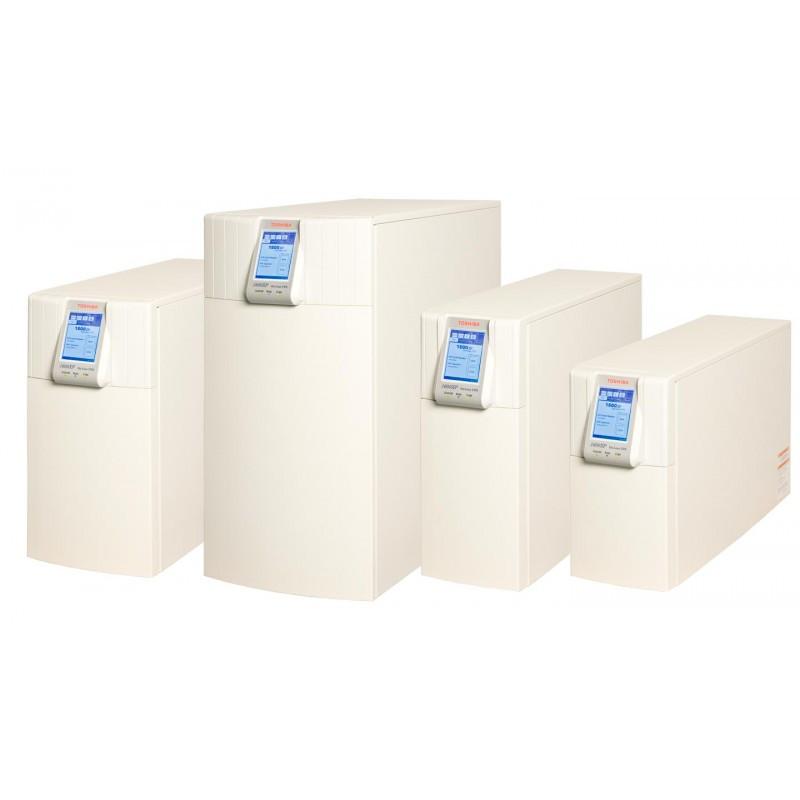

The 1600XP/XPi Series is single-phase double-conversion UPS, available in a range of sizes: 3.6 kVA, 6.0 kVA, 8.0 kVA, 10.0 kVA, 14 kVA, 18 kVA, and 22 kVA. Available in a tower design solution with a LCD touch-screen display that provides unmatched access for UPS monitoring and control. As a double-conversion online UPS, supplies uninterrupted, clean single-phase power to critical systems over large input voltage deviations without resorting to battery backup.
Standard Features:
- Digital LCD Touchscreen Display
- True On-Line, Double Conversion UPS
- External Battery Option

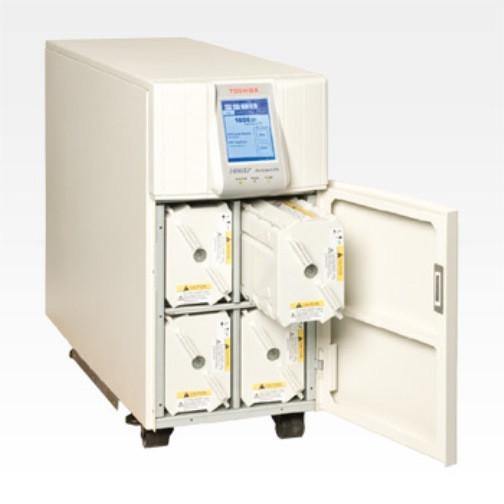

- Hot Swappable Batteries
- Internal Isolation Transformer
- Wide Input Voltage Window
- Wide Input Frequency Window
- Input Power Factor > 0.95
- Power Factor Correction
- Output Power Factor 0.85
- Optional Network Interface Card for Remote Monitoring/Control
- Optional External Battery Cabinets
- Optional Environmental Monitoring Device
- Three year Warranty
|
1600XP/XPi Specifications Spreadsheet
|
|||||||
| Capacity |
3.6 KVA
(3.1 KW) |
6 KVA
(5.1 KW) |
8 KVA
(6.8 KW) |
10 KVA
(8.5 KW) |
14 KVA
(11.9 KW) |
18 KVA
(15.3 KW) |
22 KVA
(18.7 KW) |
| Topology |
True On-Line, Double Conversion; IGBT Power Factor Corrected Input; Internal Isolation Transformer
|
||||||
| Certifications |
UL 1778, CUL, CE, FCC Class A, IEEE 587, ANSI/C62.41, ISO 9001, ISO 14001, NEMA/PE1-1993, RoHs
|
||||||
| Input Characteristics | |||||||
| Input Voltage (Based on Typical 70% Load) |
Single-Phase 208/240 VAC (Three-Wire Input/L-L, G); 230 VAC (Three-Wire Input/L, N, G), +10% -30%
|
||||||
| Input Frequency |
45 to 65 Hz (Auto-Sensing)
|
||||||
| Input Power Factor |
> 0.95 For All Loads
|
||||||
| Input Current THD |
< 5% (Even for 100% Non-Linear Loads)
|
||||||
| AC Input Breaker Rating |
30 A
|
50 A
|
60 A
|
63 A
|
100 A
|
100 A
|
125 A
|
| Battery Characteristics | |||||||
| Battery Type |
Valve-Regulated Lead Acid; Flame Retardant (9.0 Amp Hr)
|
||||||
| Backup Time (Fully Charged) |
7 Minutes
|
7 Minutes
|
7 Minutes
|
5 Minutes
|
7 Minutes
|
5 Minutes
|
3 Minutes
|
|
0.85 Power Factor; 77° F; Approximately 30% More Runtime for Output Power Factor of 0.7 (Triple Backup Time at ½ Load)
|
|||||||
| Recharge Time |
24 Hours (Full), 12 Hours (90%)
|
||||||
| DC Link |
144 VDC
|
216 VDC
|
288 VDC
|
||||
| Output Characteristics | |||||||
| Output Voltage |
Single-Phase 240/208/120 VAC (Four-Wire Output/L-L, N, G) 230 VAC (Three-Wire Output L, N, G)
|
||||||
| Output Voltage Regulation |
�3%; ±1% Typical
|
||||||
| Output Frequency |
50/60 Hz; ±0.5 Hz/1.0 Hz/1.5 Hz (Factory or Authorized Service Center Selectable)
|
||||||
| Output Voltage THD |
< 3% for Linear Load; 1% Typical
|
||||||
| Common Mode Noise |
< 0.5 V RMS
|
||||||
| Rated-Load Power Factor |
0.85 (0.6 to 1.0) Lag
|
||||||
| Rated Output Current @ 240 V |
15 A
|
25 A
|
33.3 A
|
41.6 A
|
58 A
|
75A
|
91.6 A
|
| Maximum Peak Output Current |
45 A
|
75 A
|
100 A
|
125 A
|
174 A
|
225 A
|
275 A
|
| Overload Capacity |
Inverter Mode: 150% for 10 Seconds, 125% for 30 seconds; Bypass Mode: 125% for 10 Minutes, 1000% for One Cycle
|
||||||
| Environmental Characteristics | |||||||
| Efficiency (AC-DC-AC) |
> 85%
|
||||||
| Temperature Range |
0 to 40°C (Operating); -20° to +40°C (Storage)
|
||||||
| Heat Generation (BTU/Hr) |
1843
|
3071
|
4095
|
5118
|
7168
|
9213
|
11,260
|
| Altitude |
6600 Feet (2000 Meters) Maximum Without Derating
|
||||||
| Audible Noise |
< 60 DBA @ 1 Meter
|
||||||
| Mechanical Design | |||||||
| Enclosure |
Steel Enclosure; Complies with NEMA 1 and UL Type-1 Standard
|
||||||
| Enclosure Dimensions (HxWxD) |
22.1" x 10" x 33"
|
27.5" x 10" x 33"
|
28.4" x 13" x 34.9"
|
39.1" x 17.5" x 36.1"
|
|||
| Shipping Weight |
280 lb/127 kg
|
346 lb/157 kg
|
476 lb/214 kg
|
784 lb/355 kg
|
784 lb/355 kg
|
835 lbs/379 kg
|
|
| Battery Pack Size (HxWxD) |
5" x 7.3" x 19" (Battery Pack Part # 51896-FS)
|
||||||
| Battery Pack Quantity |
Two
|
Three
|
Four
|
Eight
|
|||
| Additional Key Features |
Output Isolation Transformer, RS232 & Dry Contact Interface, Crest Factor of 3, Angled Terminal Blocks for Easy Installation, Casters for Mobility
|
||||||
| Options | |||||||
| SNMP & WEB-Based Monitoring |
RemotEye® III, RemotEye® 4, RemotRadar™, & Environmental Monitoring Device
|
||||||
| Matching Battery Cabinet |
Consult Factory
|
||||||
| Internal/External Maintenance Bypass |
Consult Factory
|
||||||
| Receptacle Panel & Line Cord |
Consult Factory
|
||||||
| Warranty |
Three Years on Electronics (UPS); Two Years on Battery (See Toshiba Warranty Policy for Full Details)
|
||||||
