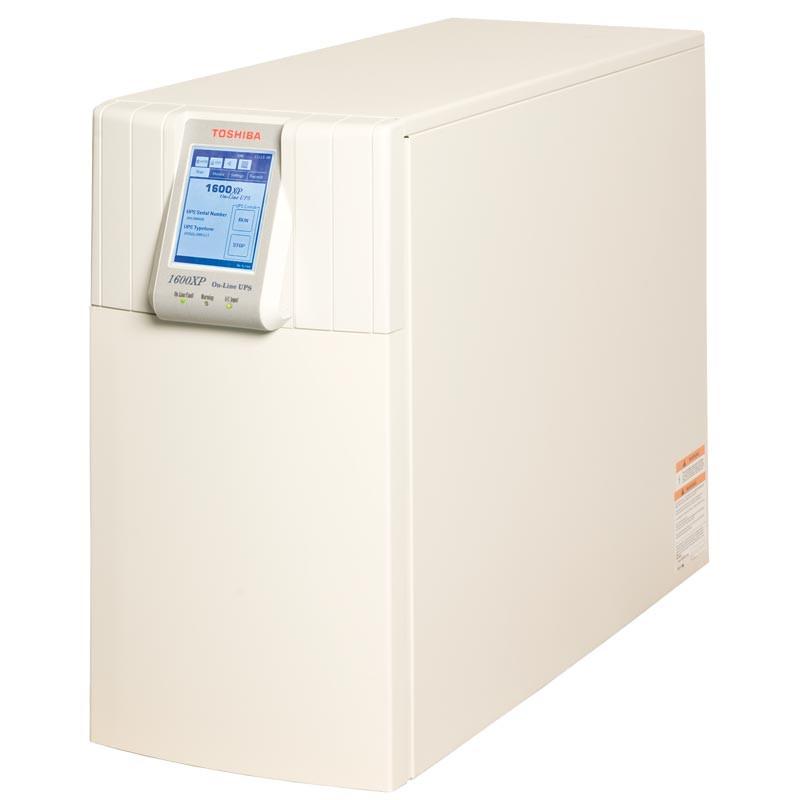

Toshiba 1600XPi 3.6kVA 3.1kW 208/240V L6-30P In / (2) 5-20R (Duplex) Out UPS

Toshiba 1600XPi 3.6kVA 3.1kW 208/240V L6-30P In / (2) 5-20R (Duplex) Out UPS

$ 5,599.00 USD
$ 5,599.00 USD
Sale Sold out
Toshiba 1600XPi 3.6kVA 3.1kW 208/240V Uninterruptible Power Supply Tower UPS w/3-Year Electronics Warranty.
L6-30P In / (2) 5-20R (Duplex) Out
Model Number: H3BG2L036C61TPA5

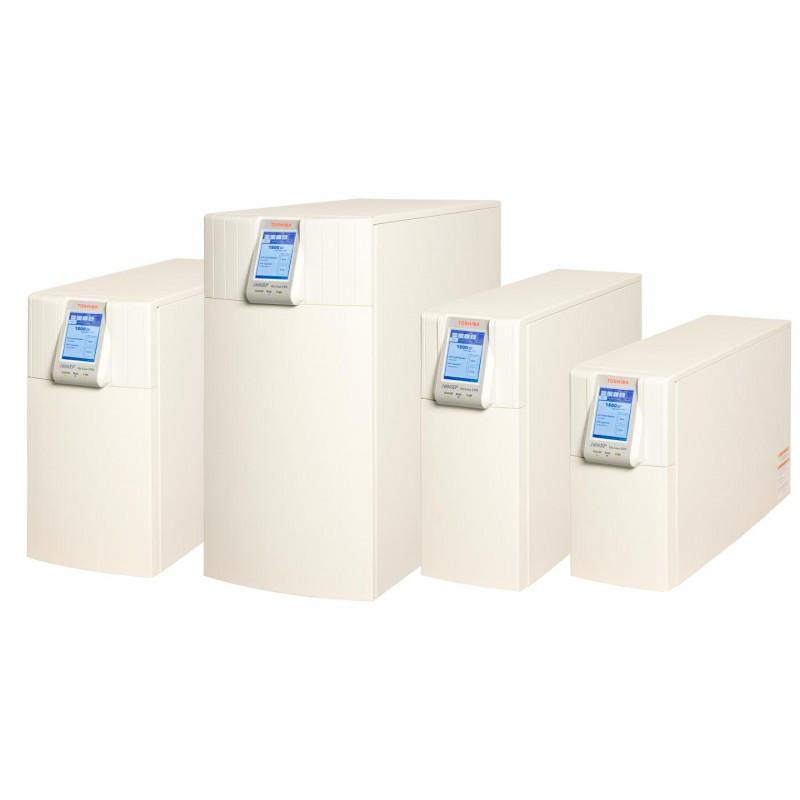

The 1600XP/XPi Series is single-phase double-conversion UPS, available in a range of sizes: 3.6 kVA, 6.0 kVA, 8.0 kVA, 10.0 kVA, 14 kVA, 18 kVA, and 22 kVA. Available in a tower design solution with a LCD touch-screen display that provides unmatched access for UPS monitoring and control. As a double-conversion online UPS, supplies uninterrupted, clean single-phase power to critical systems over large input voltage deviations without resorting to battery backup.



Standard Features:

  • Digital LCD Touchscreen Display
  • True On-Line, Double Conversion UPS
  • External Battery Option

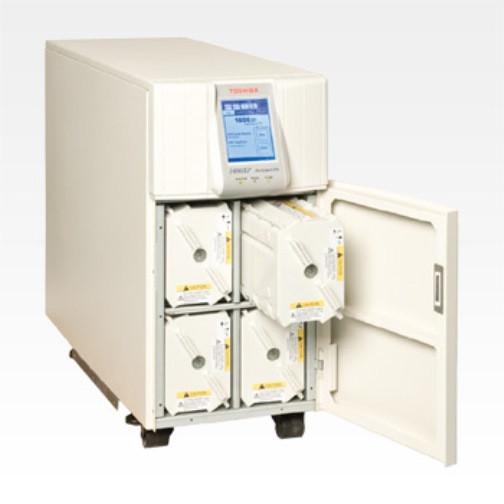

  • Hot Swappable Batteries
  • Internal Isolation Transformer
  • Wide Input Voltage Window
  • Wide Input Frequency Window
  • Input Power Factor > 0.95
  • Power Factor Correction
  • Output Power Factor 0.85
  • Optional Network Interface Card for Remote Monitoring/Control
  • Optional External Battery Cabinets
  • Optional Environmental Monitoring Device
  • Three year Warranty




1600XP/XPi Specifications Spreadsheet
Capacity
3.6 KVA
(3.1 KW)
6 KVA
(5.1 KW)
8 KVA
(6.8 KW)
10 KVA
(8.5 KW)
14 KVA
(11.9 KW)
18 KVA
(15.3 KW)
22 KVA
(18.7 KW)
Topology
True On-Line, Double Conversion; IGBT Power Factor Corrected Input; Internal Isolation Transformer
Certifications
UL 1778, CUL, CE, FCC Class A, IEEE 587, ANSI/C62.41, ISO 9001, ISO 14001, NEMA/PE1-1993, RoHs
Input Characteristics
Input Voltage
(Based on Typical 70% Load)
Single-Phase 208/240 VAC (Three-Wire Input/L-L, G); 230 VAC (Three-Wire Input/L, N, G), +10% -30%
Input Frequency
45 to 65 Hz (Auto-Sensing)
Input Power Factor
> 0.95 For All Loads
Input Current THD
< 5% (Even for 100% Non-Linear Loads)
AC Input Breaker Rating
30 A
50 A
60 A
63 A
100 A
100 A
125 A
Battery Characteristics
Battery Type
Valve-Regulated Lead Acid; Flame Retardant (9.0 Amp Hr)
Backup Time (Fully Charged)
7 Minutes
7 Minutes
7 Minutes
5 Minutes
7 Minutes
5 Minutes
3 Minutes
0.85 Power Factor; 77° F; Approximately 30% More Runtime for Output Power Factor of 0.7 (Triple Backup Time at ½ Load)
Recharge Time
24 Hours (Full), 12 Hours (90%)
DC Link
144 VDC
216 VDC
288 VDC
Output Characteristics
Output Voltage
Single-Phase 240/208/120 VAC (Four-Wire Output/L-L, N, G) 230 VAC (Three-Wire Output L, N, G)
Output Voltage Regulation
�3%; ±1% Typical
Output Frequency
50/60 Hz; ±0.5 Hz/1.0 Hz/1.5 Hz (Factory or Authorized Service Center Selectable)
Output Voltage THD
< 3% for Linear Load; 1% Typical
Common Mode Noise
< 0.5 V RMS
Rated-Load Power Factor
0.85 (0.6 to 1.0) Lag
Rated Output Current @ 240 V
15 A
25 A
33.3 A
41.6 A
58 A
75A
91.6 A
Maximum Peak Output Current
45 A
75 A
100 A
125 A
174 A
225 A
275 A
Overload Capacity
Inverter Mode: 150% for 10 Seconds, 125% for 30 seconds; Bypass Mode: 125% for 10 Minutes, 1000% for One Cycle
Environmental Characteristics
Efficiency (AC-DC-AC)
> 85%
Temperature Range
0 to 40°C (Operating); -20° to +40°C (Storage)
Heat Generation (BTU/Hr)
1843
3071
4095
5118
7168
9213
11,260
Altitude
6600 Feet (2000 Meters) Maximum Without Derating
Audible Noise
< 60 DBA @ 1 Meter
Mechanical Design
Enclosure
Steel Enclosure; Complies with NEMA 1 and UL Type-1 Standard
Enclosure Dimensions (HxWxD)
22.1" x 10" x 33"
27.5" x 10" x 33"
28.4" x 13" x 34.9"
39.1" x 17.5" x 36.1"
Shipping Weight
280 lb/127 kg
346 lb/157 kg
476 lb/214 kg
784 lb/355 kg
784 lb/355 kg
835 lbs/379 kg
Battery Pack Size (HxWxD)
5" x 7.3" x 19" (Battery Pack Part # 51896-FS)
Battery Pack Quantity
Two
Three
Four
Eight
Additional Key Features
Output Isolation Transformer, RS232 & Dry Contact Interface, Crest Factor of 3, Angled Terminal Blocks for Easy Installation, Casters for Mobility
Options
SNMP & WEB-Based Monitoring
RemotEye® III, RemotEye® 4, RemotRadar™, & Environmental Monitoring Device
Matching Battery Cabinet
Consult Factory
Internal/External Maintenance Bypass
Consult Factory
Receptacle Panel & Line Cord
Consult Factory
Warranty
Three Years on Electronics (UPS); Two Years on Battery (See Toshiba Warranty Policy for Full Details)
