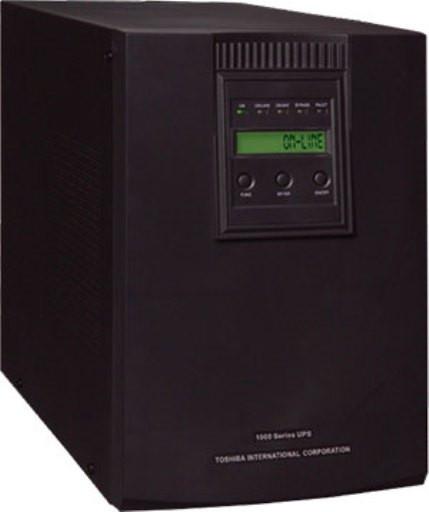

Toshiba 1000 Series 3kVA 2100W 230V Uninterruptible Power Supply Tower UPS

Toshiba 1000 Series 3kVA 2100W 230V Uninterruptible Power Supply Tower UPS

$ 2,089.00 USD
$ 2,089.00 USD
Sale Sold out
New Toshiba 1000 Series 3kVA 2100W 230V International Model Uninterruptible Power Supply Tower UPS w/3-Year Electronics Warranty
C20 Input / (1) C19 (8) C13 Output
Model Number: UT1E1E020C6
The 1000 Series single-phase Uninterruptible Power System is available in 1.0, 1.5, 2.0, 2.4, 3.0, and 6.0 kVA. This double-conversion, true online UPS is available in both tower and rack mount design solutions.



Standard Features:

  • Auto-Restart and Cold Start
  • Programmable Load Shed Receptacle
  • Intelligent Charger with Rapid Charge in only 4.0 hours to 90%
  • Wide Input Voltage Window
  • Wide Input Freq Window for Comp Generator Compatibility
  • Input Power Factor > 0.97
  • Output Power Factor 0.70 (0.8 pf for 2.4 kVA)
  • LCD Display in Multiple Languages
  • Optional Network Interface Card - RemotEye® II
  • Optional Environmental Monitoring Device

Applications:

  • Industrial Systems
  • Health Care
  • Laboratories
  • Small Business Offices
  • Point-of Sale Equipment
  • Internet Service Provider
  • Server Consolidation
  • Datacenters
  • Storage
  • Wiring Closets



1000 Series Specifications
  Category
1000 Series
1000+ Series
  Size
1000 VA
1500 VA
2000 VA
3000 VA
6000 VA
1000 VA
2400 VA
Tower US 120V Model
UT1A1A010C6
UT1A1A015C6
UT1A1A020C6
UT1A1A030C6
-
UT1A1A010C6T
UT1G2L024C6T
  International 230V Model
UT1E1E010C6
UT1E1E015C6
UT1E1E020C6
UT1E1E030C6
-
-
-
Rackmount (2U) US 120V Model
UT1A1A010C6RKB2
UT1A1A015C6RKB2
UT1A1A020C6RKB2
UT1A1A030C6RKB2
-
-
  International 230V Model
UT1E1E010C6RKB2
UT1E1E015C6RKB2
UT1E1E020C6RKB2
UT1E1E030C6RKB2
UT1G1G060C6RKB3 + UT1-BR-0607
-
-
Input Voltage
120 VAC (80 - 144 V, +20% to -33%)
-
120 VAC
Single-Phase 208/240 VAC (Three-Wire Input/L-L, G) (160 - 276 V, +15% to -34%)
  Voltage (International)
230 VAC (161 - 276 V, +20% to -30%)
-
  Capacity (VA)
1000 VA
1500 VA
2000 VA
3000 VA
6000 VA
1000 VA
2400 VA
  Capacity (W)
700 W
1050 W
1400 W
2100 W
4200 W
700 W
1920 W
  Frequency
50 / 60 Hz auto sensing
  Power Factor
Greater than 0.97
  Topology
True on-line, Double conversion, Input PF correction
True on-line, Double conversion, Input PF correction Isolation Transformer
Output Voltage
100/110/115/120/127 VAC
-
100/110/115/120/127 VAC
120/200/208/220/230/240 VAC
  Voltage (International)
208/220/230/240 VAC
  Frequency
50 / 60 Hz auto sensing
  Wave Form
Sine wave, zero transfer time
  Load Power Factor
0.7
0.8
  Efficiency AC/DC/AC
Greater than 86%
> 89 %
> 86%
> 87%
  Rated Current
8.3 A
12.5 A
16.6 A
25 A
-
8.3 A
10A (240V)
  Rated Current (International)
4.3 A
6.5 A
8.7 A
13 A
25 A (240V)
-
  Overload Capacity
125% for 1 min, 130% for 10 sec
  Crest Factor
3.0 at full load
Battery DC Voltage (Tower & 2U)
36 V / 12 V 9 AH x 3
72V / 12 V 9AH x 6
240V 12V x 20
36 V / 12 V 9 AH x 3
72V / 12 V 9AH x 12 (2 strings)
  Backup Time (Tower & 2U)
7 min (full load)
6 min (full load)
6 min (full load)
5 min (full load)
7 min (full load)
11 minutes
  Type
Valve-Regulated Lead Acid; Flame Retardant (9.0 Amp Hr)
Physical Interface
RS-232 and USB standard, Remote Contact, RemotEye II© and EMD option
  Dimensions Tower (L X W X H)
16.5" x 6.0" x 9.4"
16.7" x 8.9" x 14.2"
-
23.3" x 6.0" x 9.4"
23.2" x 10.1" x 27.6"
  Dimensions 2U (L X W X H)
16.7" x 16.9" x 3.5"
25.0" x 16.9" x 3.5"
16.8Lx23.5Wx10.5H (6U)
-
  Weight (Tower/2U)
35.6 lbs / 37.6 lbs
37.4 lbs / 37.6 lbs
68.4 lbs /69.5 lbs
72.6 lbs / 71.5 lbs
148 lbs
51 lbs
154.3 lbs
  Line Cord
5-15P
5-20P
L5-30P
-
5-15P
Hardwire or Optional L6-20P
  Line Cord (International)
IEC 320
Hardwire & L6-30P
-
  Receptacles (Tower/2U)
NEMA 5-15R (6/6)
NEMA 5-20R (12/4)
L6-30R (2)
NEMA 5-15 (6)
Hardwire/Optional (3) 5-20R or (2) L6-20R & (1) 5-20R Duplex
  Receptacles (Tower/2U) International
IEC 320 C13 (4/4)
IEC 320 C13 (4/4)
IEC 320 C13 (8/4)
IEC 320 C13 (8/4)
-
Environment Operating Temperature
0 - 40oC (32 - 104oF)
  Altitude
11500 ft (3500 m) above sea level
Warranty
Three years on electronics

Two years full replacement on battery (See Toshiba warranty policy for full details.)
