Refurbished Eaton 5PX 5PX3000RTN 3000 VA 2700 Watt 120V 2U UPS w/Network Card-MS
Refurbished Eaton 5PX 5PX3000RTN 3000 VA 2700 Watt 120V 2U UPS w/Network Card-MS
Regular price
$ 1,449.99 USD
Regular price
$ 2,809.00 USD
Sale price
$ 1,449.99 USD
Unit price
per
Couldn't load pickup availability
New Old Stock. Box opened to install new batteries only. Ships with all manufacturer accessories in original box.

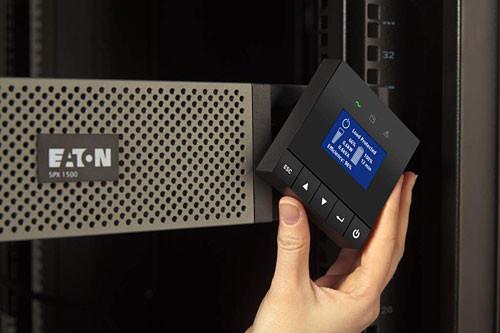

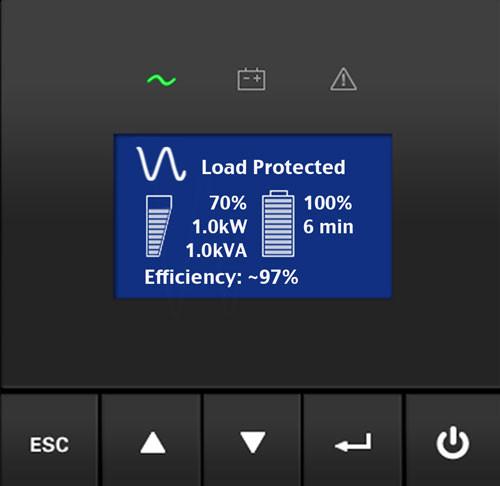

Combining extended runtime capabilities and exceptional efficiency, the Eaton 5PX UPS is a powerful enterprise class backup solution. An ENERGY STAR® qualified UPS, the 5PX’s managed outlet segments allow you to monitor energy consumption down to the outlet level on its intuitive LCD screen, while convenient virtualization-ready bundles and Intelligent Power Software Suite enable seamless management in virtualized environments.
| General | |
| Topology | Line-Interactive High Frequency (Pure Sine wave, Buck + Boost) |

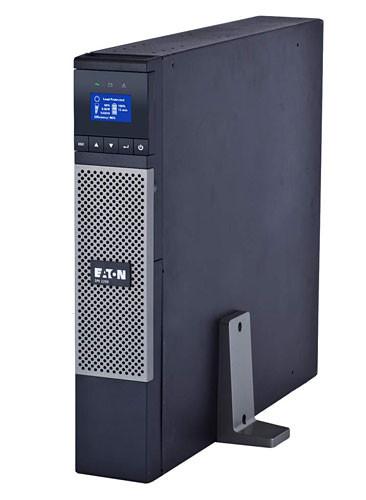

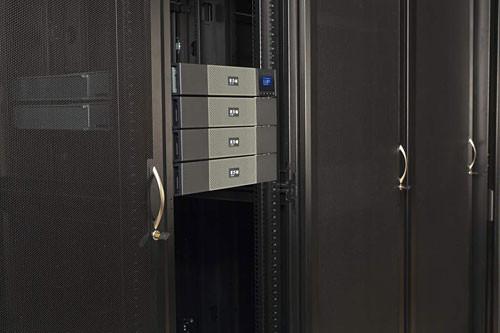

| Configuration | Rack/Tower |
| Catalog Number | 5PX3000RTN |
| Color | Black |
| Rating (VA/Watts) | 3000/2700 |
| Diagnostics | Full system self-test at power up |
| UPS Bypass | EHBPL3000R-PDU1U (optional) |
| Dimensions (H x W x D, inches) | 3.4 x 17.4 x 25.5 |
| Dimensions (H x W x D, mm) | 86 x 441 x 647 |
| Weight (kg) | 40 |
| Weight (lbs) | 87 |
| Warranty | 3 years on electronics, 3 years on batteries with registration |
| Rail Kit Included | Tower stands and 4-post rail kit included |
| Contents (Ships with the following items) |
5PX3000RT2U Four-post rail kit User manual CD Tower pedestals Network Card-MS Intelligent Power Software Suite CD Quick start guide RS-232 serial cable USB cable Phillips head screw driver |
| Efficiency | up to 99% |
| Electrical Input | |
| Connection |
(1) NEMA L5-30P
|
| Input Cord | 10 ft |
| Input Voltage Range | 89–151 Vac (adjustable to 70–153 Vac) |
| Nominal Voltage | 120 Vac (adjustable to100/120/127 Vac) |
| Frequency | 50/60 Hz (auto-sensing) |
| Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Input Power Factor | 0.9 |
| Electrical Output | |
| Output Receptacles |
(6) NEMA 5-20R
(1) NEMA L5-30R
|
| On Utility Voltage Regulation | 102–132 Vac |
| On Battery Voltage Regulation | -10%, +6% of nominal |
| Output Frequency | 50/60 Hz ±0.1 % (autosensing) |
| Transfer Time | 1–4 ms typical |
| Load Segments | Group 1: (2) 5-20R outlets Group 2: (2) 5-20R outlets |
