Refurbished APC SUM1500RMXL2U Smart-UPS XL 1440VA / 1425W 120V Modular UPS System

Refurbished APC SUM1500RMXL2U Smart-UPS XL 1440VA / 1425W 120V Modular UPS System

$ 499.99 USD
$ 1,375.00 USD $ 499.99 USD
Sale Sold out
Refurbished APC SUM1500RMXL2U Smart-UPS XL 1440VA / 1425W 120V Modular UPS System

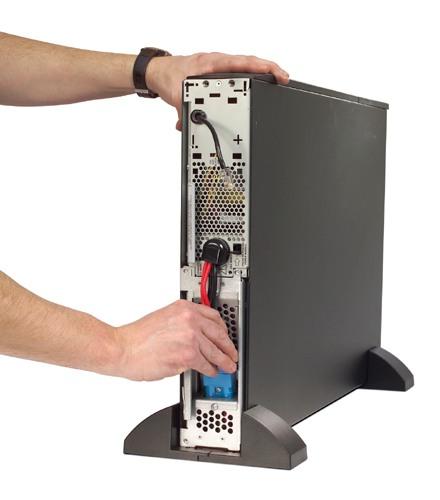

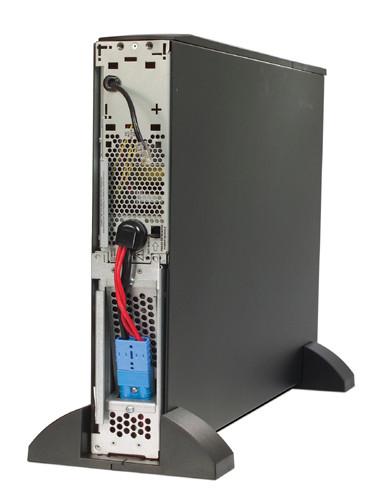

Sold with new CSB Batteries installed. May show signs of previous installation.
Includes Network Card AP9619, Rack Ears. No Vertical Stands Included.
30-Day Money Back Guarantee.

The APC SUM1500RMXL2U Smart-UPS provides backup power to the connected equipment, in case of a power failure. Upon restoration of utility power, the UPS automatically starts the connected equipment. It protects your electrical equipment from spikes, surges, and lightings. The periodic battery self-test intimates you, in case the battery needs to be replaced. With intelligent charging, the battery life of the UPS is increased to a great extent. You can also manage the UPS via a serial port.

Output

  • Output power capacity
    1.425 KWatts / 1.44 kVA
  • Max Configurable Power (Watts)
    1.425 KWatts / 1.44 kVA
  • Nominal Output Voltage
    120V
  • Output Frequency (sync to mains)
    50/60Hz +/- 3 Hz
  • Topology
    Line Interactive
  • Waveform type
    Sine wave
  • Maximum Output Current
    24

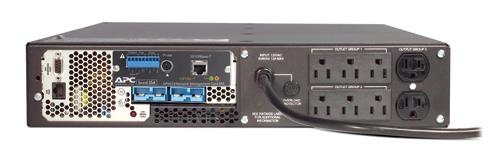

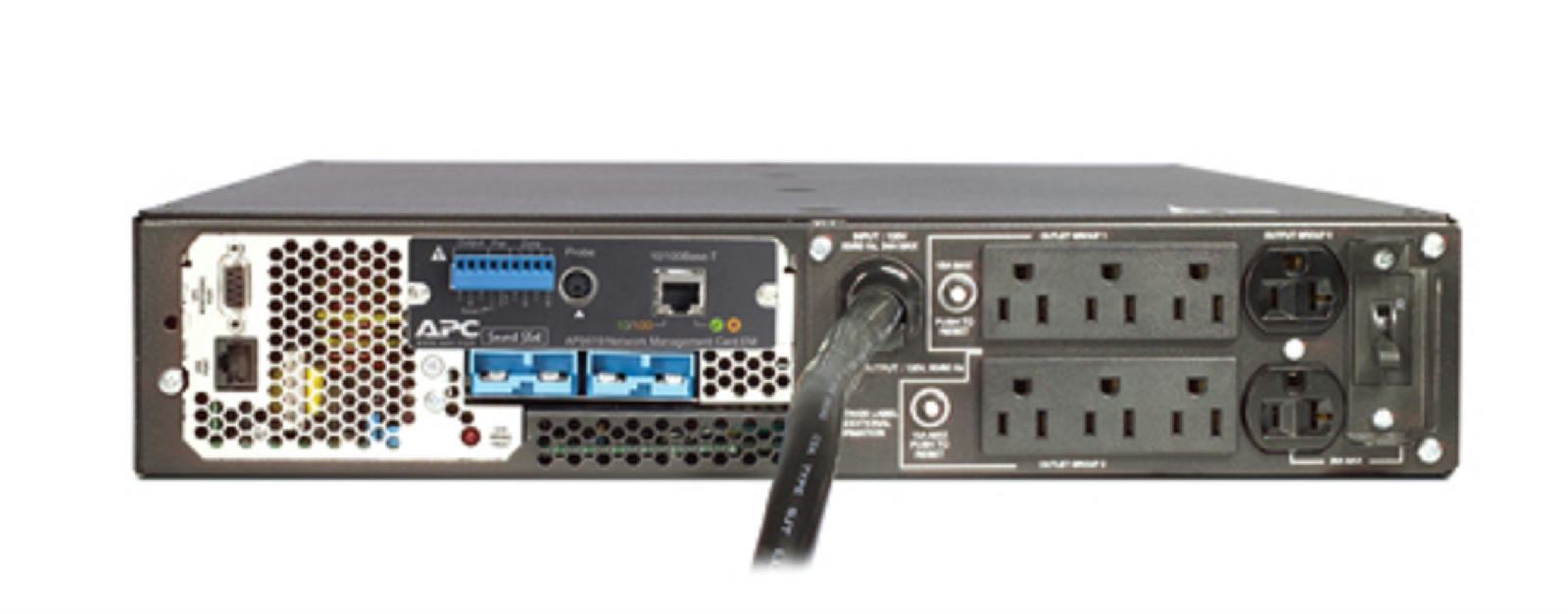

  • Output Connections
    (8) NEMA 5-15R (Battery Backup)
  • Bypass
    Internal Bypass (Automatic and Manual)

Input

  • Nominal Input Voltage
    120V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    NEMA 5-15P
  • Cord Length
    10ft ( 3.05meters )
  • Input voltage range for main operations
    82 - 147V
  • Input voltage adjustable range for mains operation
    75 - 154V
  • Number of Power Cords
    1

Batteries & Runtime

    • Battery type
      VRLA
    • Typical recharge time
      3hour(s)
    • Expected Battery Life (years)
      3 - 5
    • RBC Quantity
      1
    • Extendable Run Time
      1
    • Extended Run Options
      APC-Smart-UPS-XL-Modular-1500VA-120V-Rackmount-Tower

Communications & Management

  • Interface Port(s)
    DB-9 RS-232 , RJ-45 10/100 Base-T , SmartSlot , USB
  • Pre-Installed SmartSlot™ Cards
    AP9631

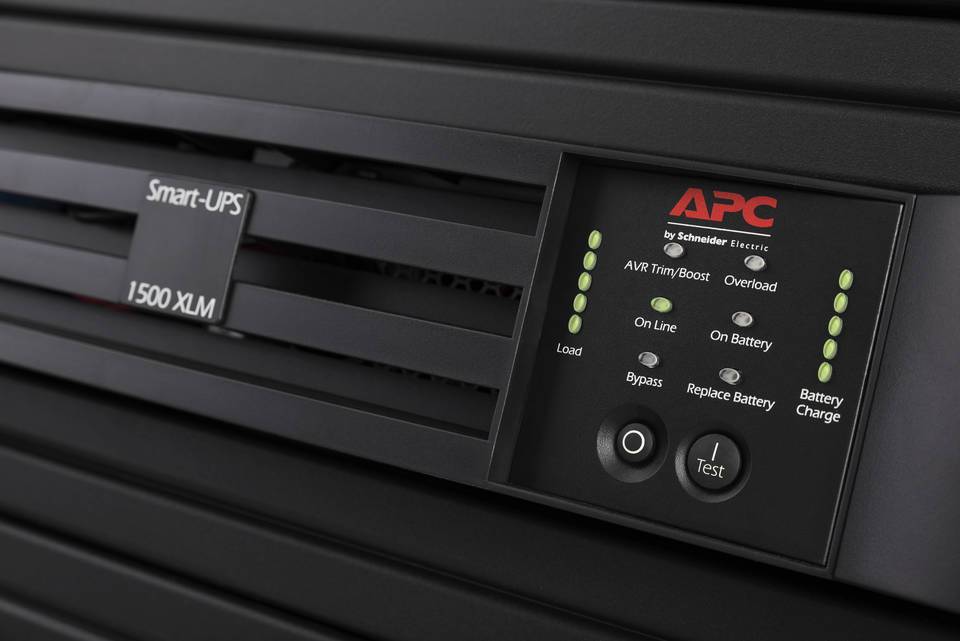

  • Control panel
    LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO)
    Optional

Surge Protection and Filtering

  • Surge energy rating
    540Joules
  • Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    3.4inches ( 86mm , 8.6CM )
  • Maximum Width
    17.0inches ( 432mm , 43.2CM )
  • Maximum Depth
    26.7inches ( 678mm , 67.8CM )
  • Rack Height
    2U
  • Net Weight
    103.0lbs. ( 46.82KG )
  • Shipping weight
    125.0lbs. ( 56.82KG )
  • Shipping Height
    9.84inches ( 250mm , 25.0CM )
  • Shipping Width
    23.46inches ( 596mm , 59.6CM )
  • Shipping Depth
    38.58inches ( 980mm , 98.0CM )
  • Color
    Black
  • Units per Pallet
    8.0

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-10000ft ( 0-3000meters )
  • Storage Temperature
    -5 - 55 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-30000ft ( 0-9000meters )
  • Audible noise at 1 meter from surface of unit
    55.0dBA
  • Online thermal dissipation
    300.0BTU/hr
View full details
