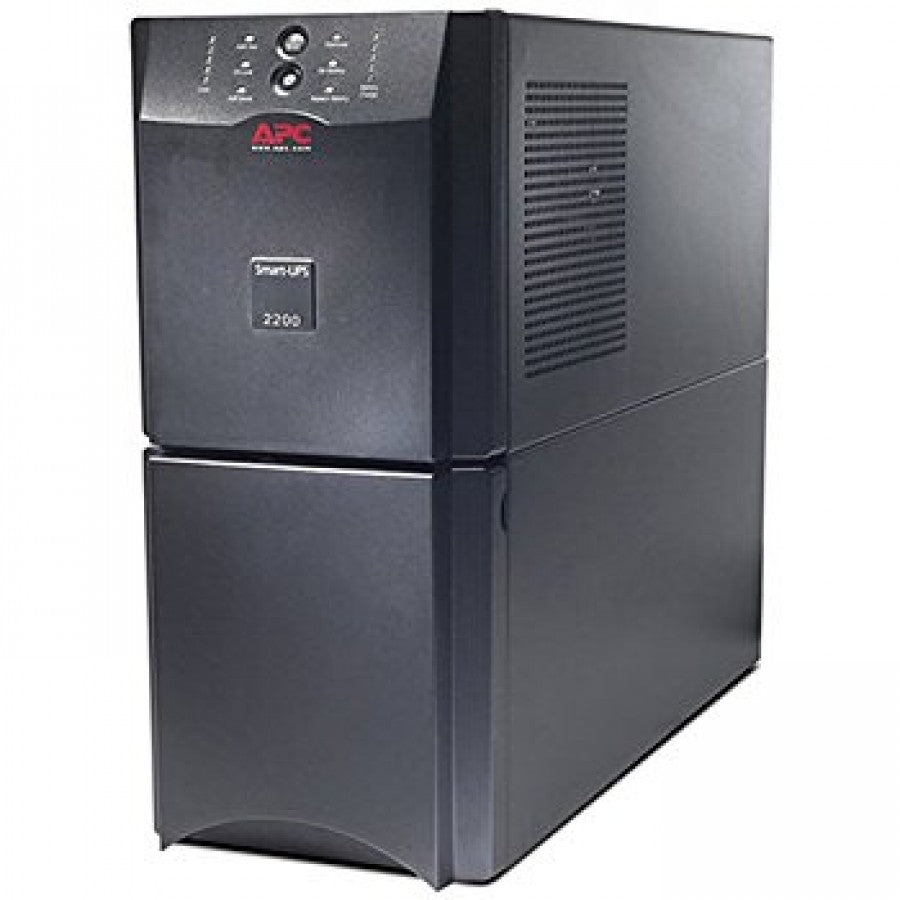

Refurbished APC SUA2200 Smart-UPS 2200VA/1980W 120V Tower UPS

Output

• Output power capacity
  1.98 KWatts / 2.2 kVA
• Max Configurable Power (Watts)
  1.98 KWatts / 2.2 kVA
• Nominal Output Voltage
  100V
• Output Voltage Distortion
  Less than 5% at full load
• Output Frequency (sync to mains)
  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Topology
  Line Interactive
• Waveform type
  Sine wave
• Output Connections
  (2) NEMA 5-20R (Battery Backup)
  (8) NEMA 5-15R (Battery Backup)
• Transfer Time
  2ms typical

Input

• Nominal Input Voltage
  100V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  NEMA L5-30P
• Cord Length
  8ft ( 2.44meters )
• Number of Power Cords
  1
• Maximum Input Current
  24.0A

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  4.5hour(s)
• Expected Battery Life (years)
  3 - 5
• RBC Quantity
  1

Communications & Management

• Interface Port(s)
  DB-9 RS-232 , SmartSlot , USB
• Control panel
  --
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)
  Yes
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  510Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  17.0inches ( 432mm , 43.2CM )
• Maximum Width
  7.7inches ( 196mm , 19.6CM )
• Maximum Depth
  21.42inches ( 544mm , 54.4CM )
• Net Weight
  112.3lbs. ( 51.05KG )
• Shipping weight
  134.0lbs. ( 60.91KG )
• Shipping Height
  22.0inches ( 559mm , 55.9CM )
• Shipping Width
  15.0inches ( 381mm , 38.1CM )
• Shipping Depth
  30.0inches ( 762mm , 76.2CM )
• Color
  Black
• Units per Pallet
  3.0

Environmental

• Operating Temperature
  32 - 104 °F ( 0 - 40 °C )
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-10000ft ( 0-3000meters )
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-50000ft ( 0-15000meters )
• Audible noise at 1 meter from surface of unit
  45.0dBA
• Online thermal dissipation
  275.0BTU/hr
