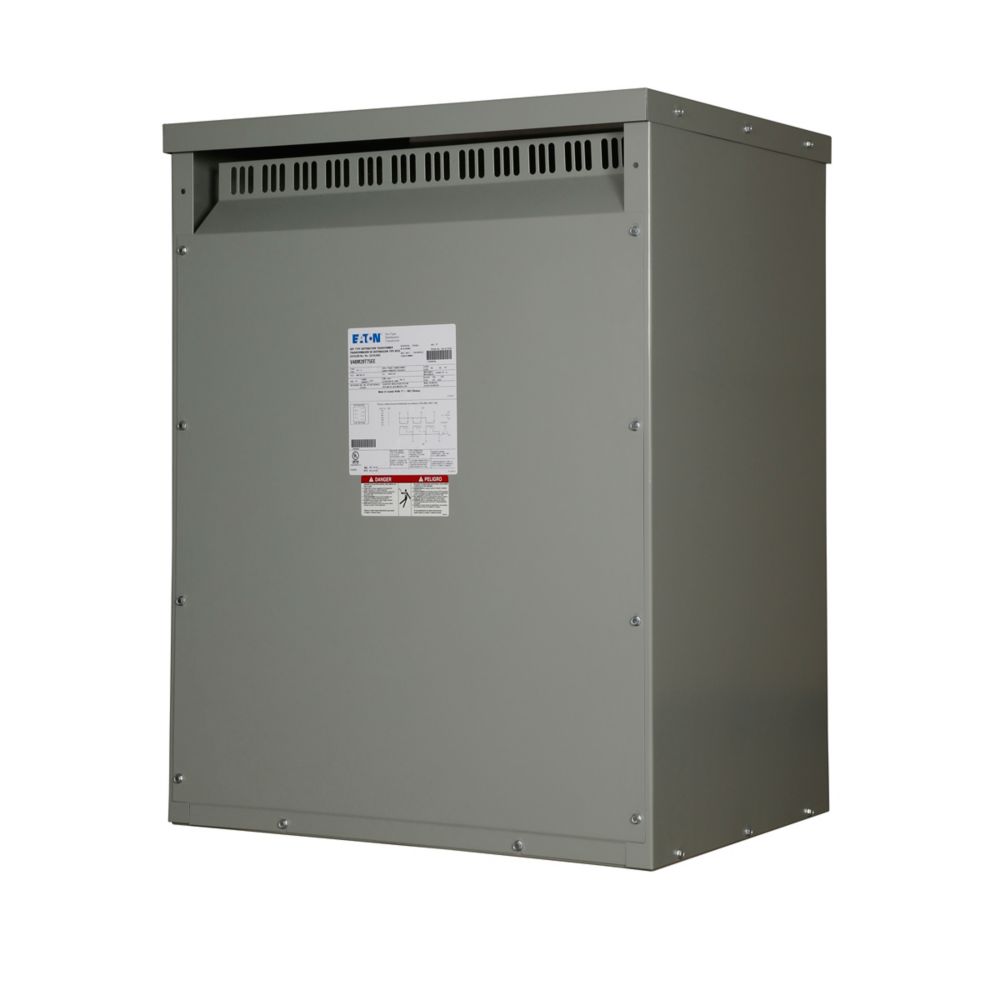

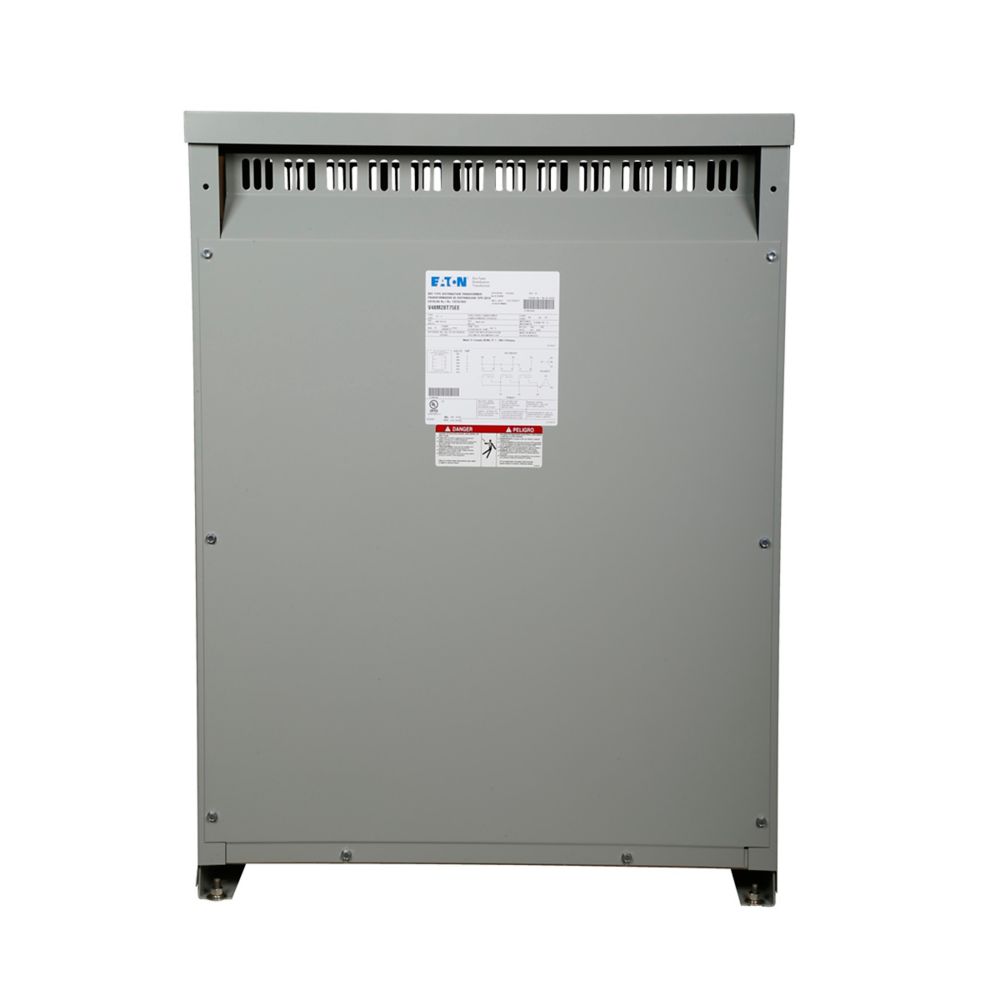

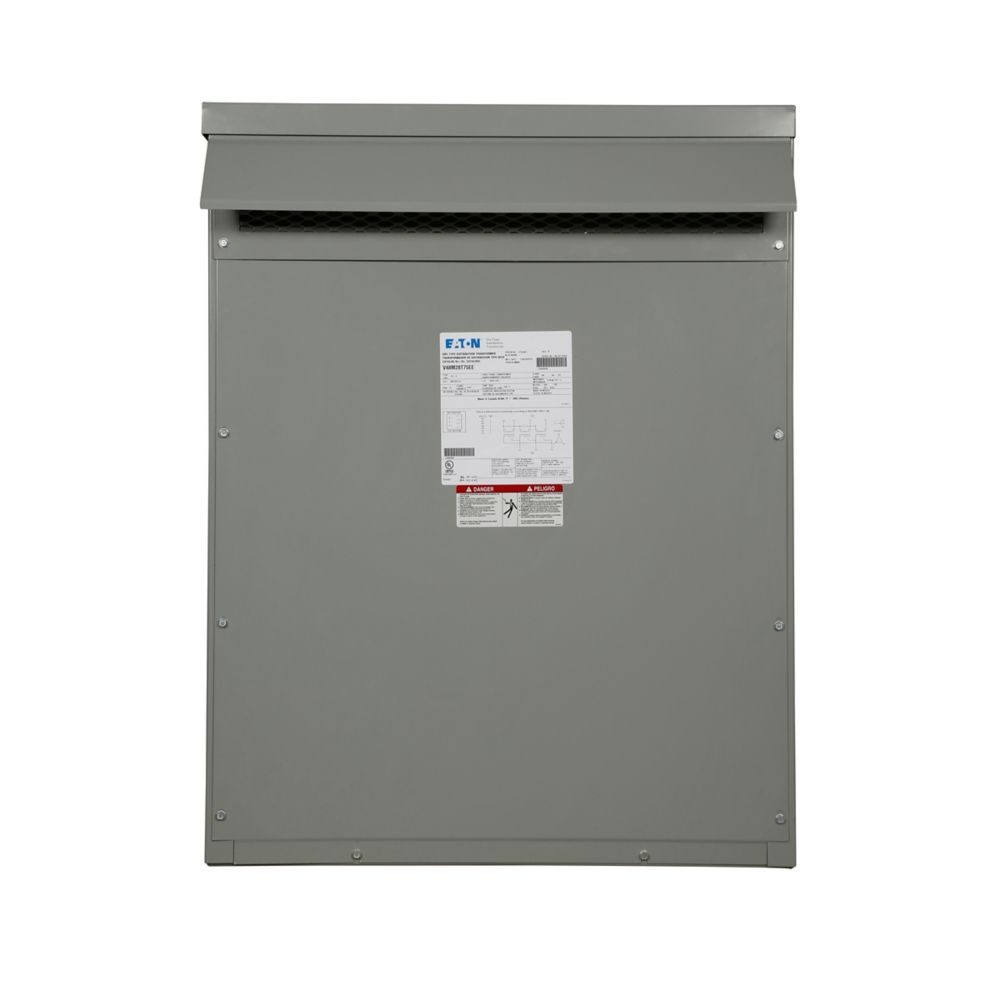

Eaton V48M28T12EE 3-Phase Step Down Transformer 480V - 208Y/120V 60HZ 112.5kVA
Eaton V48M28T12EE 3-Phase Step Down Transformer 480V - 208Y/120V 60HZ 112.5kVA
Regular price
$ 6,499.99 USD
Regular price
Sale price
$ 6,499.99 USD
Unit price
/
per
Couldn't load pickup availability
General specifications
Product Name
Eaton General purpose ventilated transformer
Catalog Number
V48M28T12EE
UPC
786680019371
Product Length/Depth
23.42 in
Product Height
32.02 in
Product Width
28.22 in
Product Weight
793 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEMA TP-1 Compliant
Certifications
UL Listed
Catalog Notes
NEMA TP-1 efficient
Physical Attributes
Coil material
Aluminum
Frame
916A
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
Dry Type Distribution Transformer
Performance Ratings
Frequency rating
60 Hz
Primary voltage
480 V
Secondary Voltage
208 Y/120 V
Temperature rise
150 °C rise
Volt ampere rating
112.5 kVA
Miscellaneous
Weathershield
WS19
