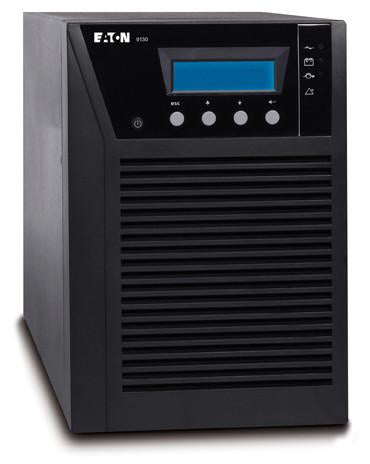

Eaton Powerware 9130 PW9130L1000T-XL 1000 VA 900 Watts 120V Tower UPS

The Eaton 9130 Tower UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of >95%, the 9130 UPS cuts energy costs while significantly extending battery service life with ABM technology. The 9130 UPS also has a bright LCD user interface to simplify monitoring.

Topology	Online, double-conversion
Catalog Number	PW9130L1000T-XL
UPC Number	NULL
Color	Black
Rating (VA/Watts)	1000/900
Diagnostics	Full system self-test
EcoControl	NULL
UPS Bypass	Automatic bypass
Dimensions (H x W x D, inches)	9.1 x 6.3 x 15
Weight (lbs)	32
Warranty	Two-year factory warranty
Contents (Ships with the following items)	1 ready-to-go UPS Software Suite CD USB Cable User Guide Quick Start Instructions Cord-Retention Brackets
Efficiency	>95% in high-efficiency mode; >86% in online mode
Electrical Input
Connection	(1) NEMA 5-15P
Input Cord	6 ft line cord
Input Voltage Range	80-144 Vac
Nominal Voltage	120 VAC
Frequency	50/60 Hz
Frequency Range	45–65 Hz
Nominal Current	8.3 A
Breaker Ratings	15A
Electrical Output
Output Receptacles	(6) NEMA 5-15R
On Utility Voltage Regulation	±3% of nominal
On Battery Voltage Regulation	±3% of nominal
Voltage Wave Shape (On Battery)	Sine wave
Power Factor	0.9
Frequency Regulation	±3% Hz online
Load Crest Factor	3 to 1
Load Segments	Two configurable, individually controlled receptacles
