FGC UPS Systems

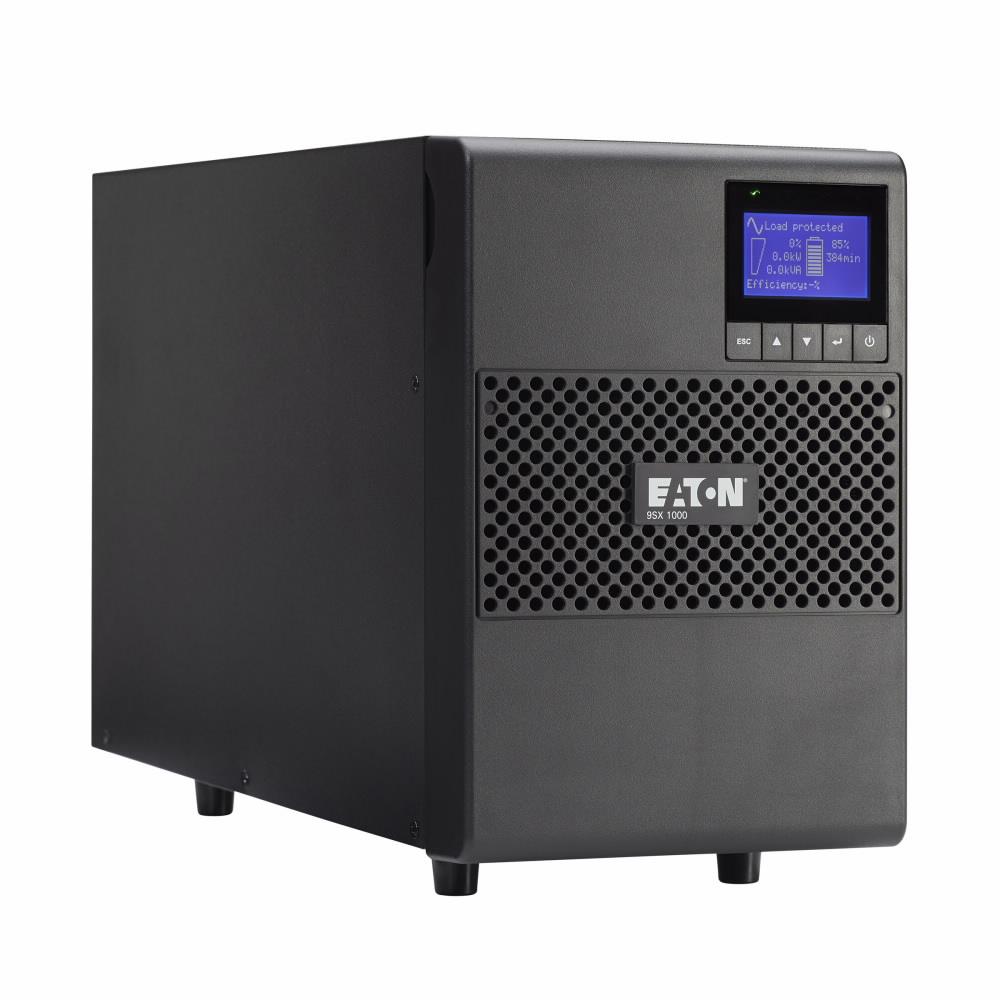

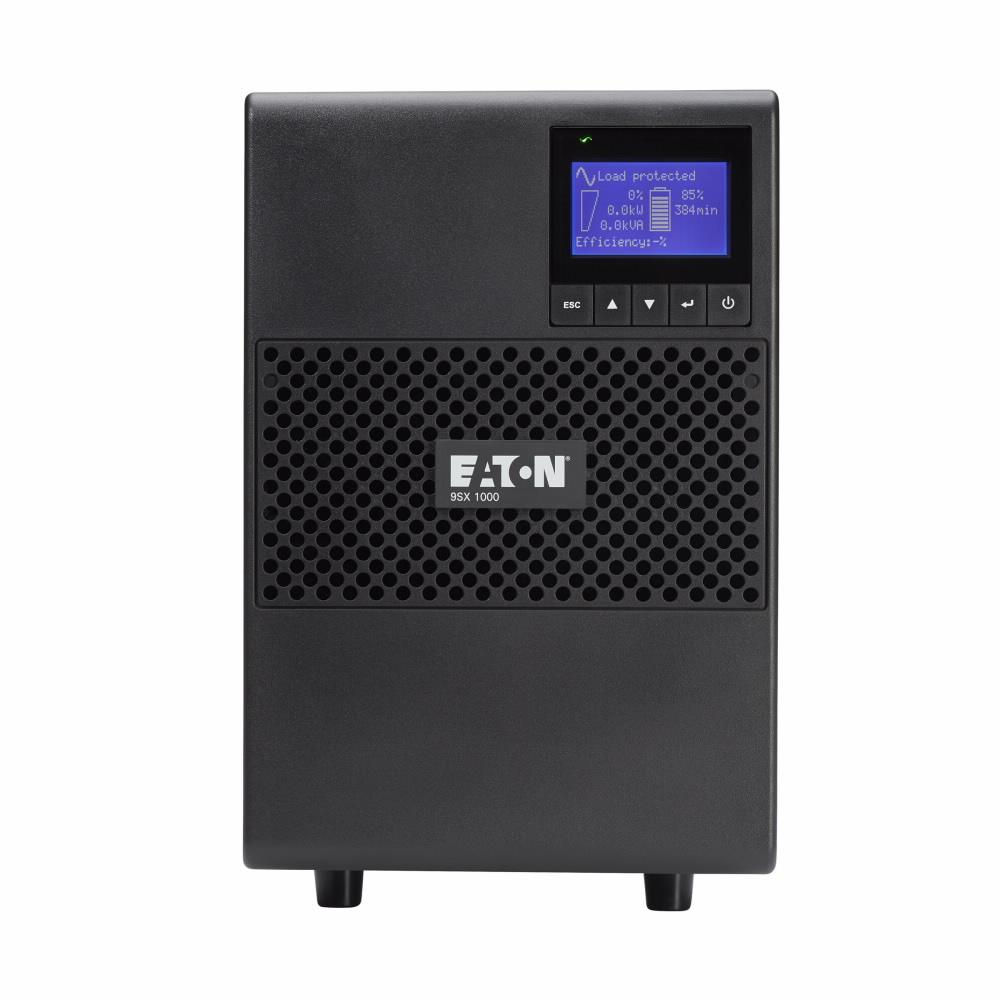

Eaton 9SX 9SX1000 1000VA 900W 120V Online Tower UPS

Eaton 9SX 9SX1000 1000VA 900W 120V Online Tower UPS

$ 979.99 USD
$ 1,534.00 USD $ 979.99 USD
Sale Sold out
The Eaton 9SX network UPS boasts an easy-to-read LCD display, double conversion topology and an internal static bypass, all in a convenient tower UPS form with a low total cost of ownership. Compatible with Eaton's network connectivity cards and Intelligent Power Management (IPM) software, this UPS is a vital piece of any physical or virtualized IT environment.



GENERAL SPECIFICATIONS

PRODUCT NAME
EATON 9SX UPS
CATALOG NUMBER
9SX1000
PRODUCT LENGTH
15.2 IN
PRODUCT HEIGHT
9.9 IN
PRODUCT WIDTH
6.3 IN
PRODUCT WEIGHT
32.6 LB
COMPLIANCES
FCC COMPLIANT
CE MARKED
CERTIFICATIONS
CULUS LISTED

BATTERY

BATTERY MANAGEMENT
ABM TECHNOLOGY (3-STAGE CHARGING EXTENDS BATTERY SERVICE LIFE BY 50% AND PROVIDES ADVANCE WARNING FOR BATTERY REPLACEMENT)
BATTERIES REPLACEMENT

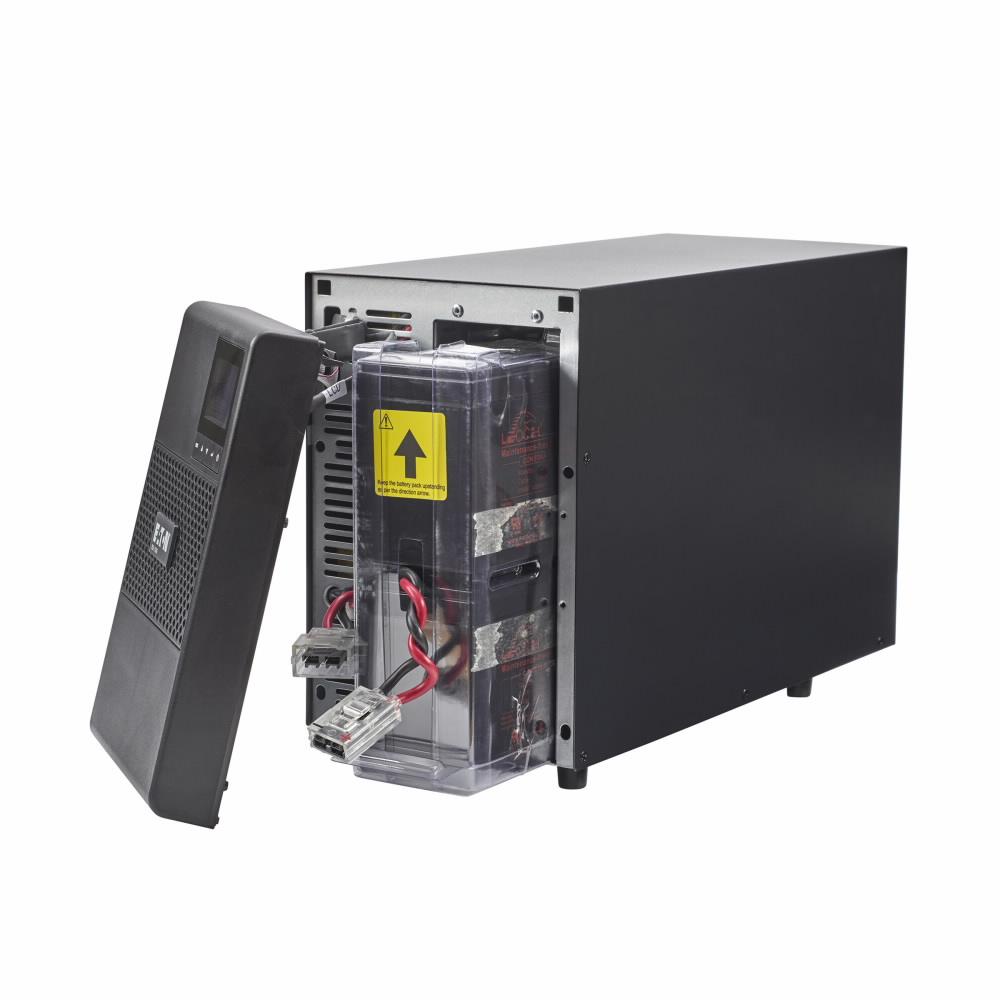

HOT-SWAPPABLE INTERNAL BATTERIES AND EXTENDED BATTERY MODULES (EBMS)
EXTENDED BATTERY CAPABILITY
YES

ELECTRICAL OUTPUT

RECEPTACLE
(6) 5-15R
OUTPUT POWER FACTOR
.9
OUTPUT WAVEFORM
TRUE SINE WAVE
VOLTAGE
120V
OUTPUT NOMINAL VOLTAGE
120V DEFAULT (100/110/120/125V)
OUTPUT FREQUENCY
50/60 HZ
FEED TYPE
1
VA RATING
1000 VA
TOPOLOGY
ONLINE/DOUBLE-CONVERSION
WATTAGE
900 W

ELECTRICAL INPUT

INPUT CONNECTION
5-15P
INPUT CORD LENGTH
8 FT
INPUT FREQUENCY RANGE
60 HZ: 50–70 HZ, 50 HZ: 40–60 HZ
INPUT POWER FACTOR
>.99

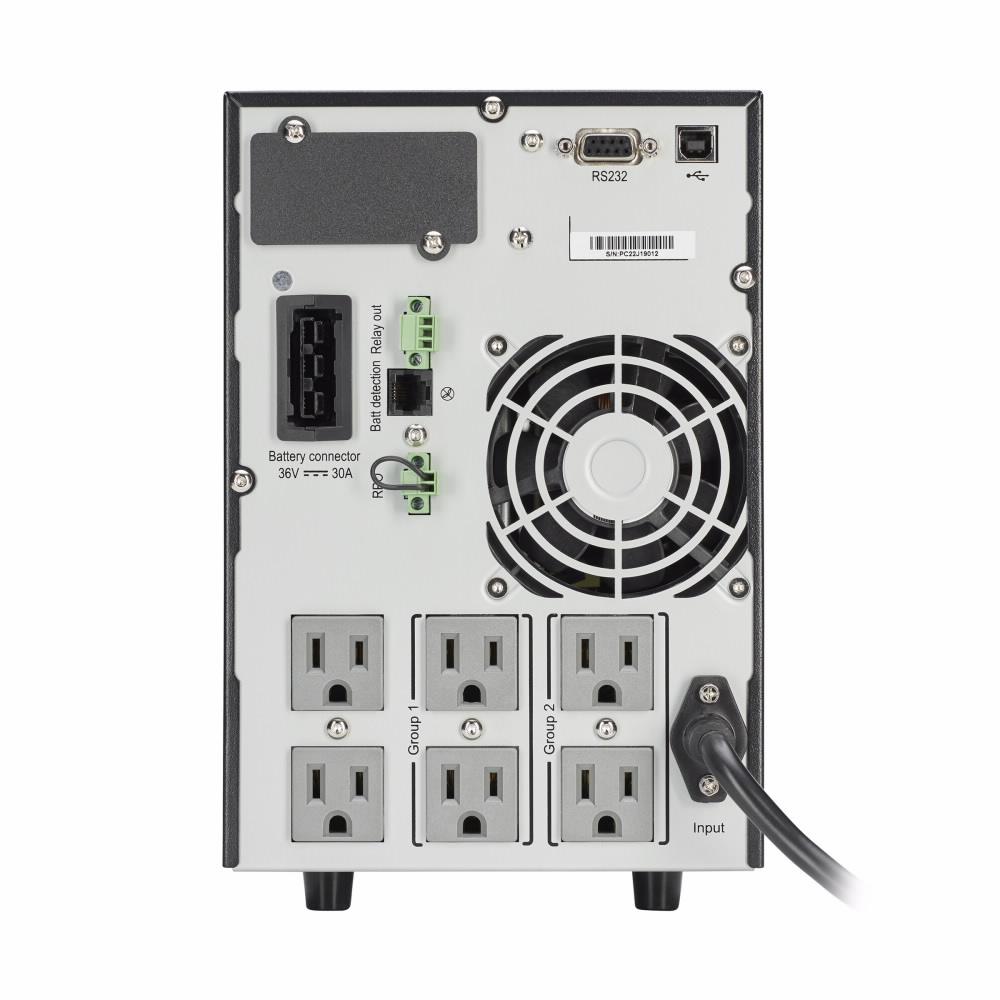

COMMUNICATIONS

COMMUNICATION
(1) MINISLOT
(1) USB PORT
(1)SERIAL RS232 PORT
(1)RPO/ROO/SIGNAL INPUT TERMINAL
(1) MINI-TERMINAL BLOCK FOR OUTPUT RELAY
EXPANSION SLOTS
(1) MINI-SLOT (MS) EXPANSION PORT. OPTIONAL CONNECTIVITY CARDS MAY BE ORDERED SEPARATELY.
-WEB/SNMP CARD PART NUMBER: NETWORK-MS
-GIGABIT WEB/SNMP CARD PART NUMBER: NETWORK-M2
-MODBUS CARD PART NUMBER: MODBUS-MS
-RELAY CARD PART NUMBER: RELAY-MS
USER INTERFACE
5-BUTTON GRAPHICAL USER INTERFACE
POTENTIAL FREE SWITCH CONTACT
YES

ENVIRONMENTAL

TEMPERATURE RANGE
0° TO 40°C (32° TO 104°F)

ADDITIONAL SPECIFICATIONS

FORM FACTOR
TOWER
MOUNTING
VERTICAL
CONSTRUCTION TYPE
FREE STANDING MODEL

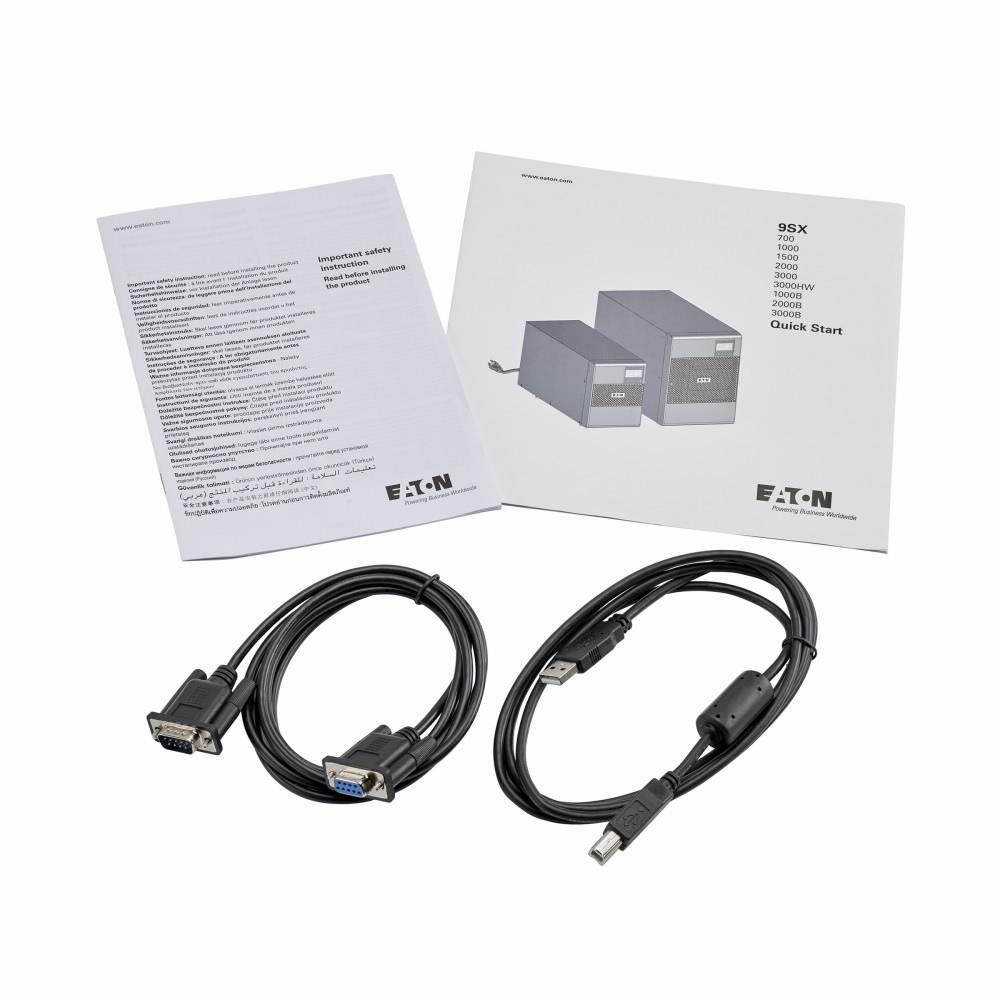

PACKAGE CONTENTS
9SX 1000VA UPS, QUICK START GUIDE, (2) IEC C13-C14 JUMPERS 1.8M, SERIAL CABLE, USB CABLE
INTERNAL BYPASS
YES

WARRANTY AND SUPPORT

STANDARD FACTORY WARRANTY
2-YEAR FACTORY WARRANTY
-2 years
-Parts, electronics, and batteries coverage
-Standard ground shipping
-Technical support
