Eaton 9PX 9PX6K 6kVA / 5400W 208/230V Output Rack/Tower UPS
New old stock. Opened to install new CSB batteries. Includes all original accessories and communication card.

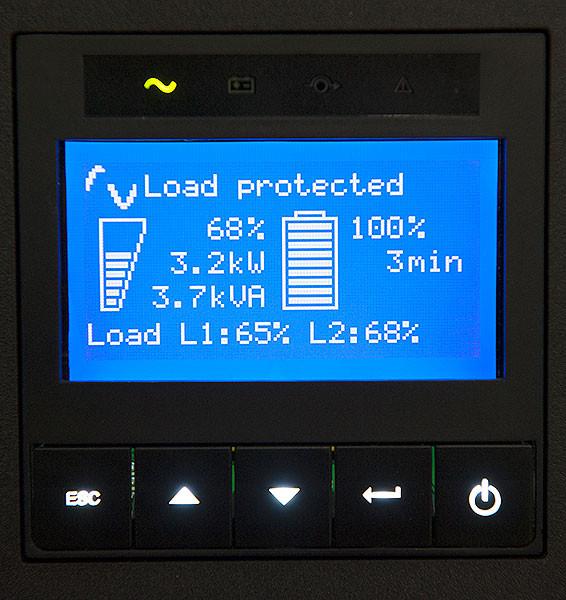

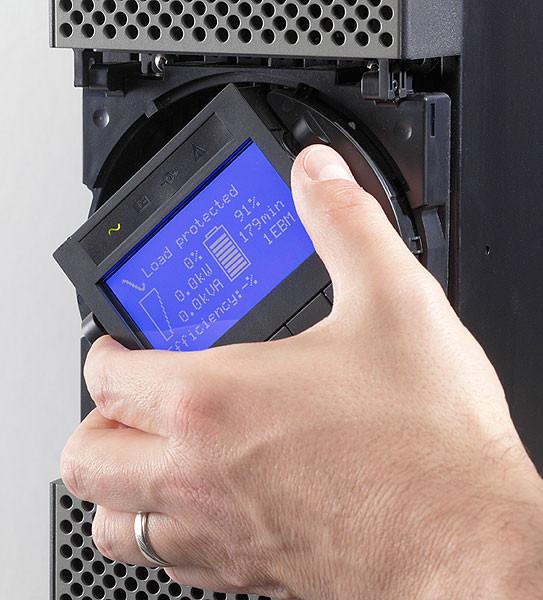

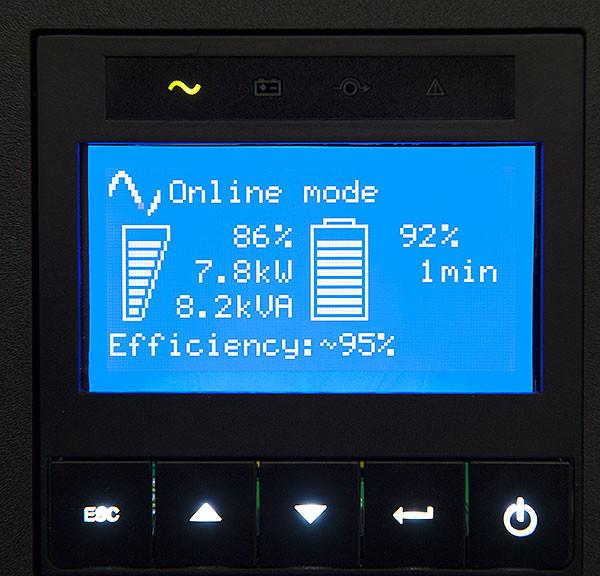

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR® qualified UPS, the 9PX’s graphical LCD interface and robust power management software makes managing your UPS easy — even in virtualized environments.
| Topology | Double-conversion online |
| Configuration | Rack/Tower |
| Catalog Number | 9PX6K |
| Color | Black and silver |
| Rating (VA/Watts) | 6000/5400 |
| Diagnostics | Full system self test at power up |
| UPS Bypass | MBP6K208 optional |
| Dimensions (H x W x D, inches) | 5.1 (3U) x 17.3 x 28.4 |
| Dimensions (H x W x D, mm) | 130 (3U) x 439 x 721 |
| Weight (kg) | 48 |
| Weight (lbs) | 106 |
| Rail Kit Included | 4-post rail kit and tower pedastals included |
| Remote Emergency Power off (REPO) | ROO/RPO: Rear deck emergency stop connectors (for remote on/off and power off) |
| Contents (Ships with the following items) |
9PX6K 6 kVA UPS Network-MS Web/SNMP card 4-post rail kit User manual Quick start guide Tower pedestals Intelligent Power Software Suite CD RS-232 serial cable USB cable Cable gland for hardwire connection Phillips head screw driver |
| Efficiency | 93% with resistive load |
| Connection |
(1) Terminal block with L6-30P
|
| Input Cord | 6 feet (1.8 meters) |
| Input Voltage Range | Full load: 176-276V, Derating: 100-276V |
| Nominal Voltage | 208V default (200/208/220/230/240V) |
| Frequency | 50/60 Hz |
| Frequency Range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input Power Factor | >99 |
| Input Current Distortion | <5% |
| Electrical Output | |
| Nominal Voltage | 208V default (200/208/220/230/240V) |
| Output voltage regulation | ±1% steady-state |
| Voltage THD | <2% for linear loads |
| Output Receptacles |
(2) NEMA L6-20R
(2) NEMA L6-30R
Hardwired - see manual for terminal block layout
|
| Power Factor | 0.9 |
| Transfer Time | 0 ms |
| Circuit Breaker | (2) 20A for L6-20R |
