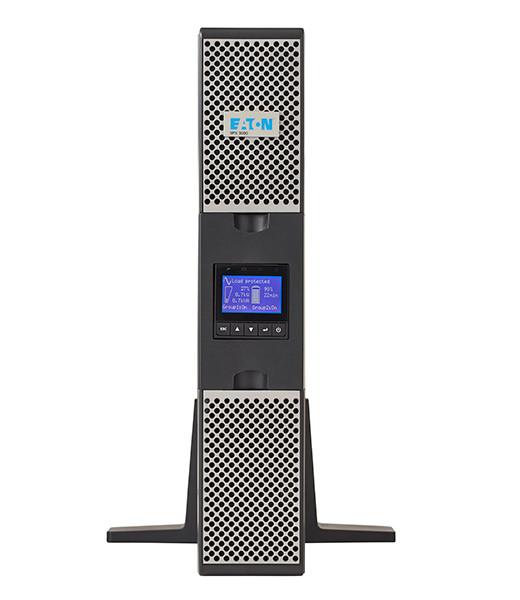

Eaton 9PX SP 9PX3000RTN 3000VA/2700W 120V 2U Rack/Tower UPS w/Network Card

Eaton 9PX SP 9PX3000RTN 3000VA/2700W 120V 2U Rack/Tower UPS w/Network Card

L5-30P In /(1) L5-30R, (8) 5-20R Out

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 2 and 3 kVA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

General
Topology	Double-conversion online
Configuration	Rack/Tower
Catalog Number	9PX3000RTN
Color	Black and silver
Rating (VA/Watts)	3000/2700
Diagnostics	Full system self test at power up, and ABM test every 30 days
UPS Bypass	EHBPL3000R-PDU1U optional
Dimensions (H x W x D, inches)	3.4 (2U) x 17.3 x 23.8
Dimensions (H x W x D, mm)	86.5 x 440 x 605
Weight (kg)	28.6
Weight (lbs)	63.1
Warranty	2 years
Rail Kit Included	4-post rail kit and tower pedestals included
Remote Emergency Power off (REPO)	ROO/RPO: Rear deck emergency stop connectors (for remote on/off and power off)
Contents (Ships with the following items)	9PX3000RTN 3 kVA UPS Network-MS Web/SNMP card 4-post rail kit Safety manual User manual Tower pedestals RS-232 serial cable USB cable Intelligent Power Software Suite CD
Efficiency	91% with resistive load
Electrical Input
Connection	(1) NEMA L5-30P
Input Cord	8 feet
Input Voltage Range	Full load: 100-144V, <30% load: 60-144V
Nominal Voltage	120V default (100/110/120/125V)
Frequency	50/60 Hz
Frequency Range	60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input Power Factor	>.99
Input Current Distortion	<5%
Electrical Output
Nominal Voltage	120V default (100/110/120/125V)
Output voltage regulation	±1% steady-state
Voltage THD	<3% for linear loads
Output Receptacles	(6) NEMA 5-20R (1) NEMA L5-30R
Transfer Time	0 ms
Circuit Breaker	(2) 20A for 5-20R
