Eaton 9PX SP 9PX2000RT-L 2000VA/1800W 120V 2U Rack/Tower Lithium Ion UPS

Eaton 9PX SP 9PX2000RT-L 2000VA/1800W 120V 2U Rack/Tower Lithium Ion UPS

$ 3,649.99 USD
$ 2,951.00 USD $ 3,649.99 USD
Sale Sold out

Eaton 9PX SP 9PX2000RT-L 2000VA/1800W 120V 2U Rack/Tower Lithium Ion UPS

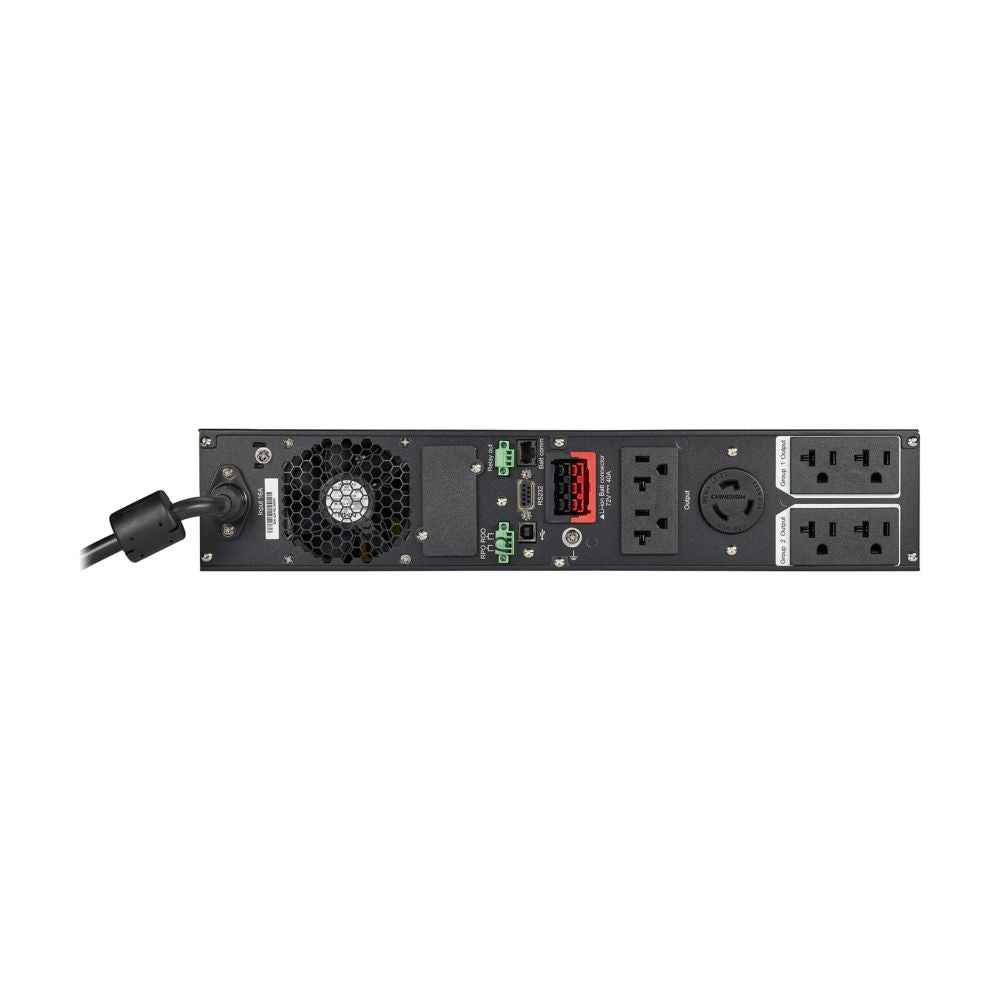

5-20P In / (6) 5-20R (1) L5-20R Out

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 2 and 3 kVA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

General specifications

Product Name
Eaton 9PX UPS
Catalog Number
9PX2000RT-L
UPC
743172105370
Product Length/Depth
23.82 in
Product Height
3.41 in
Product Width
17.32 in
Product Weight
50.71 lb
Warranty
5 year limited
Compliances
CE Marked
FCC part 15 Class B
IEC 62040-2 Cat C1
Certifications
cULus Listed
NOM

Battery

Runtime graph
View runtime graph
Battery management
Integrated battery management system (BMS) for temperature regulation and life cycle monitoring
Battery replacement
Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type
Lithium-ion
Battery Chemistry
Lithium Iron Phosphate (LiFePo4)
Extended battery capability

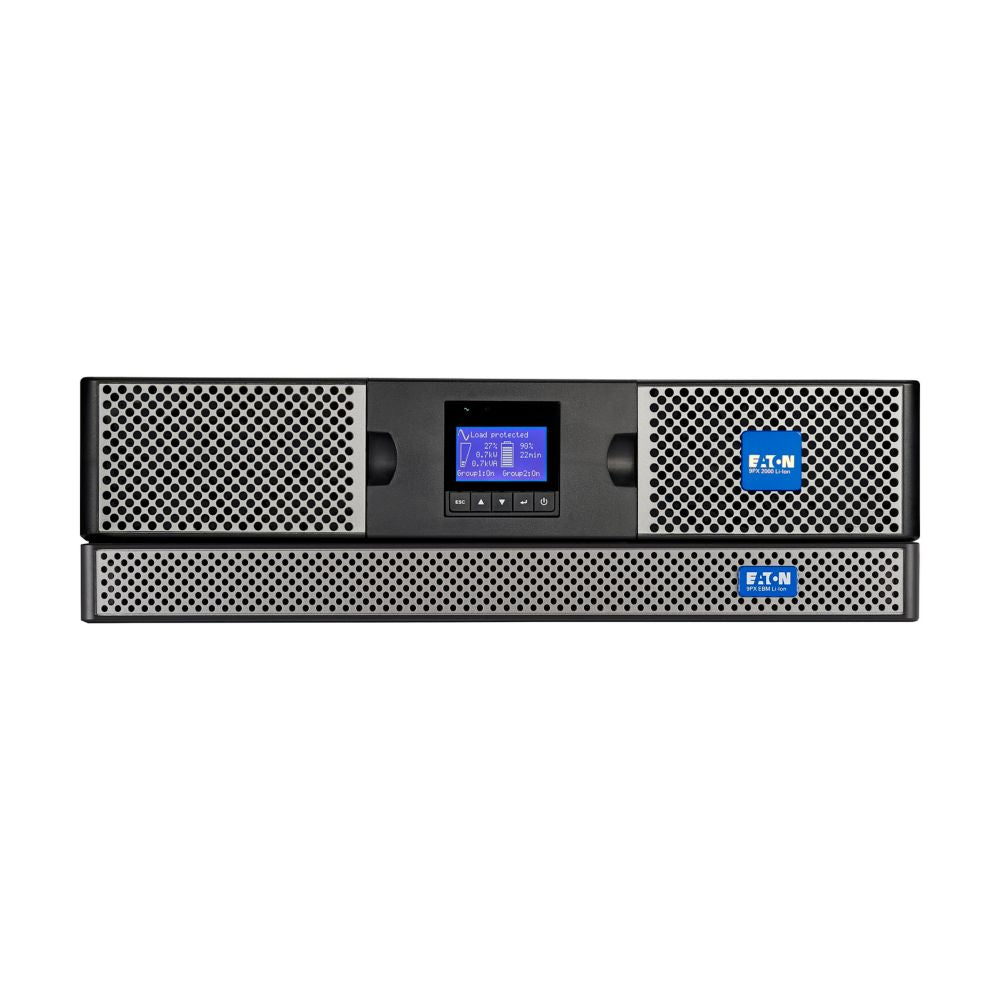

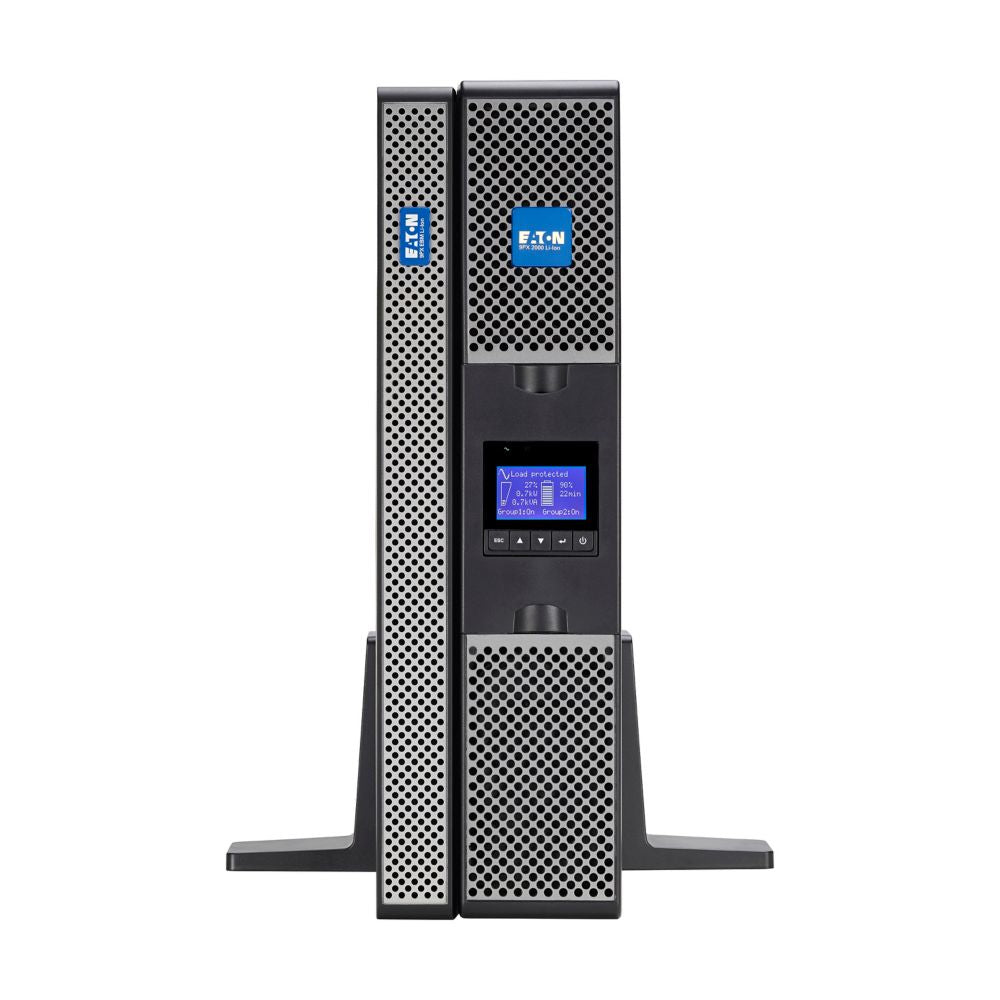

Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT-L

Electrical output

Receptacle
(6) 5-20R, (1) L5-20R, 120V
Topology
Online/Double-conversion
Wattage
1800 W
VA rating
2000 VA
Output waveform
True sine wave
Voltage
120V
Output power factor
0.9
Output nominal voltage
120V default (100/110/120/125V)
Output voltage range
±1% steady-state
Output frequency
50/60 Hz

Electrical input

Input connection
5-20P
Input cord length
8 ft
Input nominal voltage
120V default (100/110/120/125V)
Input frequency range
60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz
Input power factor
>0.99 typical

Communications

Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Expansion slots
  • (1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately.
  • Gigabit Network Card part number: NETWORK-M3
  • Modbus card part number: INDGW-M2
  • Relay card part number: RELAY-MS
Software compatibility
Intelligent Power Software Suite
User interface
Graphical display, 5-button programmable menu

Environmental

Altitude
0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
BTU Rating
Online: 578, Battery: 974
Noise level
<47 dB at 1 meter
Relative humidity
0-96% non-condensing
Temperature range
0° to 40°C (32° to 104°F)

Additional specifications

Form factor
Rack/tower
Rack size
2U
Rack mounting kit
Yes
Efficiency
91 %
Package contents
  • UPS
  • Quick start guide
  • Safety instructions
  • USB communciation cable
  • RS-232 serial communication cable
  • 4-post rail for 19-inch enclosures
  • Software leaflet
  • Software leaflet
  • 2 pedestals for tower position
Internal bypass
Yes

Warranty and support

Standard factory warranty
  • 5-YEAR FACTORY WARRANTY
  • - 5 years
  • - Parts, electronics and batteries coverage
  • - Standard ground shipping
  • - Technical support
