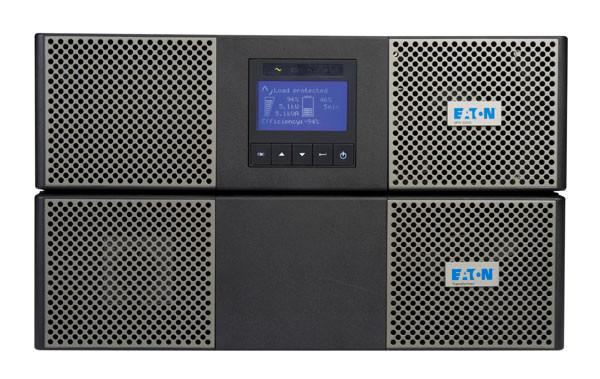

Eaton 9PX 9PX8KTF5 8KVA 7200 Watt 120/208/230V UPS w/11 KVA EBM, 11 KVA MBP, 5KVA Transformer
Eaton 9PX 9PX8KTF5 8KVA 7200 Watt 120/208/230V UPS w/11 KVA EBM, 11 KVA MBP, 5KVA Transformer
Regular price
$ 12,999.00 USD
Regular price
$ 14,468.00 USD
Sale price
$ 12,999.00 USD
Unit price
per
Couldn't load pickup availability

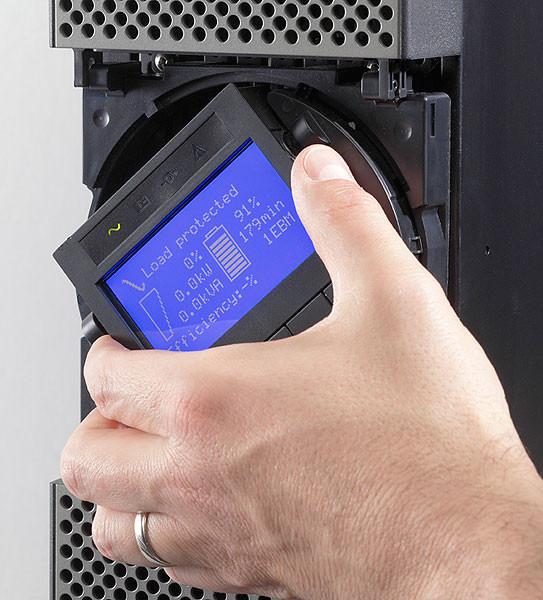

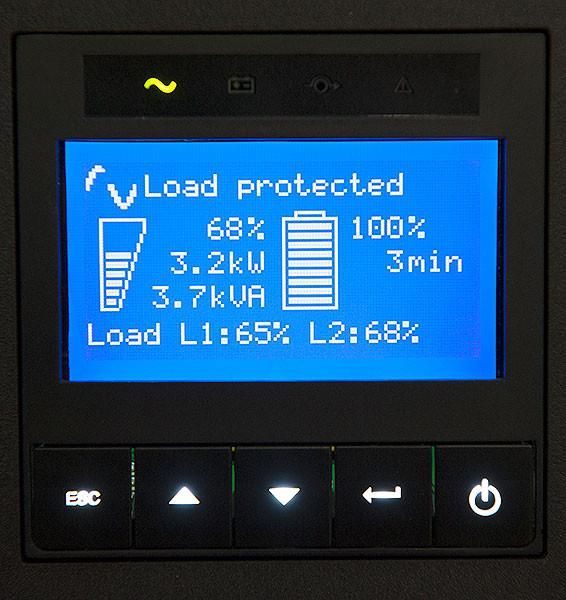

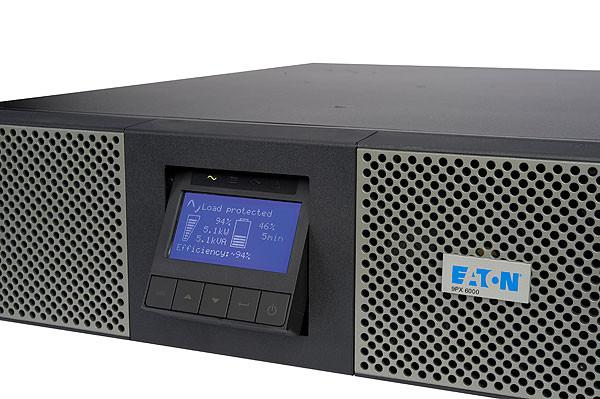

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR® qualified UPS, the 9PX’s graphical LCD interface and robust power management software makes managing your UPS easy — even in virtualized environments.
| Topology | Double-conversion online |

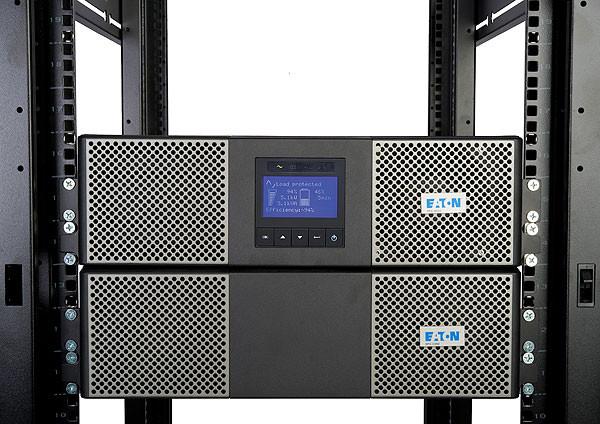

| Configuration | Rack/Tower |
| Catalog Number | 9PX8KTF5 |
| Color | Black and silver |
| Rating (VA/Watts) | 8000/7200 |
| Diagnostics | Full system self test at power up |
| UPS Bypass | Yes, ships with MBP11K208 |
| Dimensions (H x W x D, inches) | 15.3 (9U) x 17.3 x 30.0 |
| Dimensions (H x W x D, mm) | 389 (6U) x 439 x 762 |
| Weight (kg) | 136 |
| Weight (lbs) | 300 |
| Warranty | 2 years |
| Rail Kit Included | 4-post rail kit and tower pedastals included |
| Remote Emergency Power off (REPO) | ROO/RPO: Rear deck emergency stop connectors (for remote on/off and power off) |
| Contents (Ships with the following items) |
9PX8KPM 8 kVA 3U UPS power module 9PXEBM240RT 3U extended battery module MBP11K208 rear-mount maintenance bypass 9PXTFMR5 120V Stepdown Transformer Network-MS Web/SNMP card 4-post rail kit User manual Quick start guide Tower pedestals Intelligent Power Software Suite CD RS-232 serial cable USB cable Cable gland for hardwire connection Phillips head screw driver |

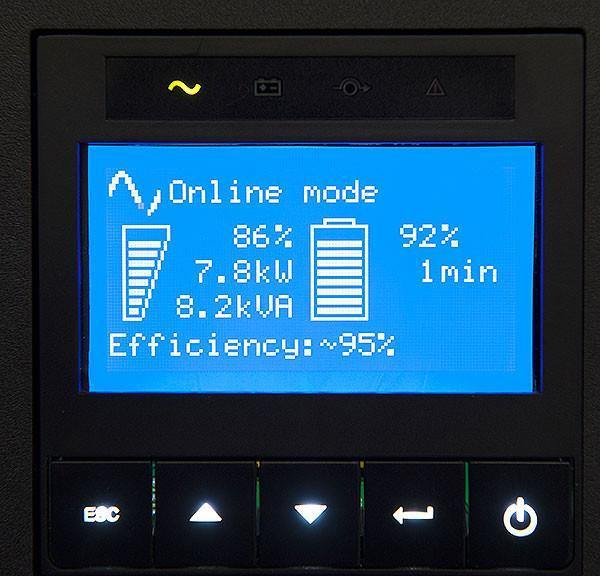

| Efficiency | 94% with resistive load |
| Electrical Input | |
| Connection |
Hardwired - see manual for terminal block layout
|
| Input Cord | None; hardwired |
| Input Voltage Range | Full load: 176-276V, Derating: 100-276V |
| Nominal Voltage | 208V default (200/208/220/230/240/250V) |
| Frequency | 50/60 Hz |
| Frequency Range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input Power Factor | >99 |
| Input Current Distortion | <5% |
| Electrical Output | |
| Nominal Voltage | 208V default (200/208/220/230/240/250V) |
| Output voltage regulation | ±1% steady-state |
| Voltage THD | <2% for linear loads |
| Output Receptacles |
(18) NEMA 5-20R
(2) NEMA L6-30R
|
| Power Factor | 0.9 |
| Transfer Time | 0 ms |
| Circuit Breaker | (3) 30A for L6-30R; (6) 20A for 5-20R |
