Eaton

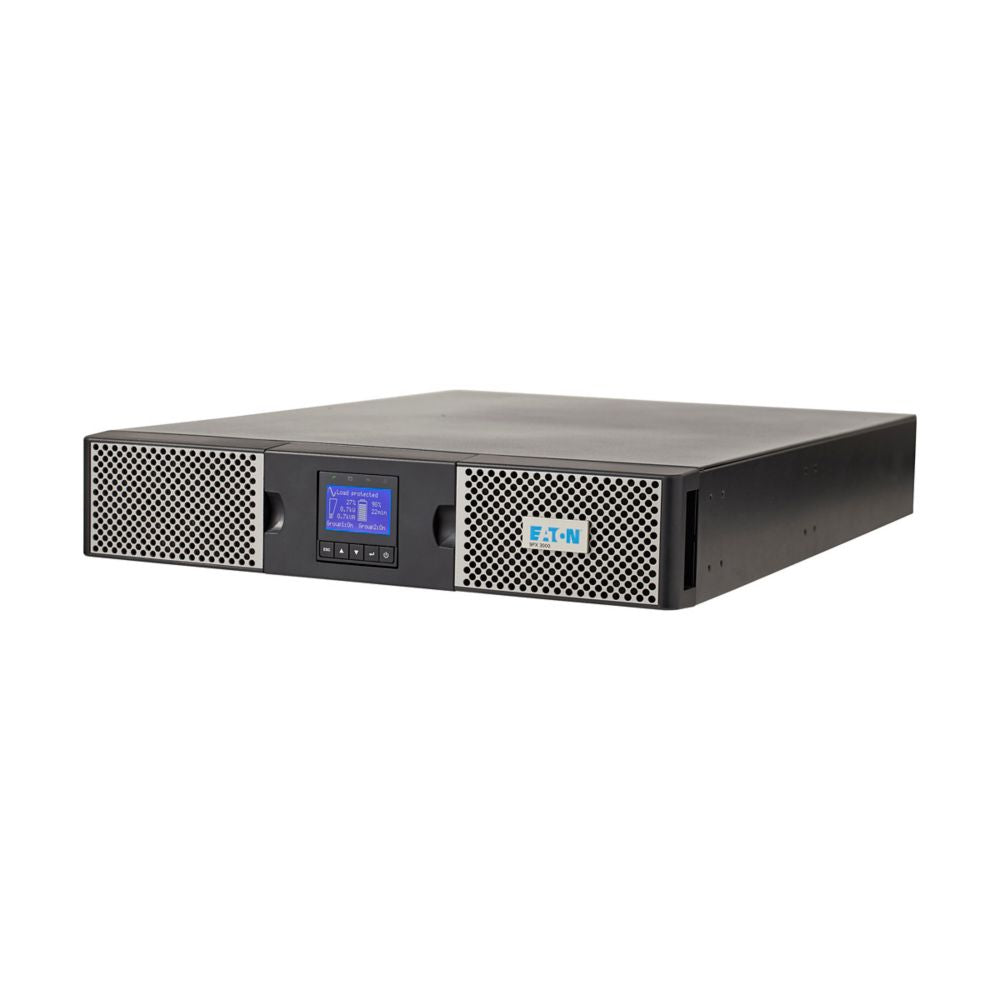

Eaton 9PX 9PX1500RT 1500VA/1350W 120V 2U Rack/Tower UPS

Eaton 9PX 9PX1500RT 1500VA/1350W 120V 2U Rack/Tower UPS

$ 1,849.99 USD
$ 2,900.00 USD $ 1,849.99 USD
Sale Sold out

Eaton 9PX 9PX1500RTN 1500VA/1350W 120V 2U Rack/Tower UPS w/Network Card

5-15P In / (8) 5-15R Out

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

General specifications

Product Name
Eaton 9PX UPS
Catalog Number
9PX1500RTN
UPC
743172081629
Product Length/Depth
17.7 in
Product Height
3.4 in
Product Width
17.3 in
Product Weight
42.5 lb
Warranty
3 year limited
Compliances
IEC 62040-2 Cat C1
CISPR22 Class B
FCC part 15 Class B
VCCI Class B
CE Marked
Certifications
cULus Listed
NOM

Battery

Runtime graph
View runtime graph
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Battery replacement
Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type
Sealed, lead-acid
Extended battery capability
Add up to 4 extended battery modules (EBM). Part number 9PXEBM48RT

Electrical output

Receptacle
(8) 5-15R
Topology
Online/Double-conversion
Wattage
1350 W
VA rating
1500 VA
Output waveform
True sine wave
Voltage
120V
Output power factor
0.9
Output nominal voltage
120V default (100/110/120/125V)
Output voltage range
±1% steady-state
Output frequency
50/60 Hz

Electrical input

Input connection
5-15P <a href="https://www.eaton.com/mdmfiles/PDM23604729/5-15P_DW/500x500_72dpi">5-15P</a>
Input cord length
8 ft
Input nominal voltage
120V default (100/110/120/125V)
Input frequency range
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input power factor
>0.99 typical

Communications

Communication
Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
Expansion slots
(1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M3) included
Ethernet interface
Yes
Includes network card
Yes
Software compatibility
Intelligent Power Software Suite

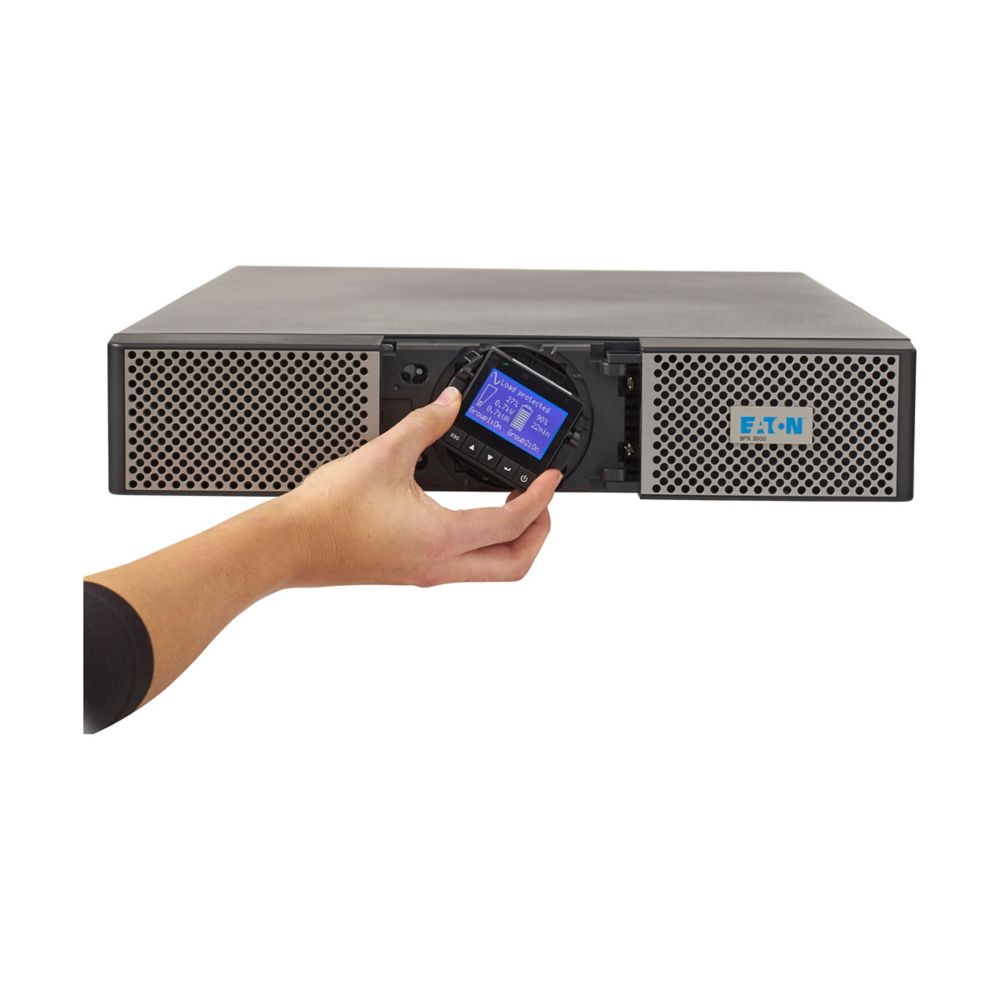

User interface
Graphical display, 5-button programmable menu

Environmental

Altitude
0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
BTU Rating
Online: 512, Battery: 897
Noise level
<40 dB at 1 meter
Relative humidity
0-96% non-condensing
Temperature range
0° to 40°C (32° to 104°F)

Additional specifications

Special features
Gigabit Network Card (NETWORK-M3) included

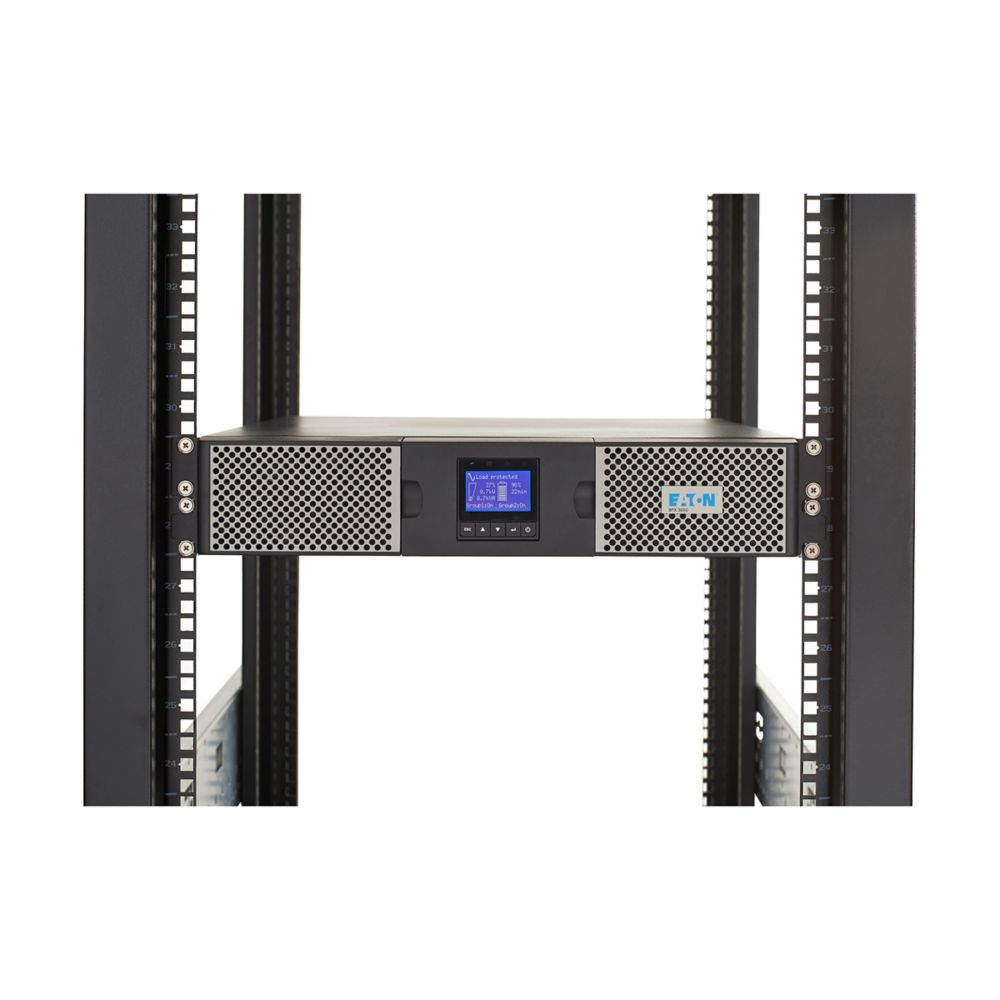

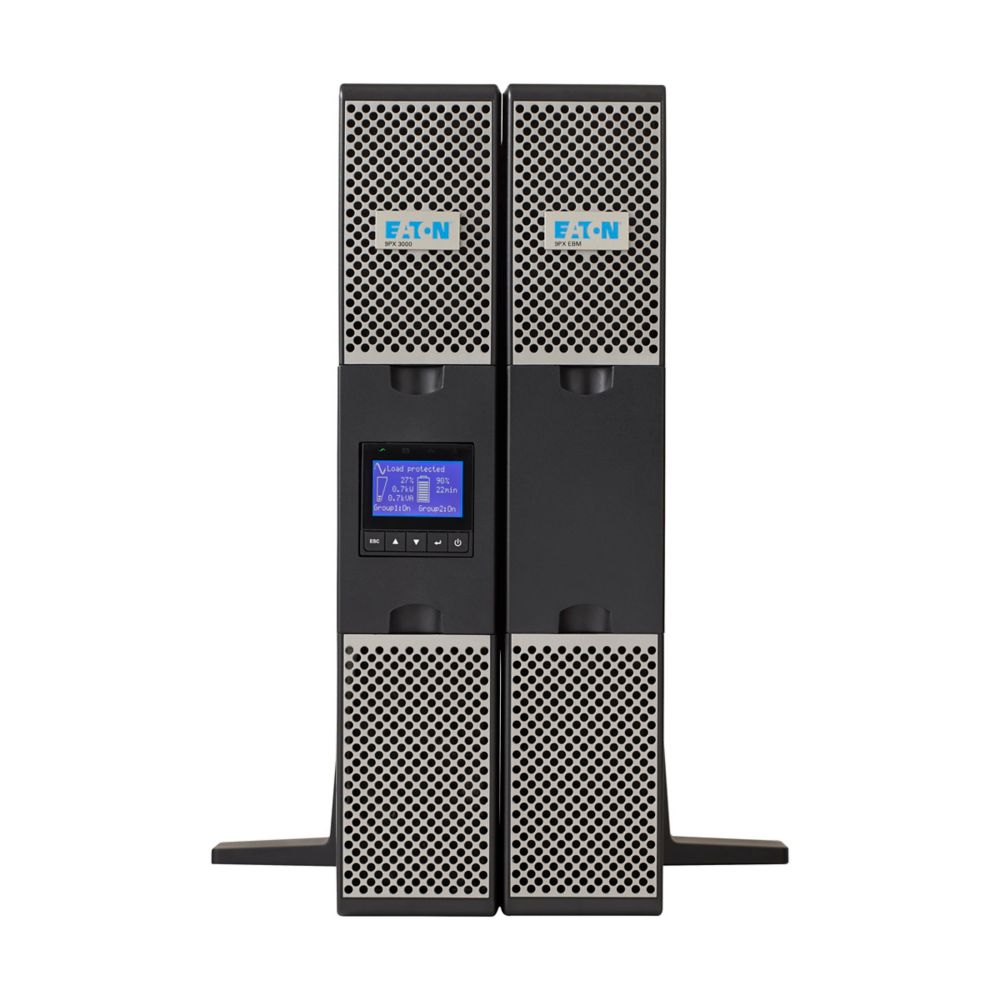

Form factor
Rack/tower
Rack size
2U
Rack mounting kit
Yes
Efficiency
90%
Package contents
  • 9PX1500RTN UPS
  • Gigabit Network Card (Network-M3)
  • 4-post rail kit
  • Safety manual
  • User manual
  • Tower pedestals
  • RS-232 serial cable
  • USB cable
  • Intelligent Power Software Suite CD
Internal bypass
Yes

Warranty and support

Standard factory warranty
  • 3-YEAR FACTORY WARRANTY
  • - 3 years
  • - Parts, electronics and batteries coverage
  • - Standard ground shipping
  • - Technical support
Extended service plans
  • ADVANCED DEPOT EXCHANGE
  • - 5-year depot repair: 9SW5Y-1500UC
  • - Expedited parts coverage for 5 years
  • - Parts, electronics and UPS batteries coverage
  • - Next business day shipping
  • - Technical support
  • 5-YEAR ON-SITE PLAN: WFLN75XX-2509UC
  • - On-site parts and labor coverage for years 5
  • - Parts, electronics and UPS batteries coverage
  • - 24x7 on-site labor coverage, next-day response
  • - Next-day shipping
  • - Technical support
View full details
