Eaton 9130 PW9130i3000R-XL2U 3000 VA 2700 Watt 230 V UPS International Model

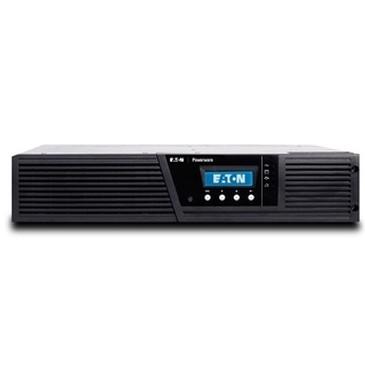

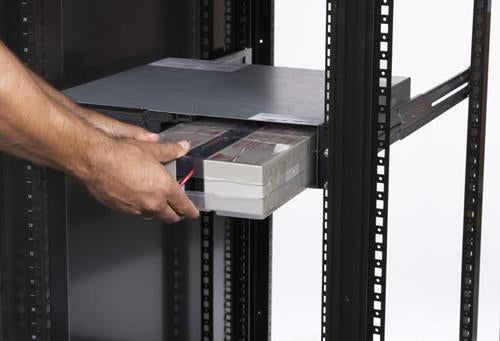

The Eaton 9130 Rackmount UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of >95%, the 9130 UPS cuts energy costs while packing up to three kVA of power into only 2U of rack space. The 9130 UPS significantly extends battery service life with ABM technology and also has a bright LCD user interface to simplify monitoring.

Topology	Online, double-conversion
Configuration	Rackmount
Catalog Number	PW9130i3000R-XL2U
Color	Black
Rating (VA/Watts)	3000/2700
Diagnostics	Full system self-test
UPS Bypass	Automatic bypass
Dimensions (H x W x D, inches)	3.4 x 17.2 x 23.6
Weight (lbs)	65
Warranty	Two-year factory warranty
Rail Kit Included	Included with all rackmount units
Remote Emergency Power off (REPO)	Emergency shutdown control through the REPO port
Contents (Ships with the following items)	1 ready-to-go UPS Software Suite CD USB Cable User Guide Quick Start Instructions 4-post Rail Kit (2) IEC to IEC Power Cords
Efficiency	>95% in high-efficiency mode; >86% in online mode
Electrical Input
Connection	(1) IEC-320-C20
Input Cord	6 ft. Detachable
Input Voltage Range	160-276 Vac
Nominal Voltage	230V
Frequency	50/60 Hz
Frequency Range	45–65 Hz
Nominal Current	13 A
Breaker Ratings	16A
Generator Compatability	Yes
Electrical Output
Output Receptacles	(8) IEC-320-C13 (1) IEC-320-C19
On Utility Voltage Regulation	±3% of nominal
On Battery Voltage Regulation	±3% of nominal
Voltage Wave Shape (On Battery)	Sine wave
Power Factor	0.9
Frequency Regulation	±3% Hz online
Load Crest Factor	3 to 1
