Eaton
Surplus New Eaton 5PX 5PX3000IRT2 3000 VA 2700 Watt 230V 2U Rack / Tower UPS
Surplus New Eaton 5PX 5PX3000IRT2 3000 VA 2700 Watt 230V 2U Rack / Tower UPS
Regular price
$ 1,199.99 USD
Regular price
$ 2,995.00 USD
Sale price
$ 1,199.99 USD
Unit price
per
Couldn't load pickup availability

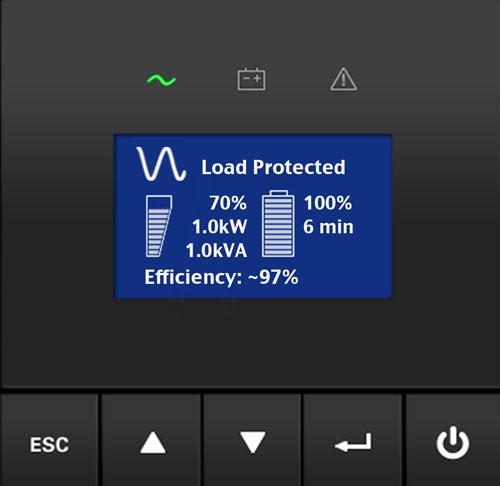

Combining extended runtime capabilities and exceptional efficiency, the Eaton 5PX UPS is a powerful enterprise class backup solution. An ENERGY STAR® qualified UPS, the 5PX’s managed outlet segments allow you to monitor energy consumption down to the outlet level on its intuitive LCD screen, while convenient virtualization-ready bundles and Intelligent Power Software Suite enable seamless management in virtualized environments.
| General | |
| Topology | Line interactive |

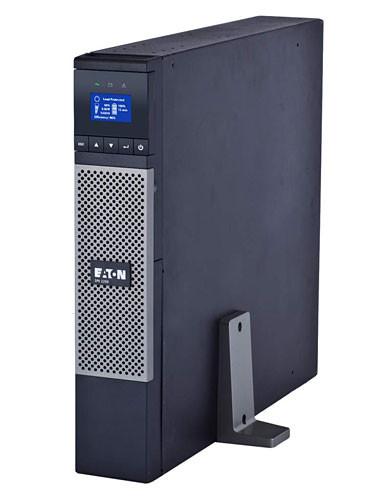

| Configuration | Rack/Tower |
| Catalog Number | 5PX3000iRT2U |
| Color | Black |
| Rating (VA/Watts) | 3000/2700 |
| Diagnostics | Full system self-test at power up |
| Dimensions (H x W x D, inches) | 3.4 x 17.4 x 25.5 |
| Dimensions (H x W x D, mm) | 86 x 441 x 647 |
| Weight (kg) | 38 |
| Weight (lbs) | 84 |
| Warranty | 3 years on electronics, 3 years on batteries with registration |
| Rail Kit Included | Tower stands and 4-post rail kit included |
| Contents (Ships with the following items) |
5PX3000iRT2U Four-post rail kit User manual CD Tower pedestals Intelligent Power Software Suite CD Quick start guide RS-232 serial cable USB cable 2 IEC to IEC jumper cables Phillips head screw driver |
| Efficiency | up to 99% |
| Electrical Input | |
| Connection |
(1) IEC-320-C20
|
| Input Voltage Range | 160–294 Vac (adjustable to 150–294 Vac) |
| Nominal Voltage | 230 Vac (adjustable to 200/208/220/230/240 Vac) |
| Frequency | 50/60 Hz (auto-sensing) |
| Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Input Power Factor | 0.9 |
| Electrical Output | |

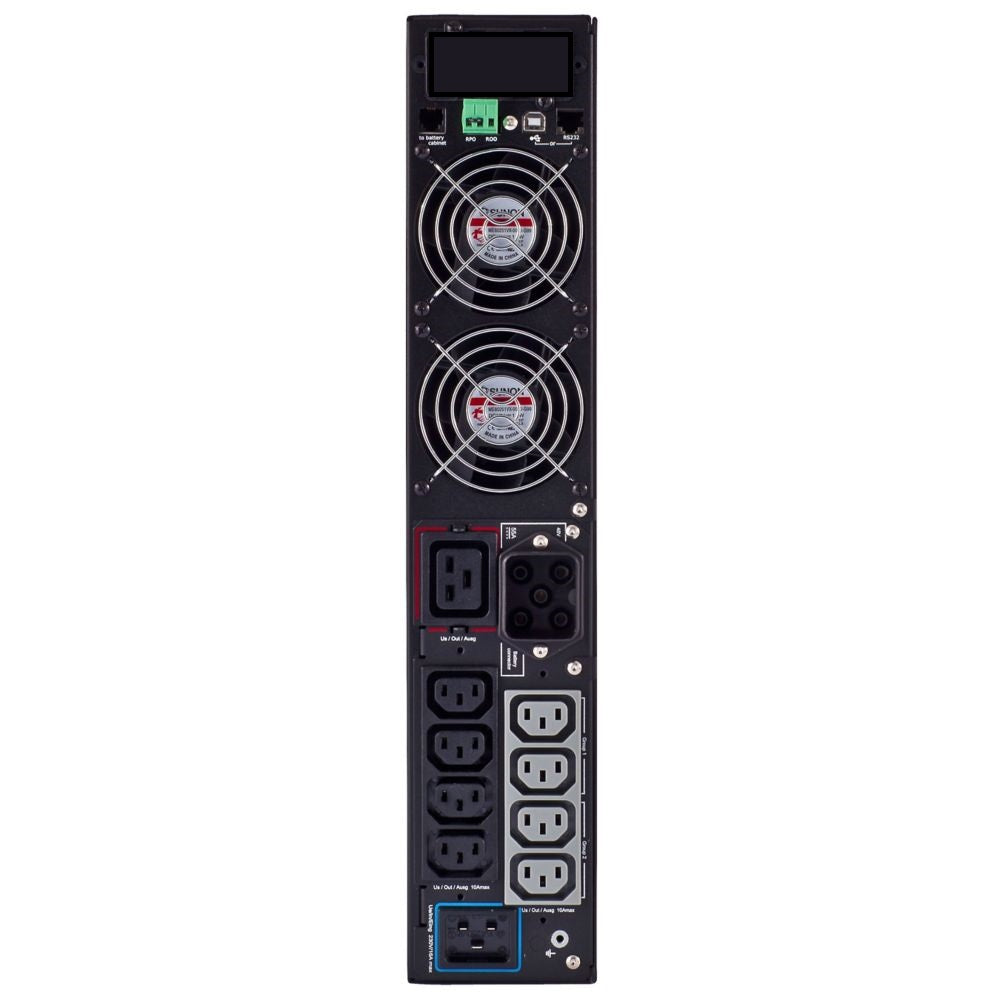

| Output Receptacles |
(8) IEC-320-C13
(1) IEC-320-C19
|
| On Utility Voltage Regulation | 184–265 Vac |
| On Battery Voltage Regulation | -10%, +6% of nominal |
| Output Frequency | 50/60 Hz ±0.1 % (autosensing) |
| Transfer Time | 1–4 ms typical |
| Load Segments | Group 1: (2) C13 outlets Group 2: (2) C13 outlets |
