Eaton

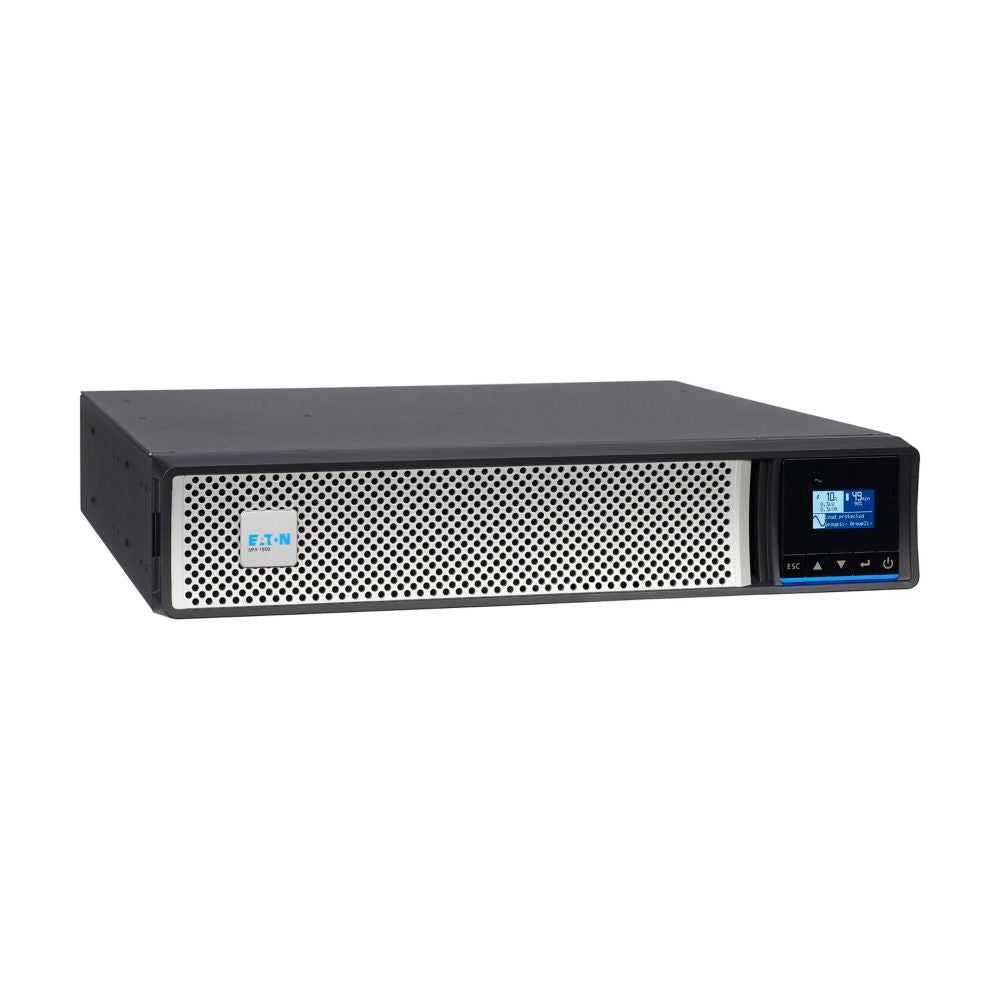

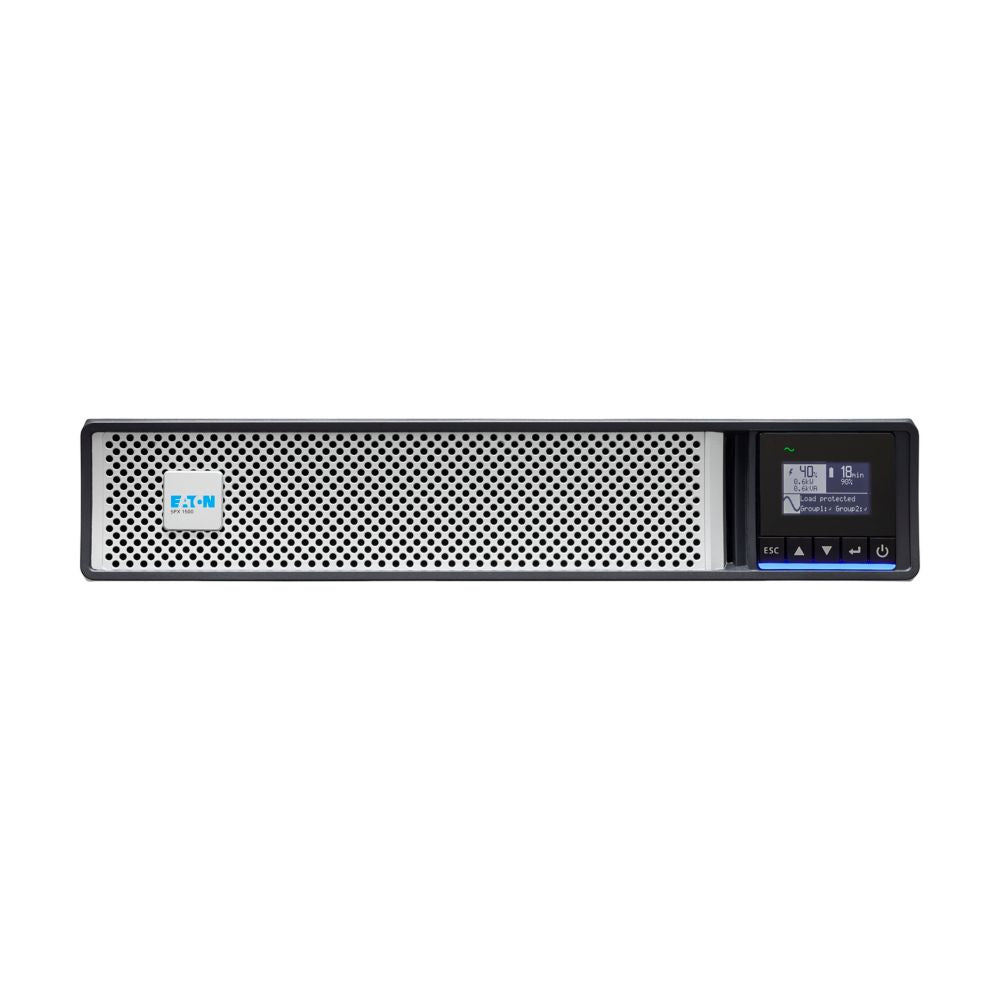

Eaton 5PX 5PX1500RTG2 1500 VA 1500 Watt 120V 2U Rack / Tower UPS

Eaton 5PX 5PX1500RTG2 1500 VA 1500 Watt 120V 2U Rack / Tower UPS

$ 1,143.00 USD
$ 1,143.00 USD
Sale Sold out
Eaton 5PX G2 UPS, 2U, 1440 VA, 1440 W, 5-15P input, Outputs: (8) 5-15R, 120V

Introducing the latest addition to Eaton's 5 series UPS line, the Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. With select 2 and 3 kVA models, the 5PX G2 UPS offers a reduced depth that conserves space for high density wallmount rack installations.

Applications include: Enterprise and distributed IT, telecom, retail, banks, IDF, small business, long runtime needs.

Connected equipment may include: Servers (including VoIP), storage, networking equipment, switches (including PoE) and other IT equipment.



General specifications

Product Name
Eaton 5PX G2 UPS
Catalog Number
5PX1500RTG2
UPC
743172105776
Product Length/Depth
17.6 in
Product Height
3.4 in
Product Width
17.2 in
Product Weight
50.7 lb
Warranty
3 year on electronics, 3 year on batteries with registration
Compliances
CE Marked
REACH
Certifications
CULus
RoHS
NOM
ENERGY STAR certified
IEC 62040-1

Product specifications

Special features

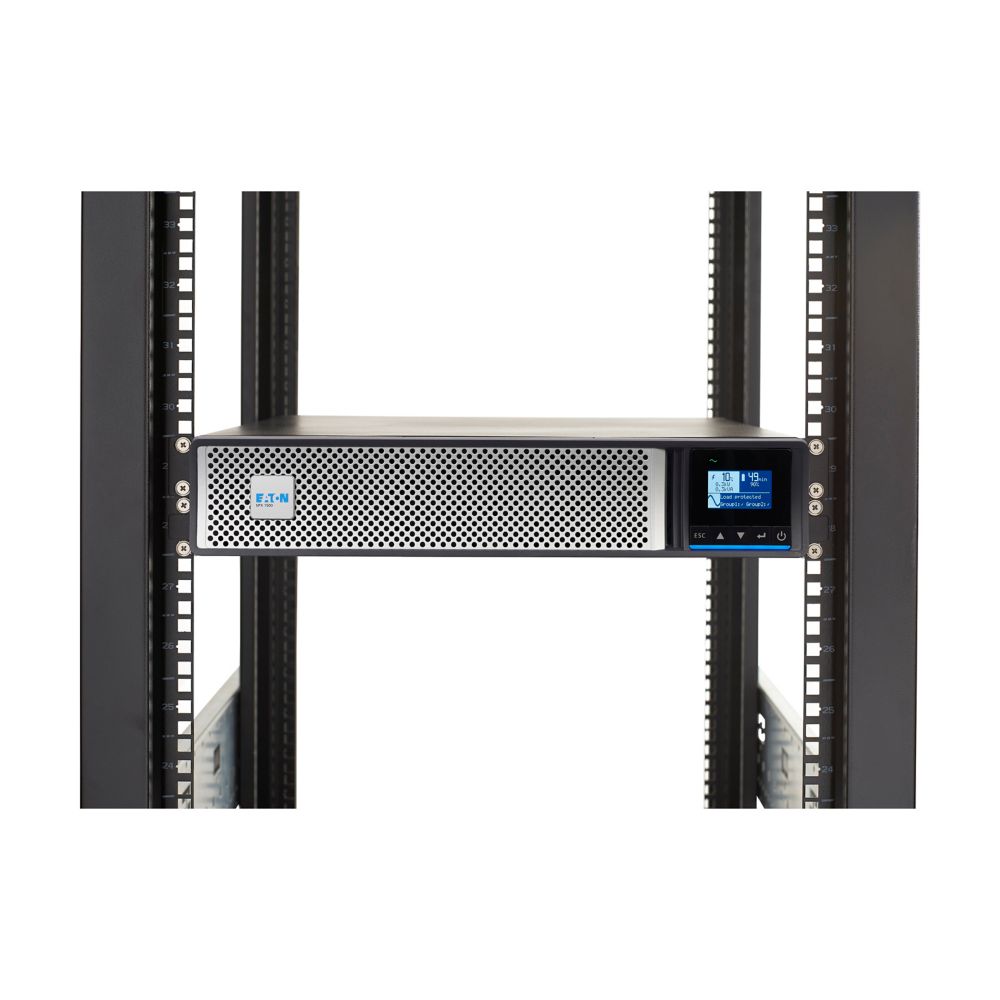

UPS ship-in-rack option for integration into packaged deployments simplifying set up and getting you online quicker (available with the RK4PRS 4-post rail kit)
Topology
Line-interactive
Form factor
Rack/tower
Rack size
2U
Color
Black
VA rating
1440 VA
Wattage
1440 W
Package contents
  • 5PX1500RTG2 UPS
  • Tower pedestal feet
  • Four-post rail kit
  • Quick start guide
  • Safety guide
  • USB cable
  • RS-232 cable
Input connection
5-15P
Input cord length
10 ft
Input nominal voltage
120V
Nominal frequency
50/60 Hz
Input power factor
1
Receptacle
(8) 5-15R
Runtime graph

Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Battery replacement
User replaceable
Battery type
Sealed, lead-acid

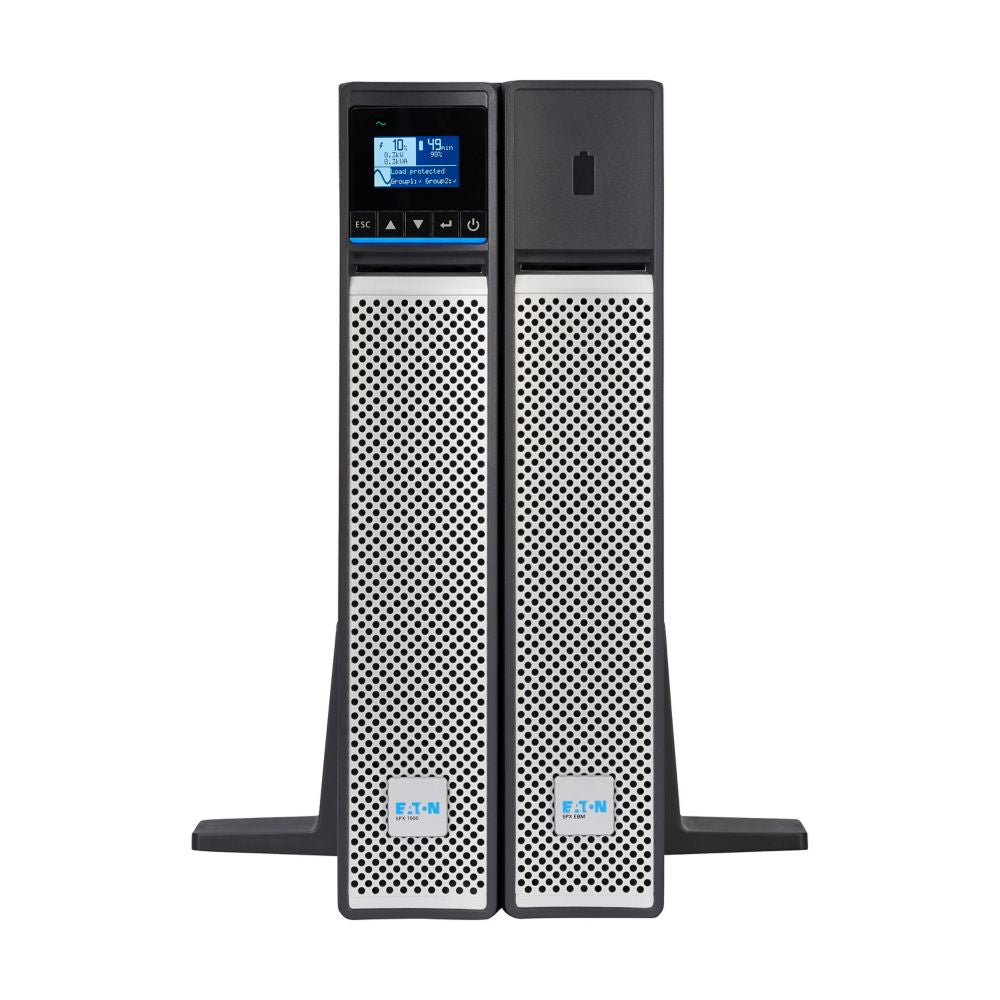

Extended battery capability
Add up to 4 extended battery modules (EBM). Part number 5PXEBM48RTG2
Standard factory warranty
  • 3-year factory warranty with regsitration
  • -3 years
  • -Parts, electronics and batteries coverage
  • -Standard ground shipping
  • -Technical support
Extended service plans
  • ADVANCED DEPOT EXCHANGE
  • -5-YEAR DEPOT REPAIR: 5SW5Y-1750UC
  • -Expedited parts coverage for 5 years
  • -Parts, electronics and UPS batteries coverage
  • -Next business day shipping
  • -Technical support
  • ON-SITE 24X7, NEXT DAY RESPONSE
  • 2 YEAR UPGRADE: WUN72XXX-2509UC
  • -On-site expedited parts and labor coverage for first 2 years
  • -Parts, electronics and UPS batteries coverage
  • -Eaton on-site labor coverage
  • -24x7 coverage, next day response
  • -Next day shipping
  • -Technical support
  • 3 YEAR FLEX PLAN: FLN73XXX-2509UC
  • -On-site parts and labor coverage for years 3 to 5
  • -Parts, electronics and UPS batteries coverage
  • -24x7 on-site labor coverage, next day response
  • -Next day shipping
  • -Technical support
Expansion slots
One slot
Software compatibility
Brightlayer Data Centers suite
User interface
LCD graphical display
BTU Rating
Online: 106, Battery: 699
Efficiency
98%
