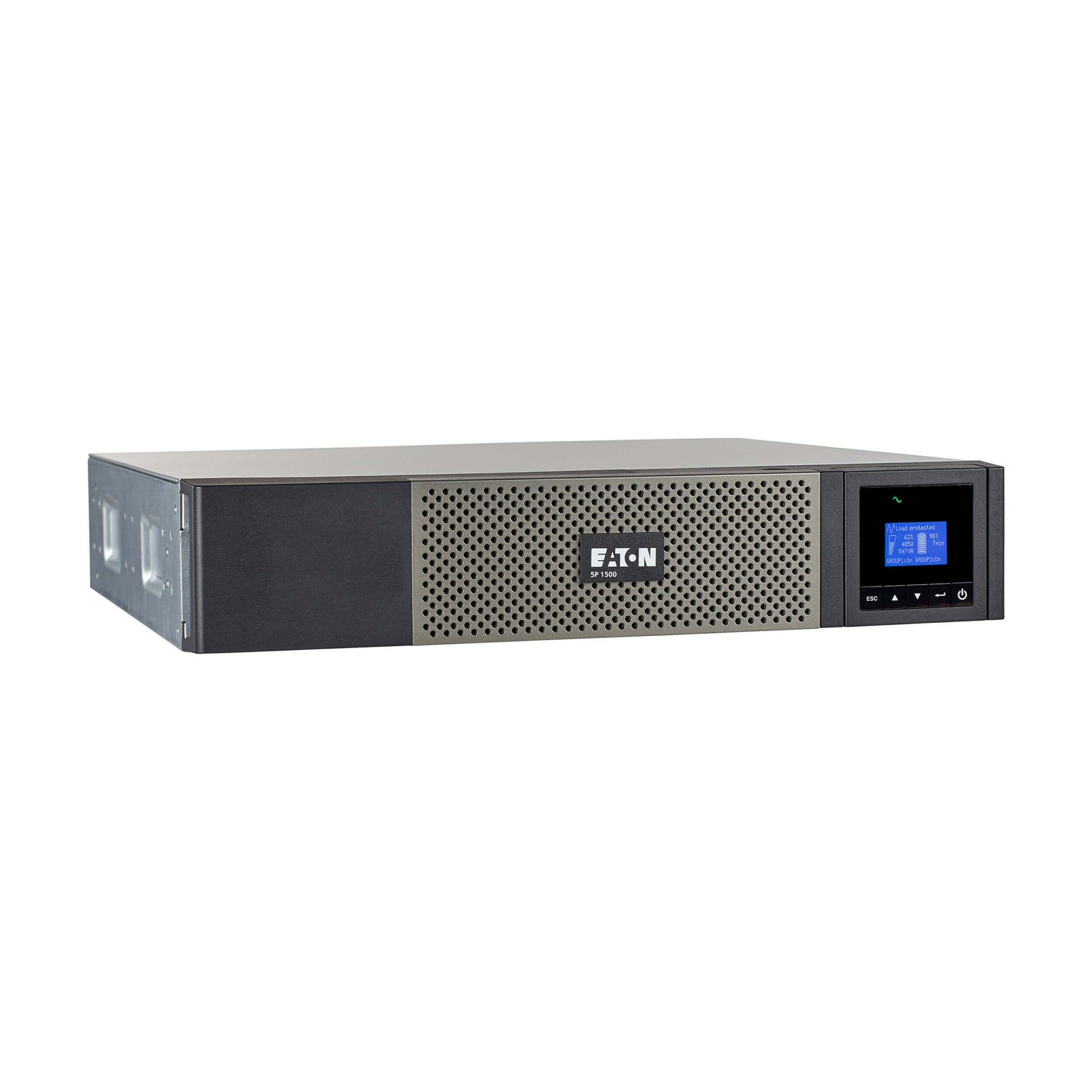

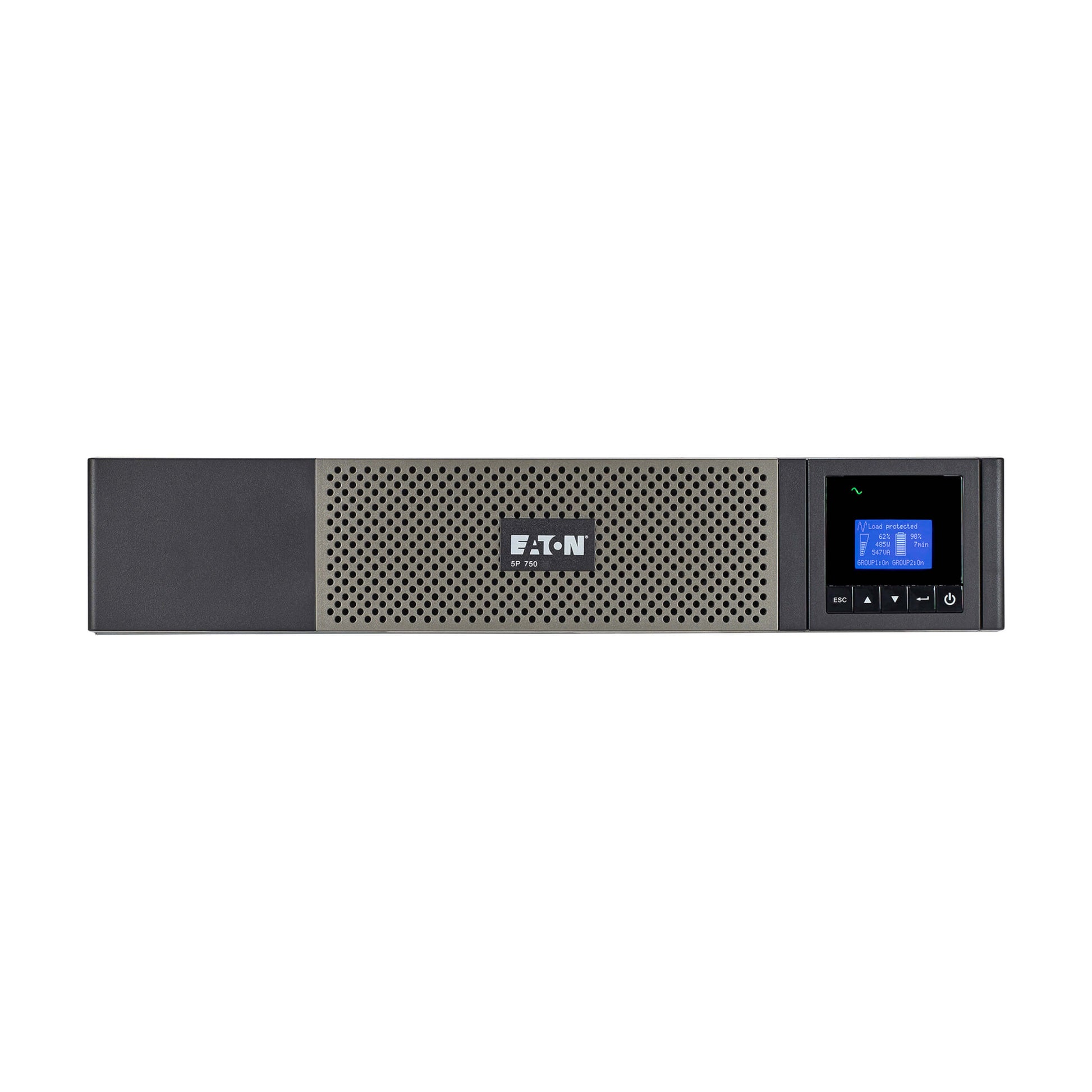

Eaton 5P 5P1000RC 750VA 600 Watt 120V 2U Compact Rackmount UPS

Eaton 5P 5P1000RC 750VA 600 Watt 120V 2U Compact Rackmount UPS

$ 782.00 USD
$ 782.00 USD
Sale Sold out

Provides enterprise-class battery backup and pure sine wave output for servers, switches, data storage and other critical networking equipment.

  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Provides 20% more wattage compared to traditional UPS systems to protect devices
  • Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
  • 5-button graphical LCD offers critical UPS data and load status at a glance
  • Optional NETWORK-M2 Gigabit network card enables full remote access and control
  • 3-year limited warranty



GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P1000RC
UPC
743172088277
PRODUCT LENGTH/DEPTH
16 in
PRODUCT HEIGHT
3.4 in
PRODUCT WIDTH
17.4 in
PRODUCT WEIGHT
33 lb
WARRANTY
3 year on electronics, 3 year on batteries with registration
COMPLIANCES
CE Marked
RoHS Compliant
CERTIFICATIONS
cULus Listed
UL 1778
IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
UL 497A

BATTERY

RUNTIME GRAPH

BATTERY MANAGEMENT
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)

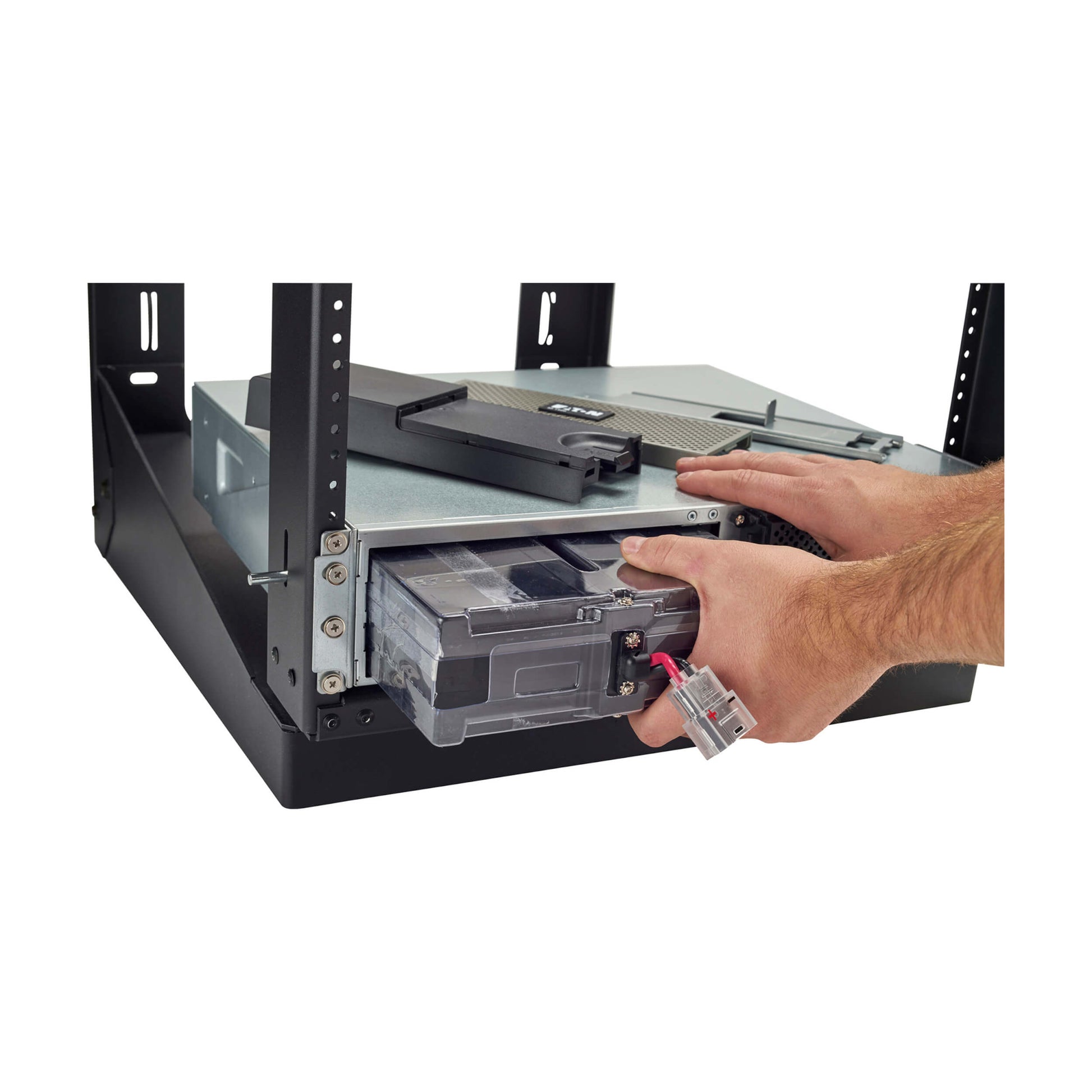

BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Sealed, lead-acid
EXTENDED BATTERY CAPABILITY
None; See Eaton 5PX G2 UPS for extended runtimes options

ELECTRICAL OUTPUT

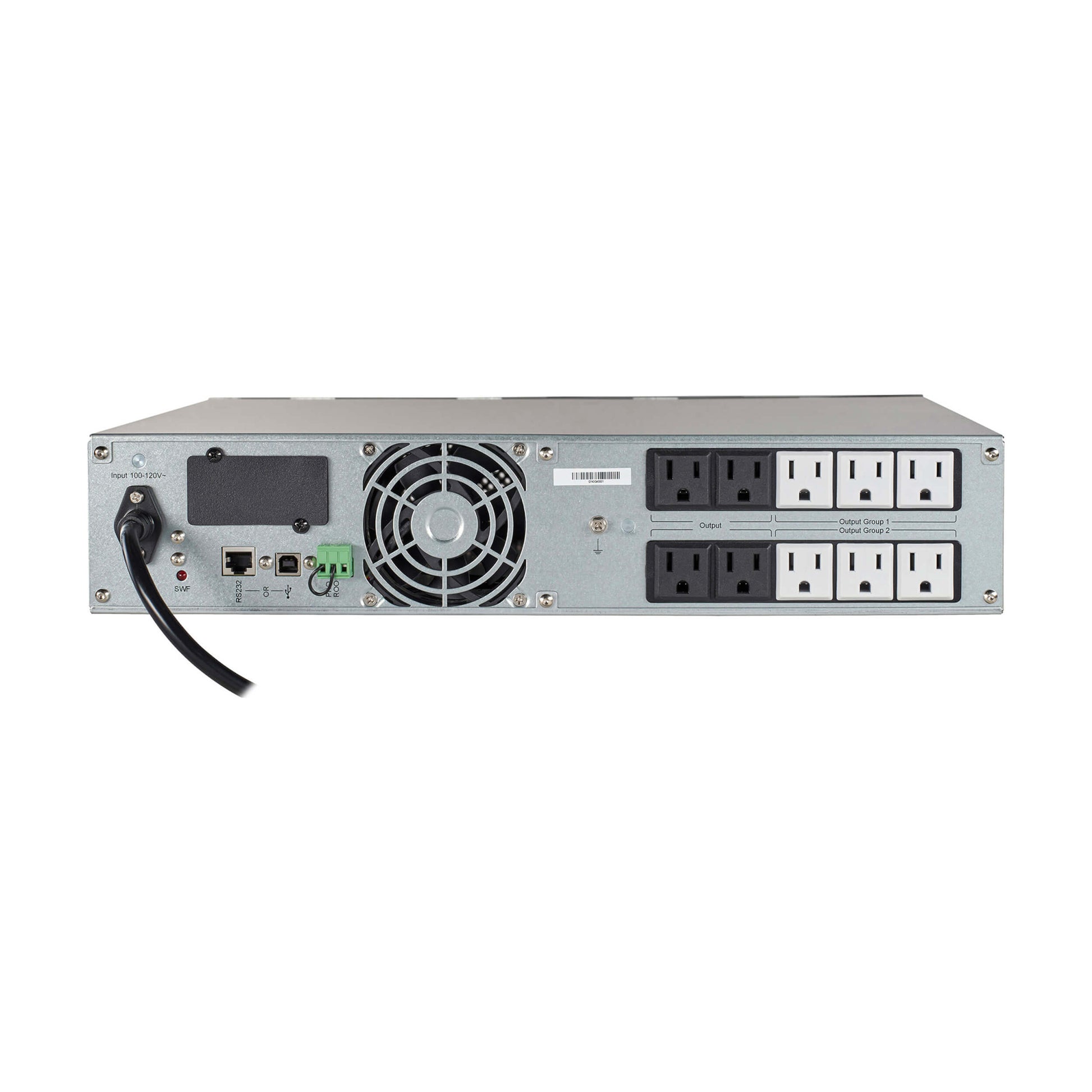

RECEPTACLE
(10) 5-15R
TOPOLOGY
Line-interactive
WATTAGE
770 W
VA RATING
1000 VA
OUTPUT WAVEFORM
Sine wave
VOLTAGE
120V
OUTPUT POWER FACTOR
0.77
OUTPUT NOMINAL VOLTAGE
120V default (100/120/125V)
OUTPUT VOLTAGE RANGE
102-132 Vac
FEED TYPE
1

ELECTRICAL INPUT

INPUT CONNECTION
5-15P
INPUT CORD LENGTH
6 ft
INPUT NOMINAL VOLTAGE
120V default (100/110/120/125V)
INPUT VOLTAGE RANGE
89-151 Vac (adjustable to 70-153 Vac)
NOMINAL FREQUENCY
50-60 Hz
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
INPUT POWER FACTOR
0.77

COMMUNICATIONS

COMMUNICATION
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
EXPANSION SLOTS
One slot; Gigabit Network Card (Network-M3) is optional
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager
USER INTERFACE
LCD graphical display

ENVIRONMENTAL

ALTITUDE
Up to 10,000 ft (3000m) without de-rating
BTU RATING
Online: 106, Battery 500
NOISE LEVEL
<45 dB at 1 meter
RELATIVE HUMIDITY
0-90% non-condensing
TEMPERATURE RANGE
0° to 35°C (32° to 95°F)

ADDITIONAL SPECIFICATIONS

FORM FACTOR
Compact
RACK SIZE
2U
RACK MOUNTING KIT
Yes
EFFICIENCY
95.9%
PACKAGE CONTENTS
  • 5P rackmount compact UPS
  • Quick start guide
  • USB cable
  • RS-232 serial cable

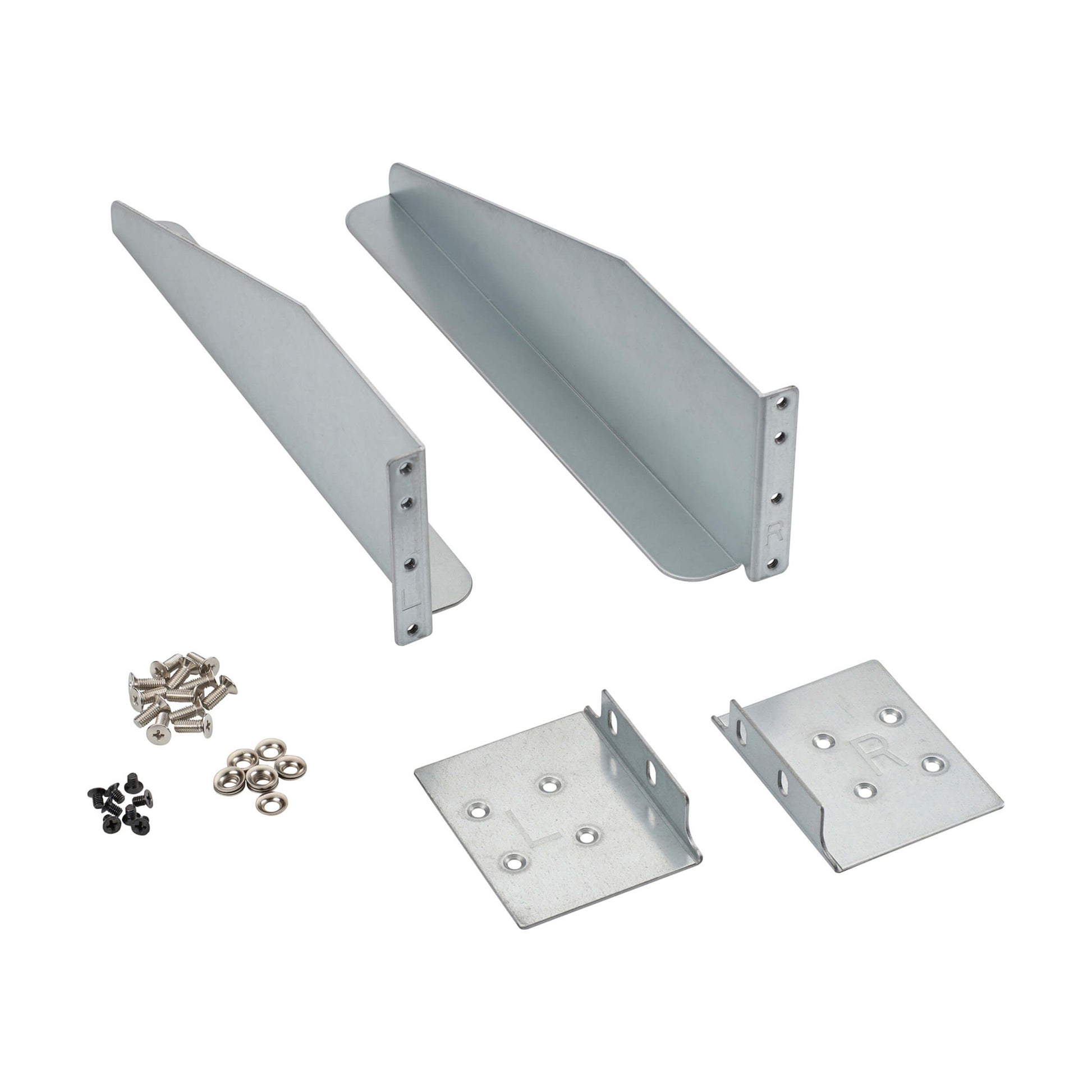

  • Multi-purpose rail kit

WARRANTY AND SUPPORT

STANDARD FACTORY WARRANTY
  • 3-YEAR FACTORY WARRANTY w/ REGISTRATION
  • -3 years
  • -Parts, electronics, and batteries coverage
  • -Standard ground shipping
  • -Technical support
EXTENDED SERVICE PLANS
  • ADVANCED DEPOT EXCHANGE
  • -5-YEAR DEPOT REPAIR: 5SW5Y-1400UC
  • -Expedited parts coverage for 5 years
  • -Parts, electronics and UPS batteries coverage
  • -Next business day shipping
  • -Technical support
  • 5-YEAR ON-SITE PLAN: WFLN75XX-2509UC
  • - On-site parts and labor coverage for years 5
  • - Parts, electronics and UPS batteries coverage
  • - 24x7 on-site labor coverage, next-day response
  • - Next-day shipping
  • - Technical support
