Eaton

Eaton 5P 5P1500R-L 1440 VA 1100 Watt 120V 1U Lithium Ion Rackmount UPS

Eaton 5P 5P1500R-L 1440 VA 1100 Watt 120V 1U Lithium Ion Rackmount UPS

$ 2,142.00 USD
$ 2,142.00 USD
Sale Sold out

Provides enterprise-class battery backup and pure sine wave output for servers, switches, data storage and other critical networking equipment.

  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Improved lithium-ion batteries have lifespan up to 3 times longer - set it and forget it!
  • 3 times faster recharge after power disruptions reduces vulnerability, improves uptime
  • Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
  • Optional NETWORK-M2 Gigabit network card enables full remote access and control
  • 5-year limited warranty

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P1500R-L
UPC
743172091901
PRODUCT LENGTH/DEPTH
21.8 in
PRODUCT HEIGHT
1.7 in
PRODUCT WIDTH
17.4 in
PRODUCT WEIGHT
35 lb
COMPLIANCES
RoHS Compliant
REACH
CERTIFICATIONS
UL 1778
cULus Listed
IEC 62040-2:2006 Cat C2
CE

BATTERY

RUNTIME GRAPH

BATTERY MANAGEMENT
Integrated battery management system (BMS) for temperature regulation and life cycle monitoring

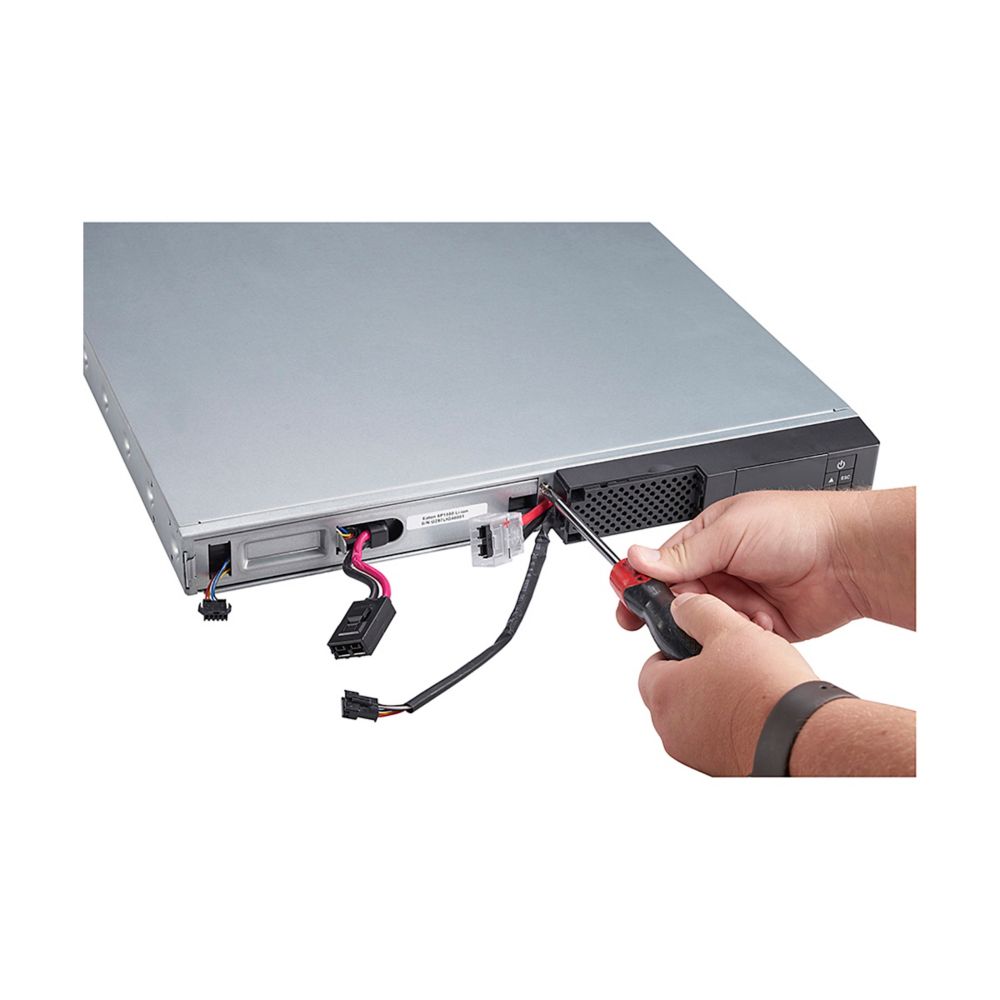

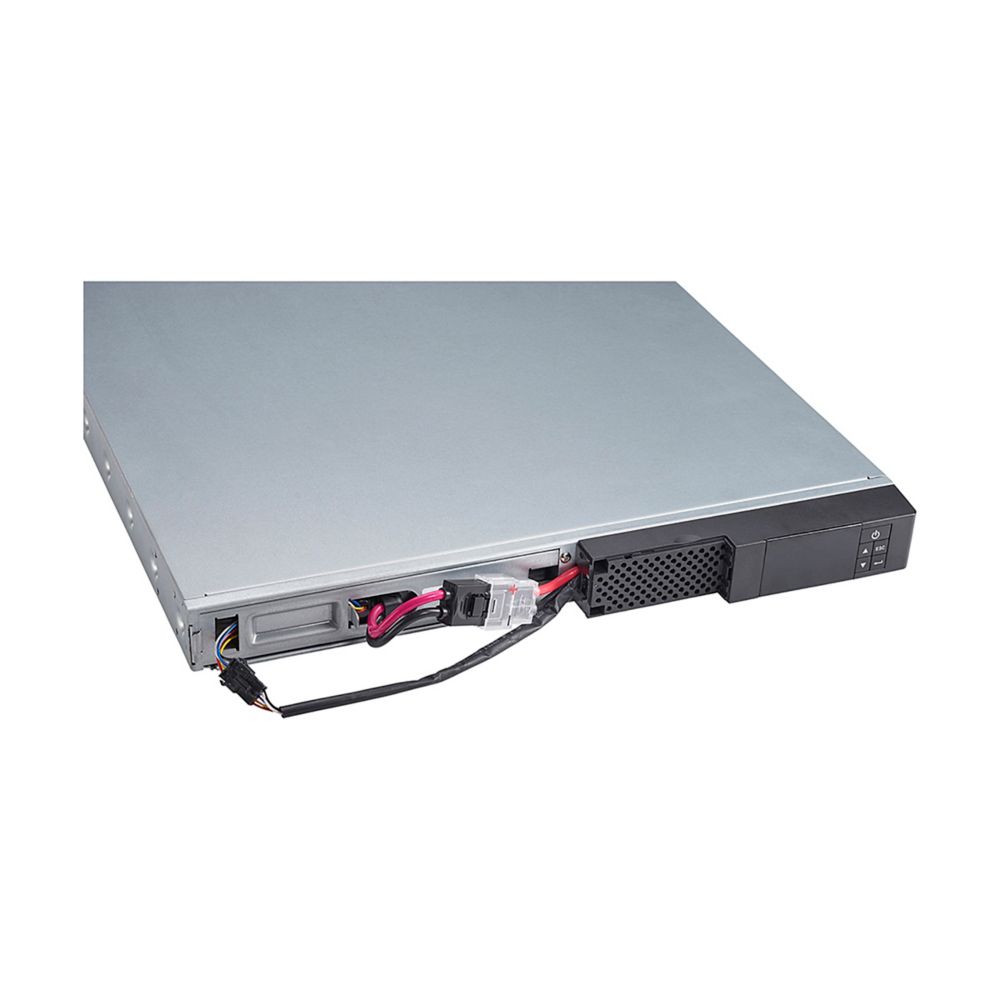

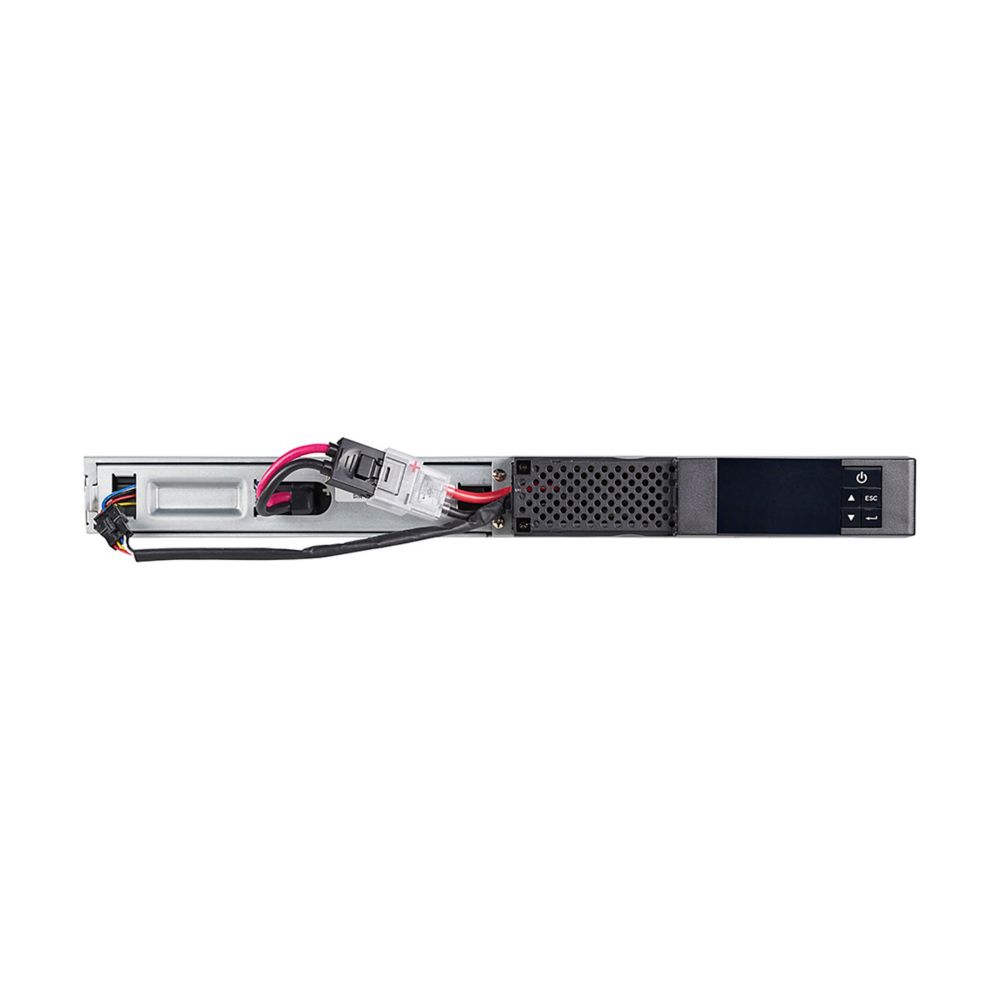

BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lithium-ion
EXTENDED BATTERY CAPABILITY
None; See Eaton 5PX UPS for extended runtimes options

ELECTRICAL OUTPUT

RECEPTACLE
(5) 5-15R
TOPOLOGY
Line-interactive
WATTAGE
1100 W
VA RATING
1440 VA
OUTPUT WAVEFORM
Sine wave
VOLTAGE
120V
OUTPUT NOMINAL VOLTAGE
120V default (100/120/125V)
OUTPUT VOLTAGE RANGE
102-132 Vac
FEED TYPE
1

ELECTRICAL INPUT

INPUT CONNECTION
5-15P
INPUT CORD LENGTH
6 ft
INPUT NOMINAL VOLTAGE
120V default (100/110/120/125V)
INPUT VOLTAGE RANGE
89-151 Vac (adjustable to 70-153 Vac)
NOMINAL FREQUENCY
50-60 Hz
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode

COMMUNICATIONS

COMMUNICATION
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
EXPANSION SLOTS
One slot; Gigabit Network Card (Network-M2) is optional
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager
USER INTERFACE
LCD graphical display

ENVIRONMENTAL

ALTITUDE
Up to 10,000 ft (3000m) without de-rating
BTU RATING
Online: 113, Battery 714
NOISE LEVEL
<45 dB at 1 meter
RELATIVE HUMIDITY
0-85% non-condensing
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)

ADDITIONAL SPECIFICATIONS

SPECIAL FEATURES
ROO/RPO: Rear terminal block connector for remote on/off and power off
FORM FACTOR
Rack
RACK SIZE
1U
RACK MOUNTING KIT
Yes
EFFICIENCY
98%
PACKAGE CONTENTS
  • UPS
  • Quick start guide
  • Safety instructions

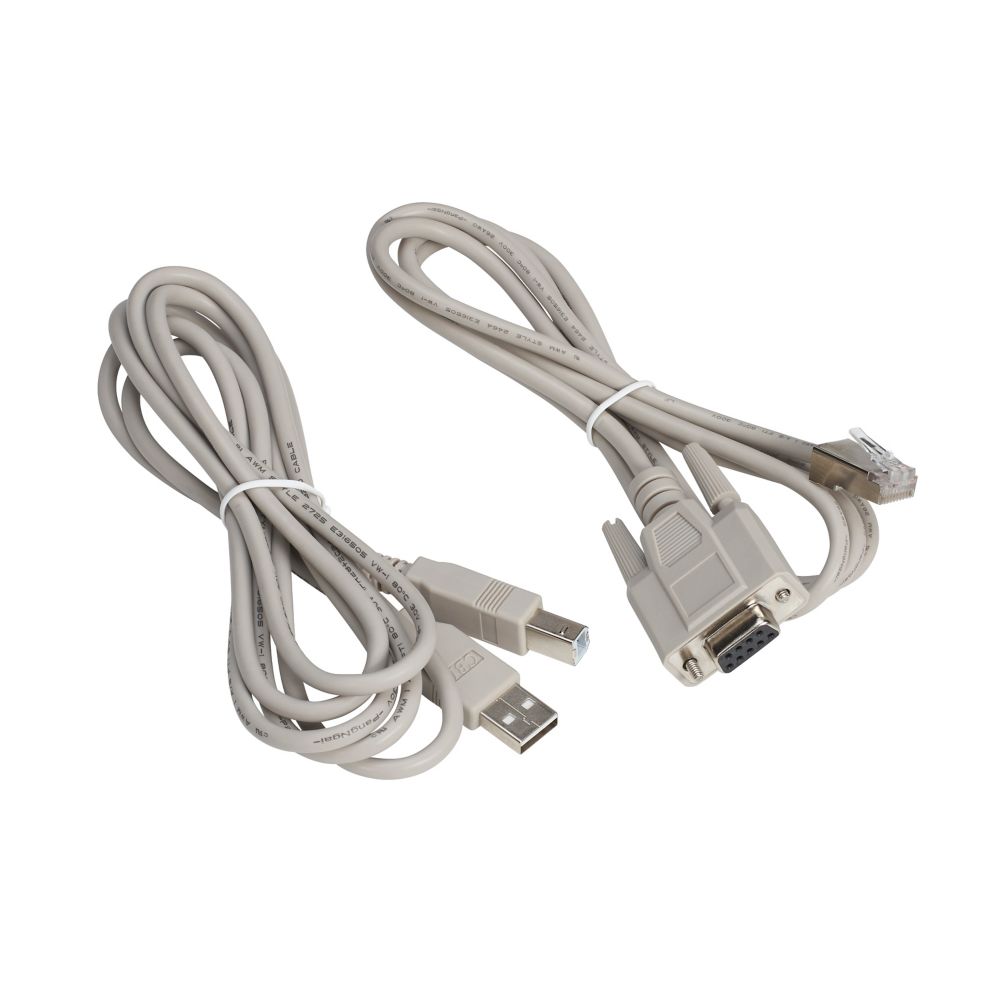

  • USB communciation cable
  • RS-232 serial communication cable

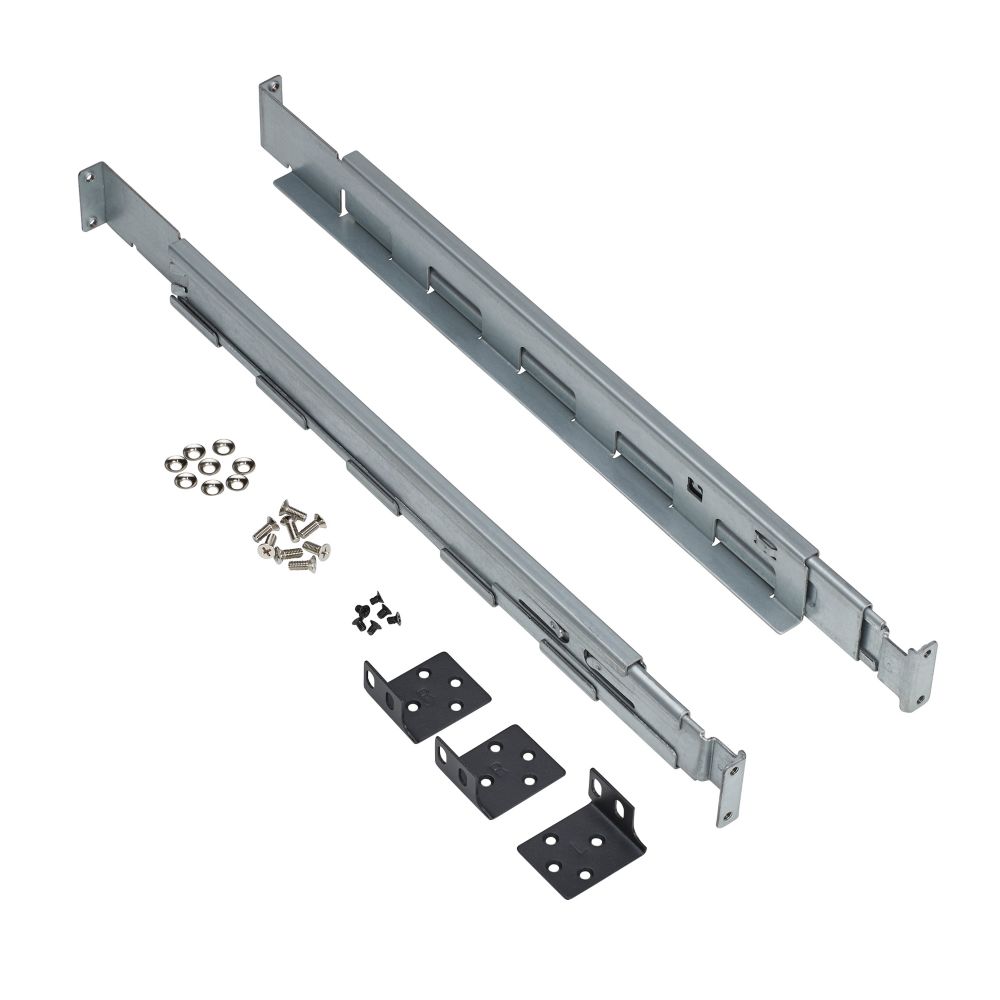

  • 4-post rail and wallmount kit

WARRANTY AND SUPPORT

STANDARD FACTORY WARRANTY
  • 5-YEAR FACTORY WARRANTY
  • -5 years
  • -Parts, electronics, and batteries coverage
  • -Standard ground shipping
  • -Technical support



View full details
