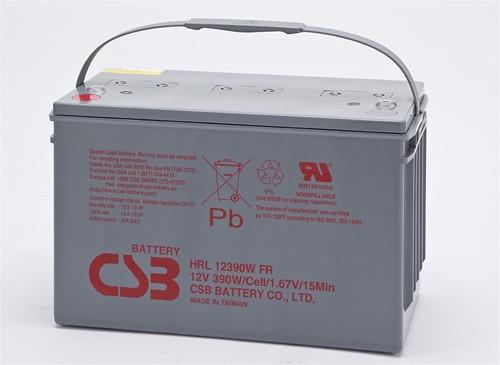

CSB HRL12390WFR 12V 390W/Cell Battery w/Recessed Terminal
CSB HRL12390WFR 12V 390W/Cell Battery w/Recessed Terminal
Regular price
$ 269.99 USD
Regular price
Sale price
$ 269.99 USD
Unit price
per
Couldn't load pickup availability
Approximate Dimensions: 8.56" H x 13.50" L x 6.69" W |
 Specification |
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 390W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
| Weight | Approx. 33.0kg (72.75 lbs) |
| Maximum Discharge Current | 800A(5sec) |
| Internal Resistance Approx. | Approx. 3.1 mΩ |
| Operating Temperature Range | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range | 25℃±3℃ (77°F±5°F) |
| Float Charging Voltage | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
| Recommended Maximum Charging Current Limit | 39A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal | I2-Thread lead alloy recessed terminal to accept M6/M8 bolt |
| Container Material | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
|
|
Dimensions |
|
| Constant Current Discharge Characteristics Unit:Amperes (25°C,77°F) |
| F.V/Time | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 589.00 | 499.00 | 423.00 | 362.00 | 315.00 | 239.00 | 192.00 | 140.00 | 79.60 | 57.10 |
| 1.67V | 532.00 | 456.00 | 386.00 | 334.00 | 298.00 | 230.00 | 186.00 | 138.00 | 78.90 | 56.80 |
| 1.70V | 504.00 | 428.00 | 367.00 | 320.00 | 288.00 | 224.00 | 183.00 | 137.00 | 78.20 | 56.40 |
| 1.75V | 463.00 | 384.00 | 330.00 | 296.00 | 266.00 | 212.00 | 174.00 | 132.00 | 76.70 | 55.70 |
| 1.80V | 382.00 | 330.00 | 296.00 | 266.00 | 239.00 | 197.00 | 163.00 | 125.00 | 73.80 | 54.20 |
| 1.85V | 296.00 | 285.00 | 253.00 | 228.00 | 210.00 | 175.00 | 147.00 | 114.00 | 68.80 | 51.20 |
| Constant Power Discharge Characteristics Unit:Watts (25°C,77°F) |
| F.V/Time | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 5767.00 | 4830.00 | 4188.00 | 3683.00 | 3299.00 | 2550.00 | 2083.00 | 1566.00 | 913.00 | 666.00 |
| 1.67V | 5312.00 | 4557.00 | 3919.00 | 3518.00 | 3141.00 | 2483.00 | 2039.00 | 1545.00 | 906.00 | 663.00 |
| 1.70V | 5049.00 | 4348.00 | 3787.00 | 3434.00 | 3048.00 | 2440.00 | 2010.00 | 1529.00 | 900.00 | 660.00 |
| 1.75V | 4583.00 | 3970.00 | 3555.00 | 3190.00 | 2861.00 | 2348.00 | 1943.00 | 1488.00 | 885.00 | 653.00 |
| 1.80V | 4044.00 | 3587.00 | 3253.00 | 2893.00 | 2641.00 | 2215.00 | 1843.00 | 1423.00 | 858.00 | 639.00 |
| 1.85V | 3486.00 | 3160.00 | 2804.00 | 2576.00 | 2412.00 | 2006.00 | 1690.00 | 1328.00 | 812.00 | 609.00 |
